IGAP-100 Solenoid common rail injectors Tester
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details

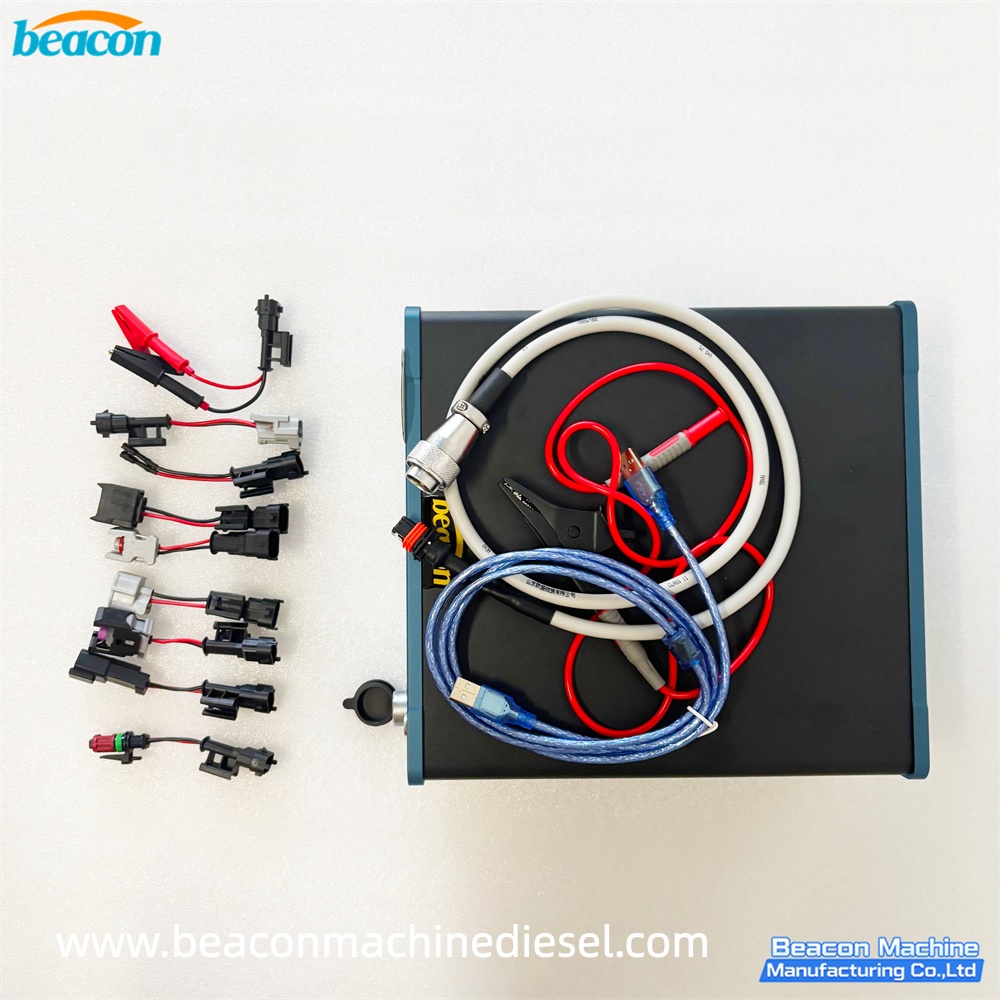

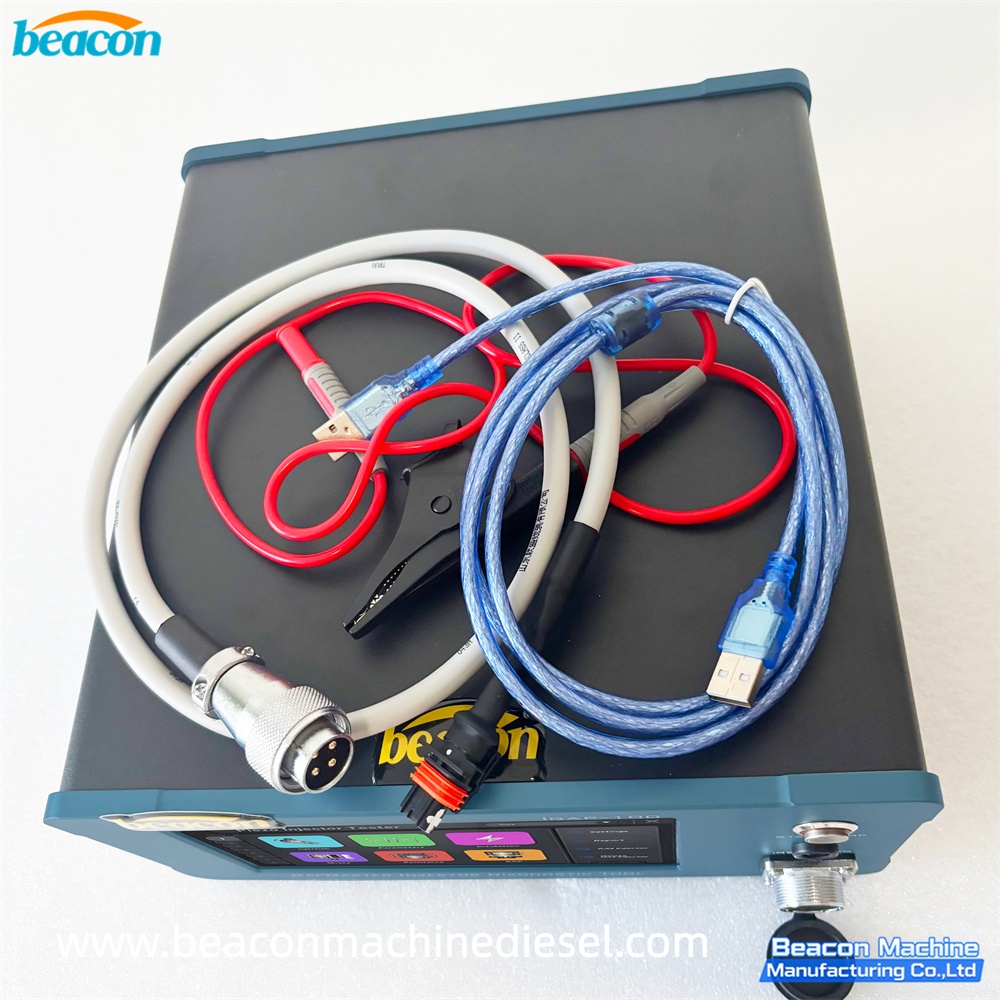

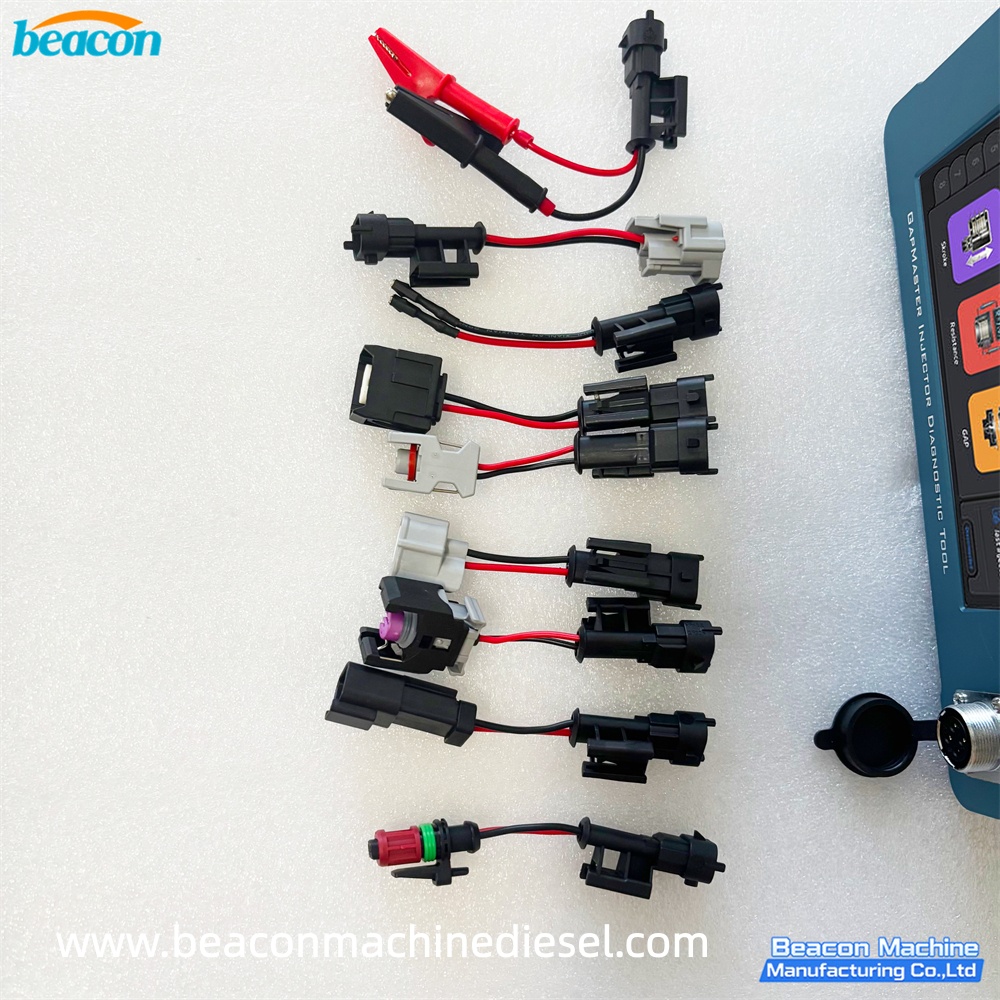

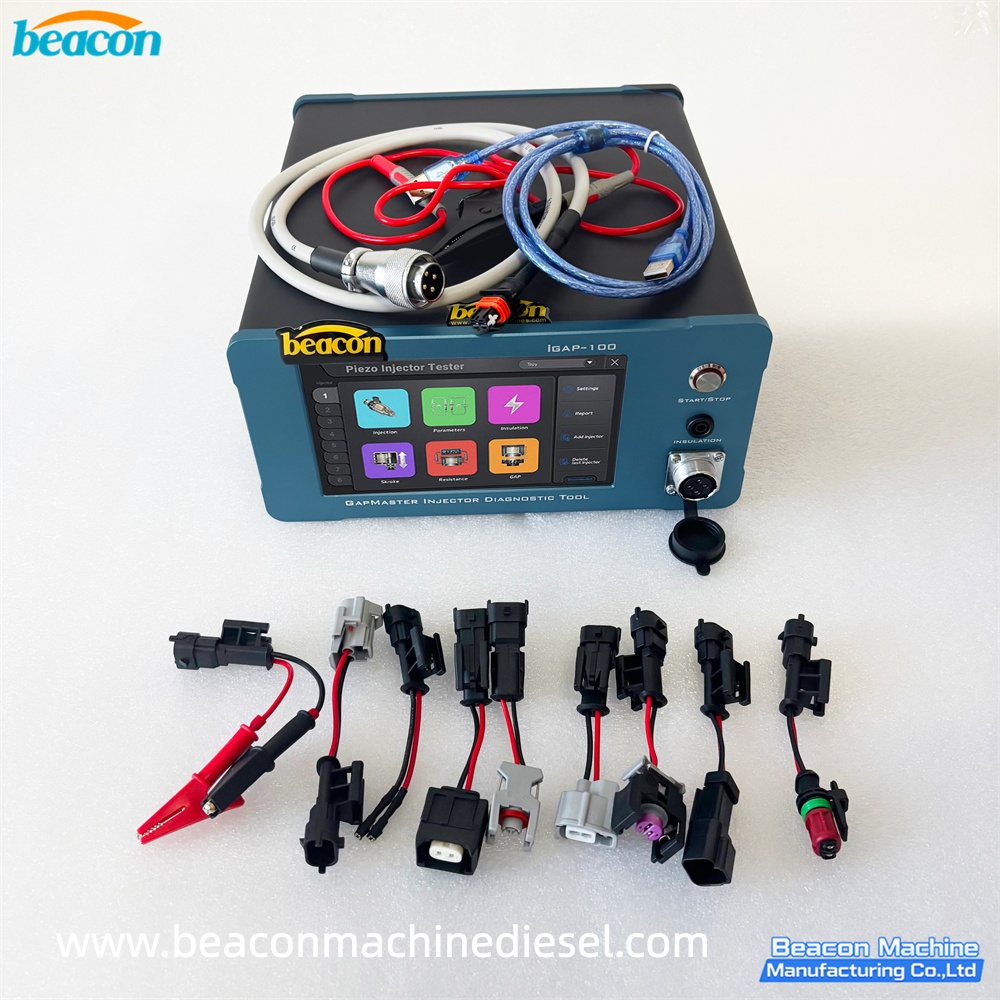

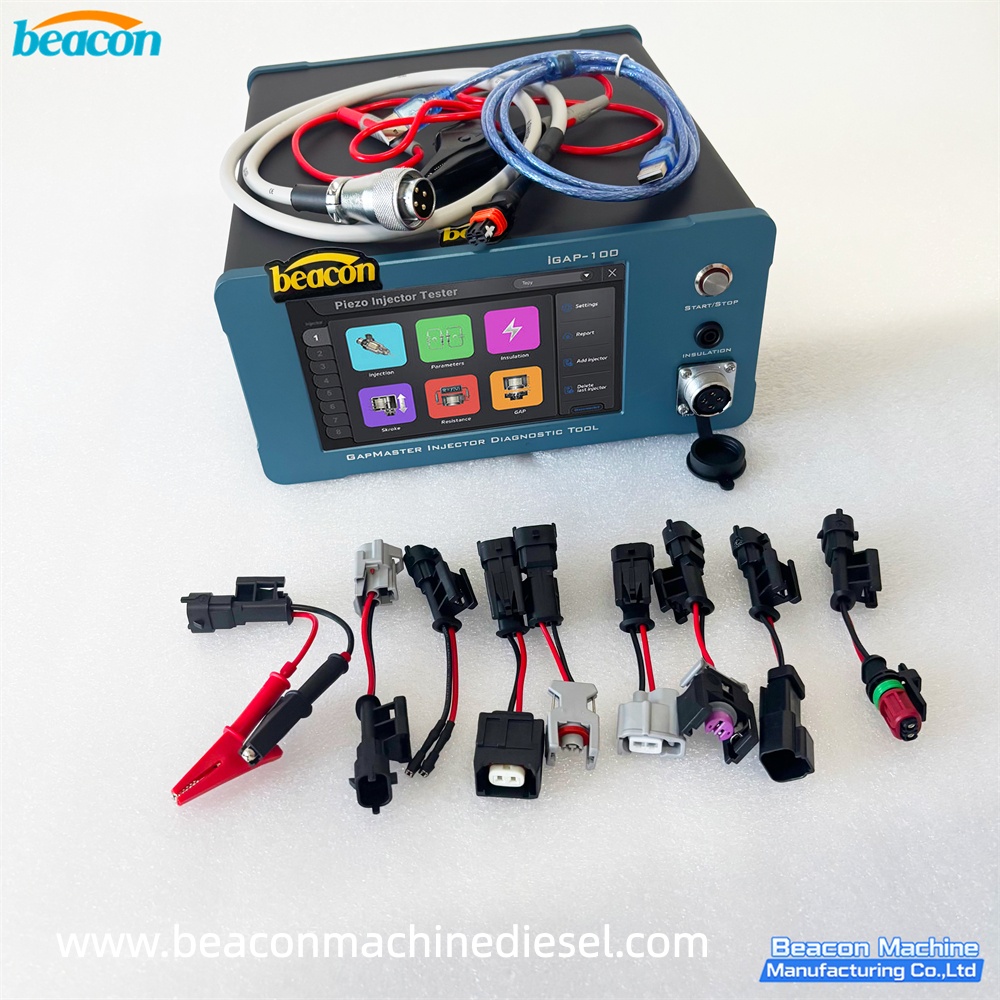

IGAP-100 Solenoid common rail injectors Tester
1. Six core test modes: - Injector drive test - BIP closing time test - AHE dynamic armature stroke test - Resistance & Inductance measurement - High‑voltage insulation test - Armature air‑gap (GAP) test
2. 7‑inch HD touch screen, embedded system, work offline without PC
3. Local storage for up to 8 injectors data for comparison
4. Over‑current & short‑circuit protection, emergency stop button 5. Global wide voltage AC 100‑240V
1. Six core test modes: - Injector drive test - BIP closing time test - AHE dynamic armature stroke test - Resistance & Inductance measurement - High‑voltage insulation test - Armature air‑gap (GAP) test
2. 7‑inch HD touch screen, embedded system, work offline without PC
3. Local storage for up to 8 injectors data for comparison
4. Over‑current & short‑circuit protection, emergency stop button 5. Global wide voltage AC 100‑240V
IGAP-100 Solenoid common rail injectors Tester Advantage
parameter
| Item | Parameter |
|---|---|
| Test Subject | Solenoid Common‑Rail Injector |
| Display | 7‑inch HD touchscreen |
| Injection Frequency | 1‑30 Hz |
| Pulse Width | 0‑6000 μs |
| Power Supply | AC 100‑240V |
| Dimension | 300 × 255 × 125 mm |
| Gross Weight | ≈5.0 kg |
