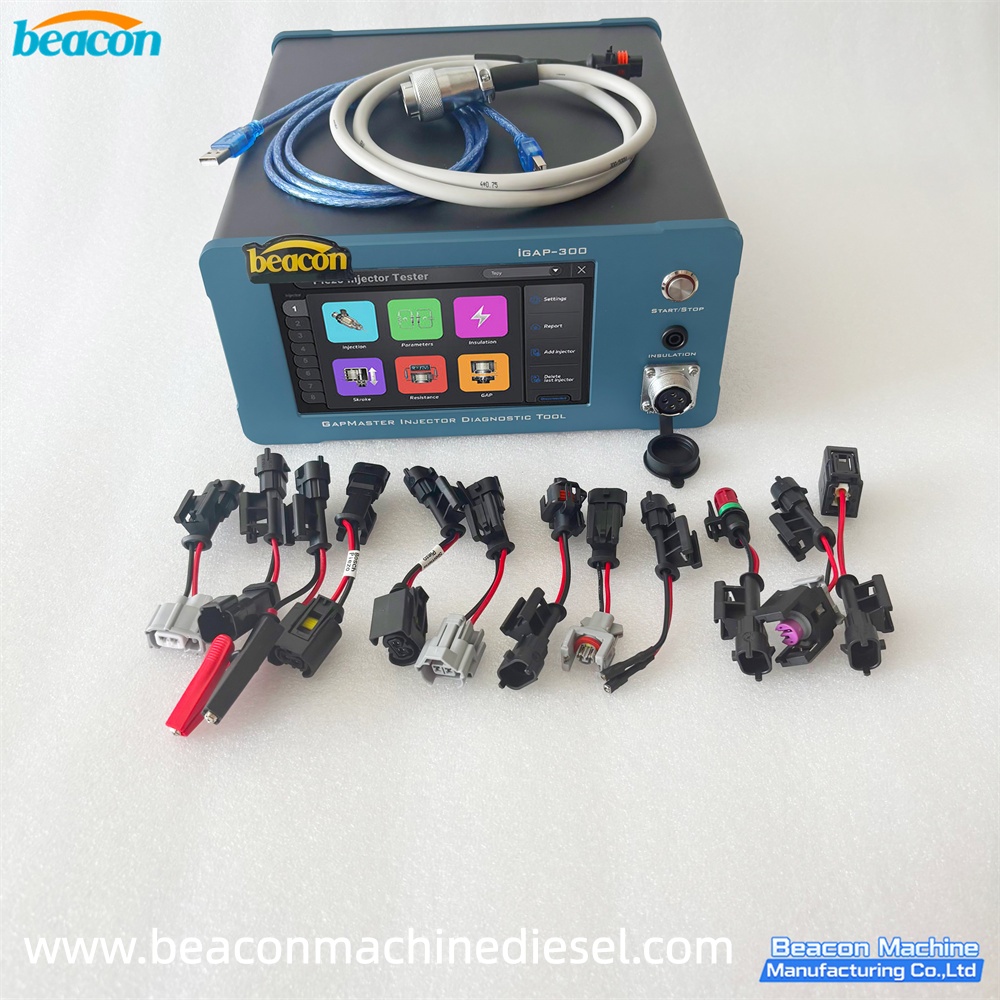

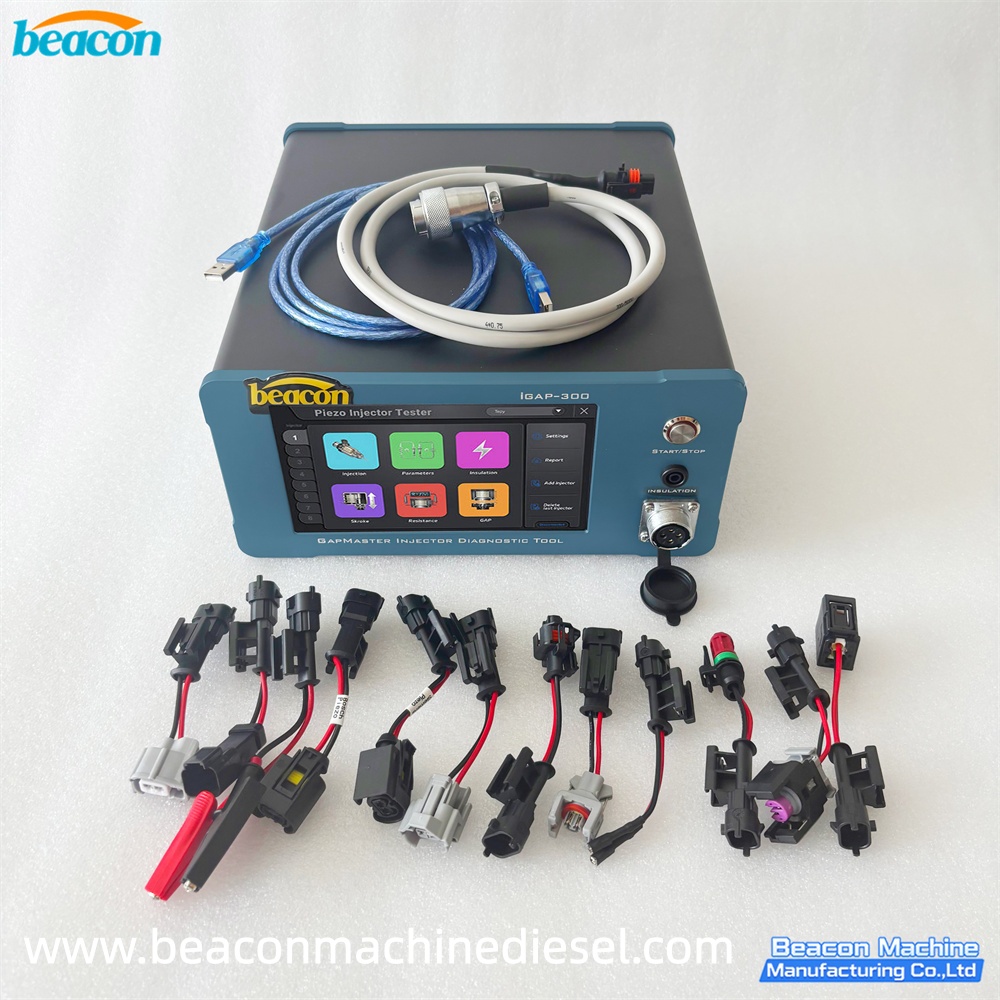

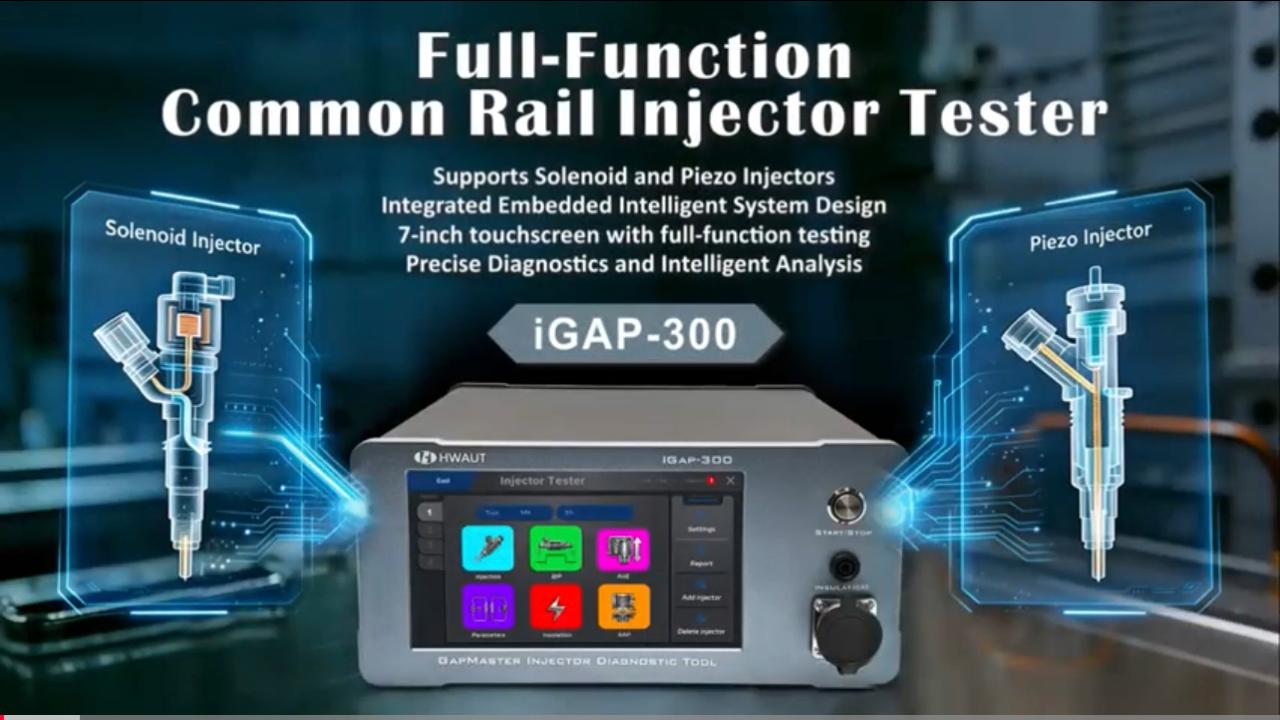

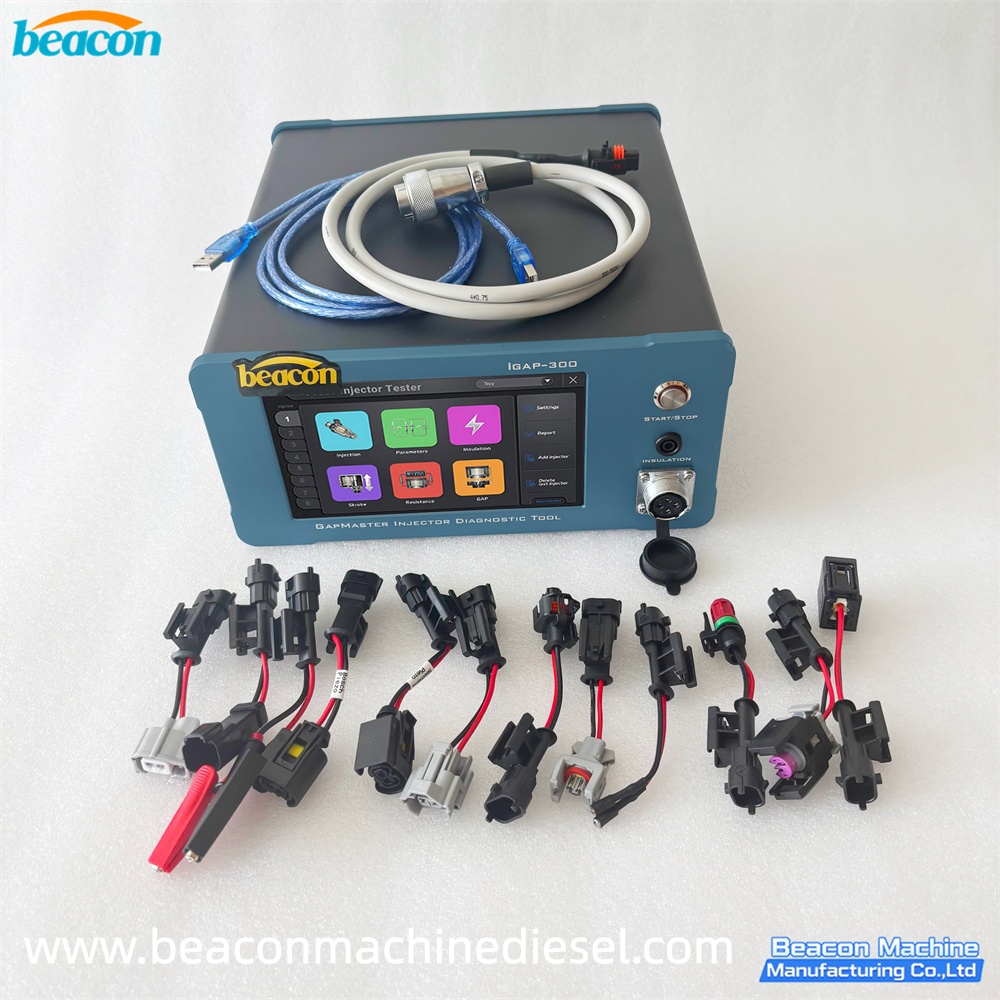

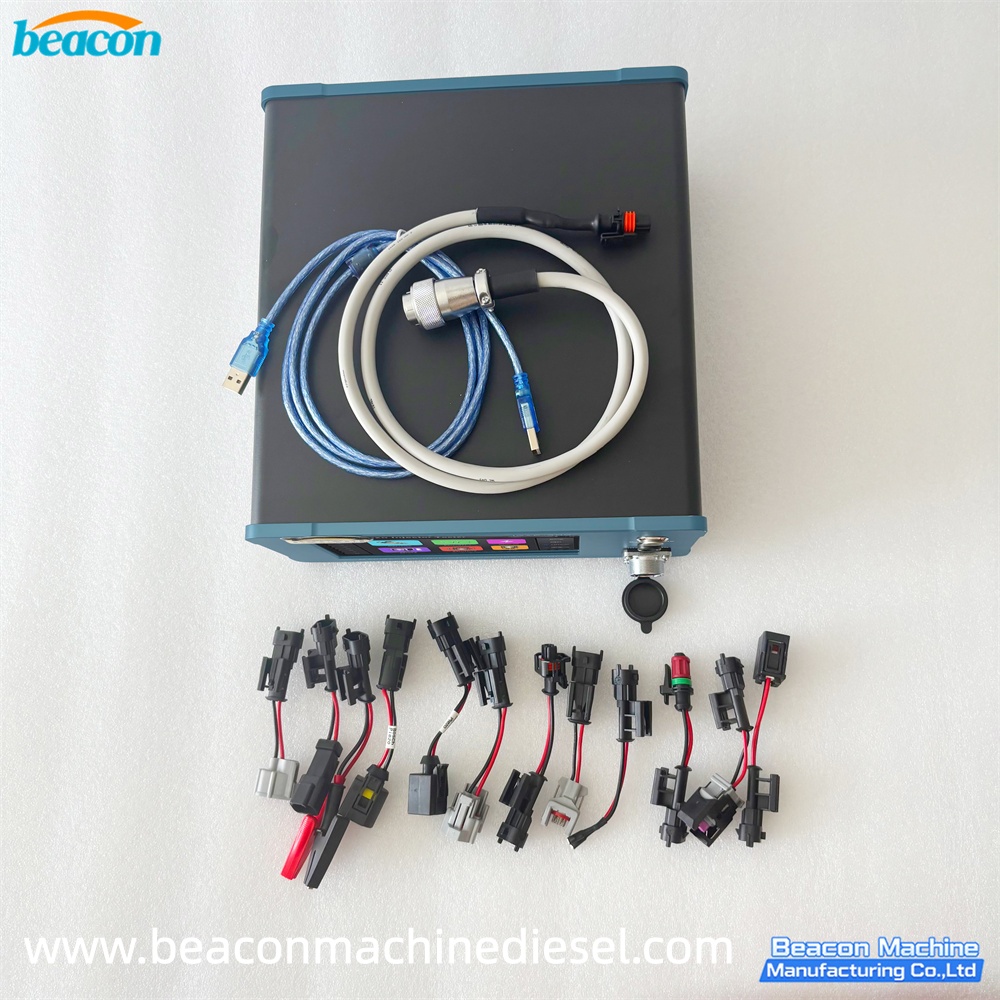

I GAP-300 Common Rail Solenoid & Piezo Common Rail Injector Tester

I GAP-300 Common Rail Solenoid & Piezo Common Rail Injector Tester

1. Injector Compatibility：Solenoid & Piezo common‑rail injectors

2. Test Functions

• Solenoid injector：drive injection, response time, dynamic stroke(AHE), resistance/inductance, insulation test, armature air gap, BIP closing time

• Piezo injector：electrical parameters, drive test, insulation, dynamic stroke, dynamic load/resistance, gap measurement

3. 7‑inch HD touch screen, embedded system, offline work without PC

4. Three control ways: touch screen, physical buttons, PC software connection

5. Local data storage, save data for up to 8 injectors for comparison; pass/fail judgment

6. Emergency stop button, over‑current & short‑circuit protection

7. Wide global voltage: AC 100‑240V
