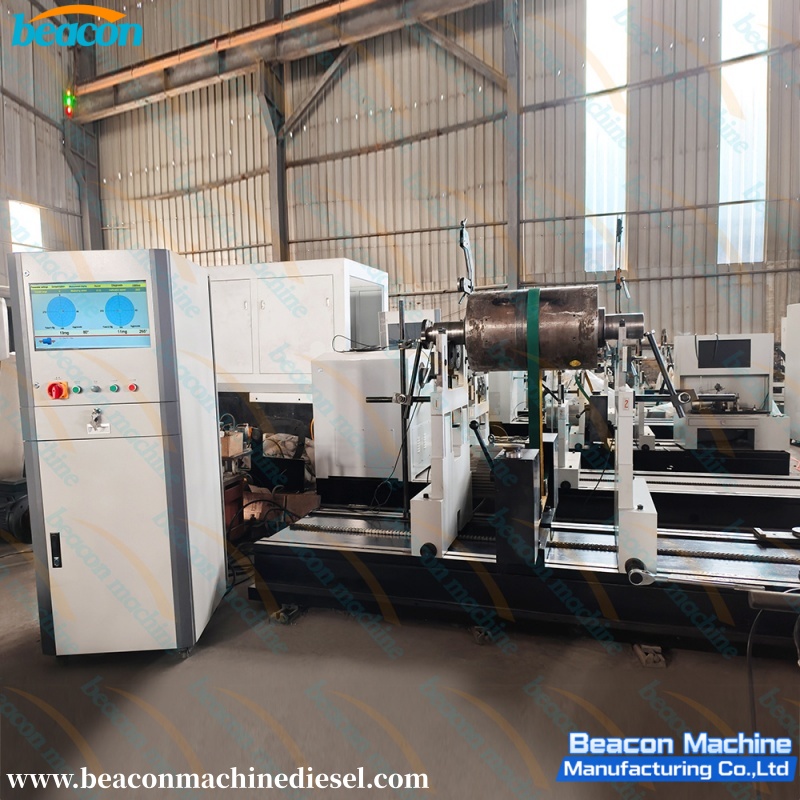

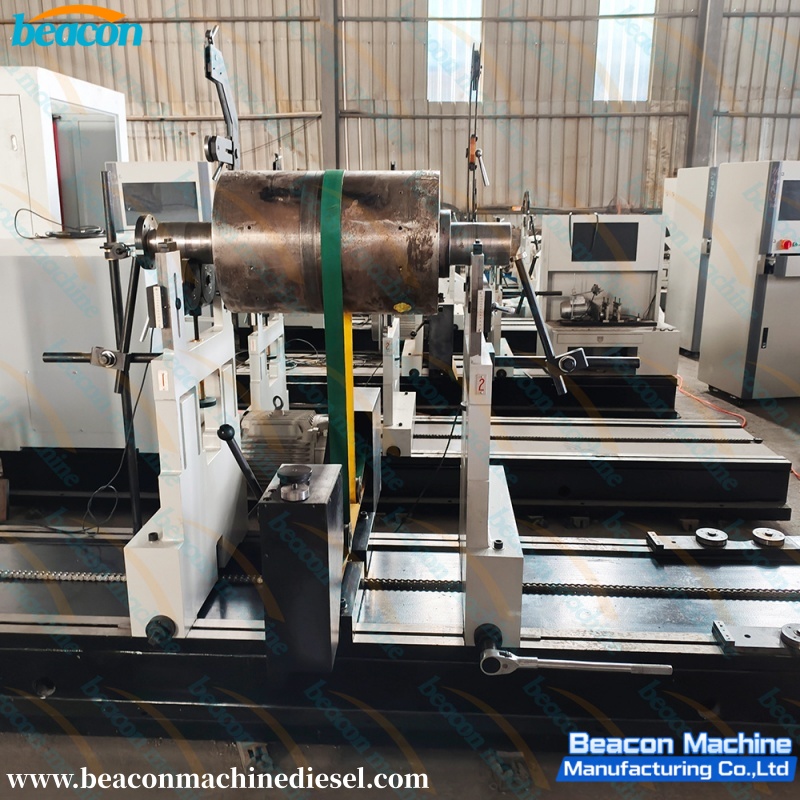

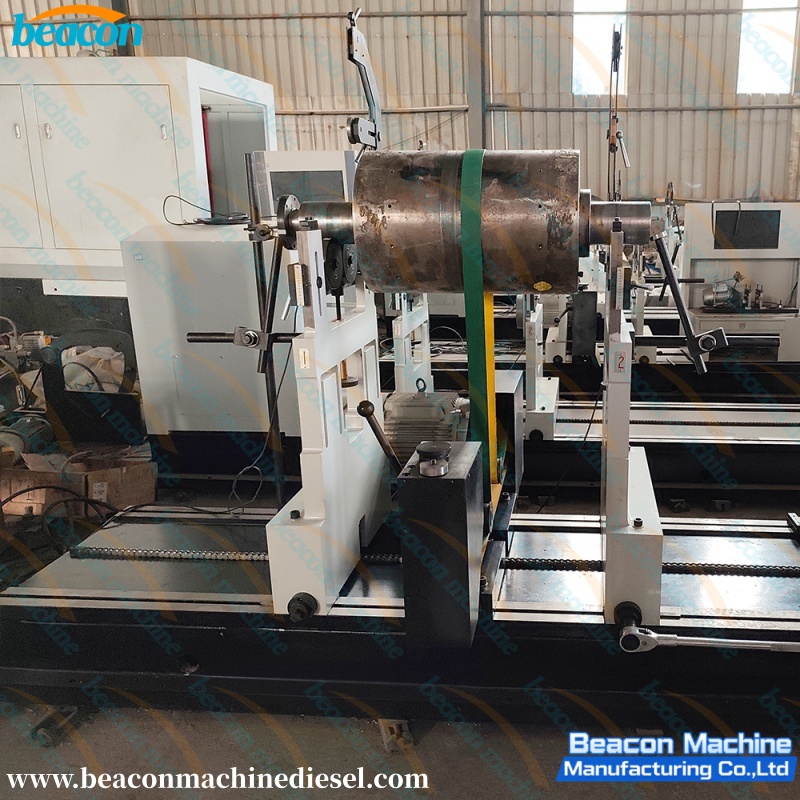

High Speed Rotor Balancer YYQ-3000A Electric Motor Rotor Dynamic Balancing Equipment

   High Speed Rotor Balancer YYQ-3000A Electric Motor Rotor Dynamic Balancing Equipment
      The YYQ series balancing machine is a universal hard-supported dynamic balancing machine produced by our company. It is organized and produced in strict accordance with GB/T4201-2006. All of them are supported by rollers, driven by universal couplings, ring belts, etc., and industrial control computers are used for data processing. , 19-inch LCD screen display: imbalance, phase angle and real-time speed. The software adopts GB-2000 general-purpose microcomputer balance measurement system, runs under windows, fully automatic program-controlled amplification module, simple operation and convenient use. Vector graphics, waveform and unbalanced amount are displayed at the same time. It has the characteristics of high efficiency, accurate precision, intuitive display, reliable quality and convenient maintenance. It can realize arbitrary input of parameters, arbitrary calibration, arbitrary angle fixture compensation, self-check, qualified quantity prompt, remaining unbalance g and unbalance torque g.cm, g.mm multiple display modes, automatic storage of measurement results, operation of all menu structures , Automatically prompt.

YYQ-3000A Servo Motor Rotor Dynamic Balancing Instrument
1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application

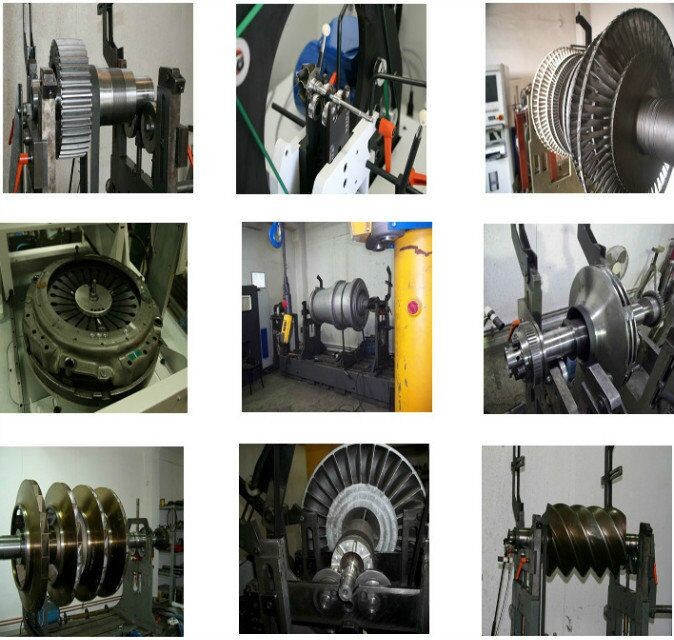

7.YYQ series are applicable for balancing rotating parts of motor, fan impeller, pump impeller, turbocharger, crankshaft, centrifuge, roller, spindle etc
