CR908 Multifunction Diesel Pump Injector Test Bench EUI EUP HEUI HPI QSK19 MTU E1 E3

CR908 Multifunction Diesel Pump Injector Test Bench EUI EUP HEUI HPI QSK19 MTU E1 E3

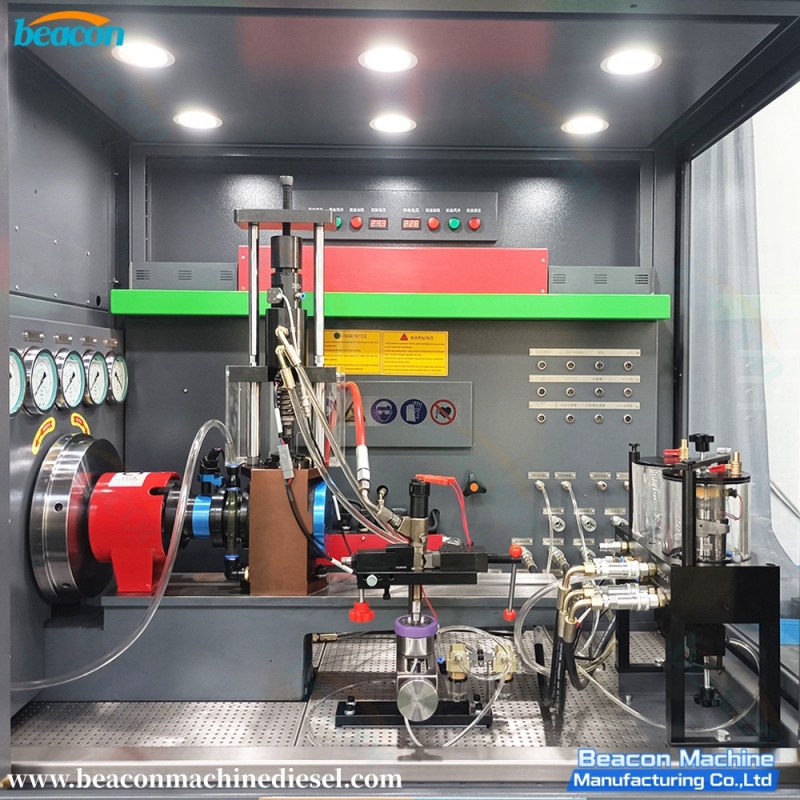

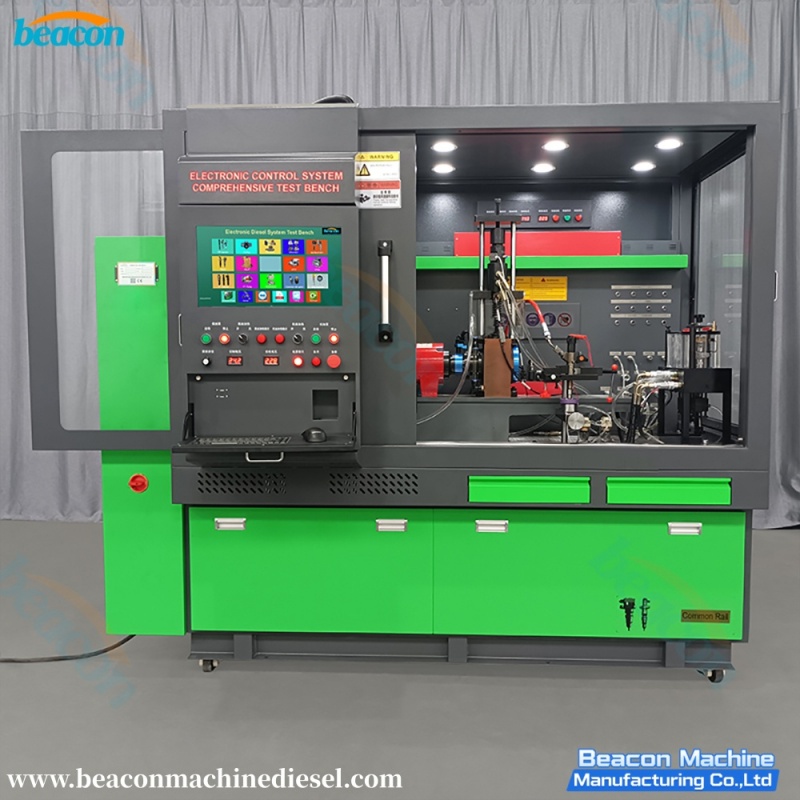

CR908  Multifunction Diesel Pump Injector Test Bench Common Rail Test Bench EUI EUP HEUI HPI QSK19 MTU E1 E3 is our latest independent researched special test bench to test the performance of different Mechanical pump (VE/P71000…), CR pump, CR injector, EUI/EUP with TU-C cam box , CAT HEUI injector, CAT 320D pump, CAT HEUI C7/C9 actuation pump testing. The oil quantity is measured by flow sensor and displayed at computer directly, All data can be searched and saved. Advanced technology, steady performance, precise measurement and convenient operation.

Motor power: 15kw(or other you need)
2. Industrial PC with touch screen
3 Forced cooling

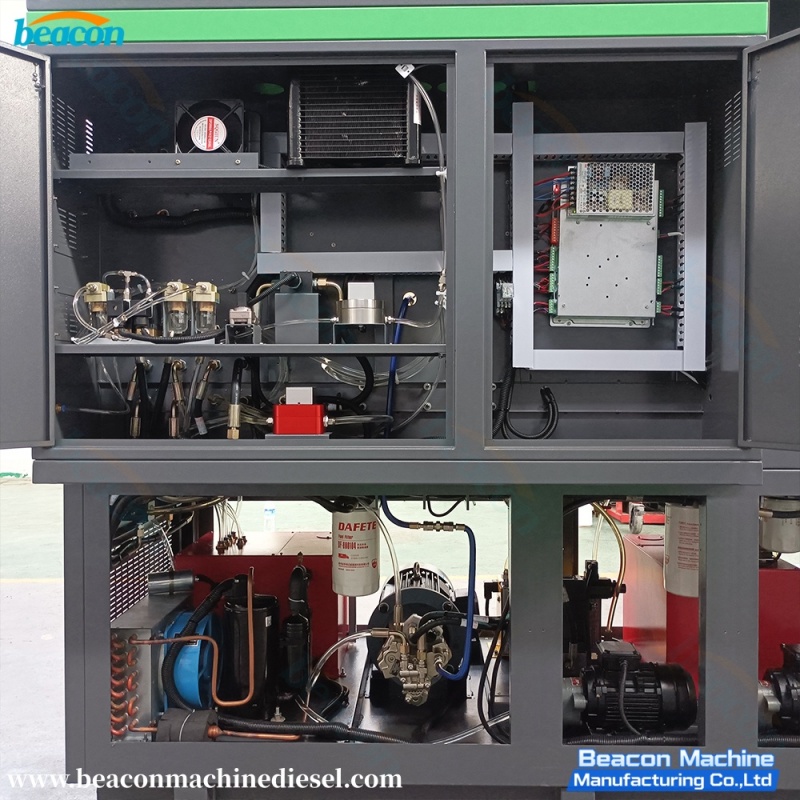

4. Oil tank (including heating, refrigeration, liquid level detection, temperature detection)
5. Diesel tank (including heating, refrigeration, liquid level detection, temperature detection)
6. Flow meter detecting the injector injection flow.
7. Flow meter detection of common rail pump
8. Flow meter to detect engine oil flow
9. Standard rail with Bosch original DRV and Sensor
10. Engine Oil pressure closed loop control module
11. Engine oil pressure double control (manual/auto)
12. The device is convenient to move and position the roller
13. Separate Bosch CP3 pump inside to test Common Rail Injector.
14. Partition separation operation to save work time
