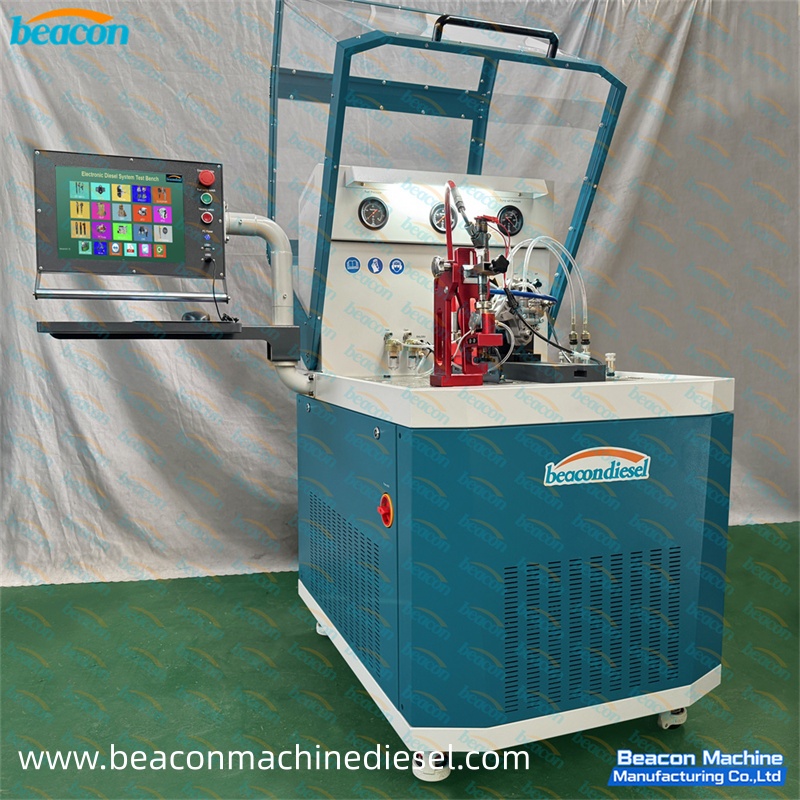

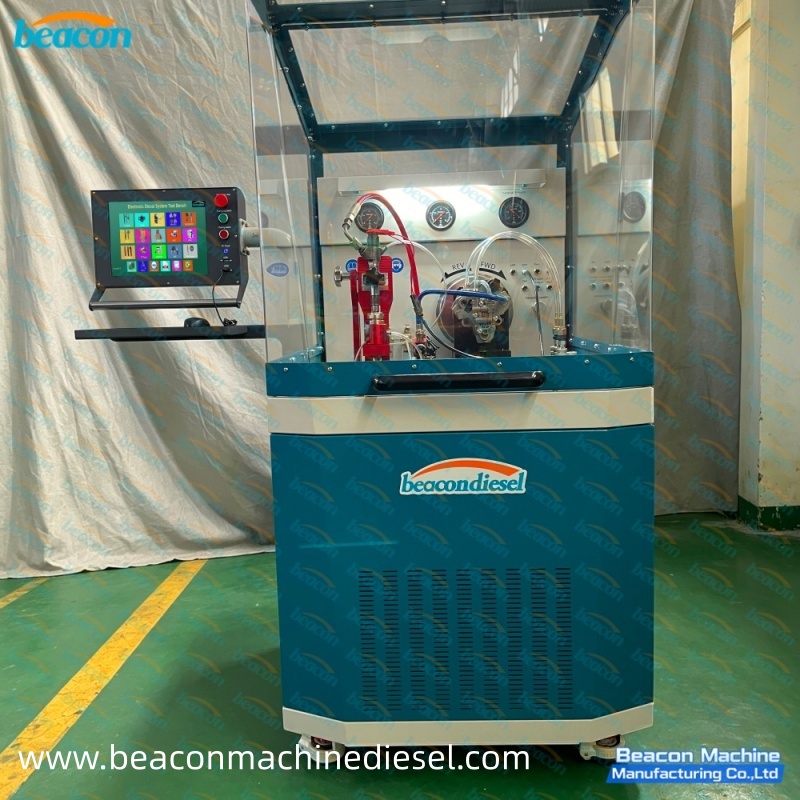

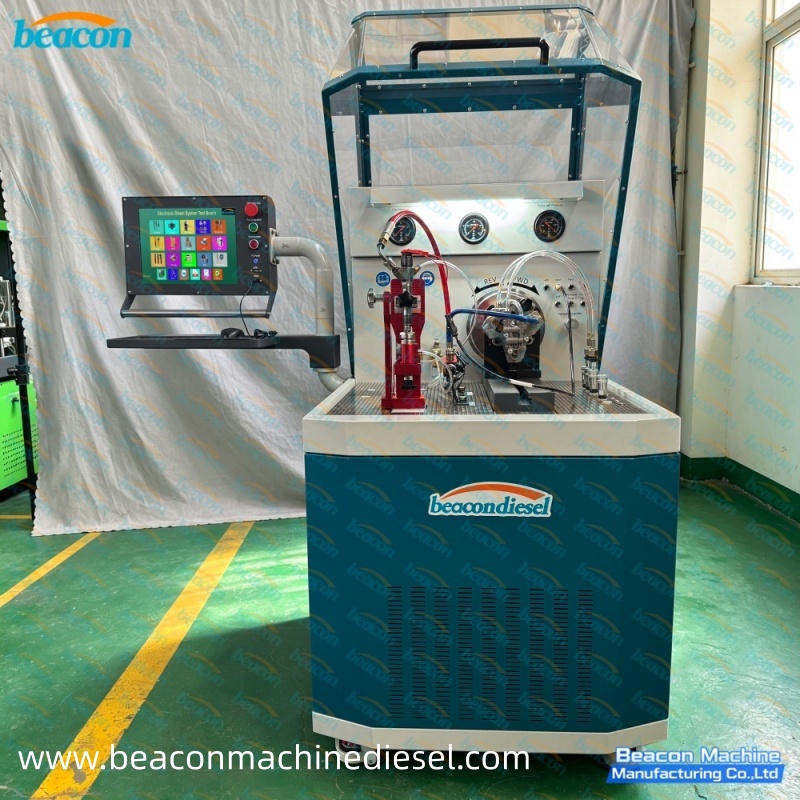

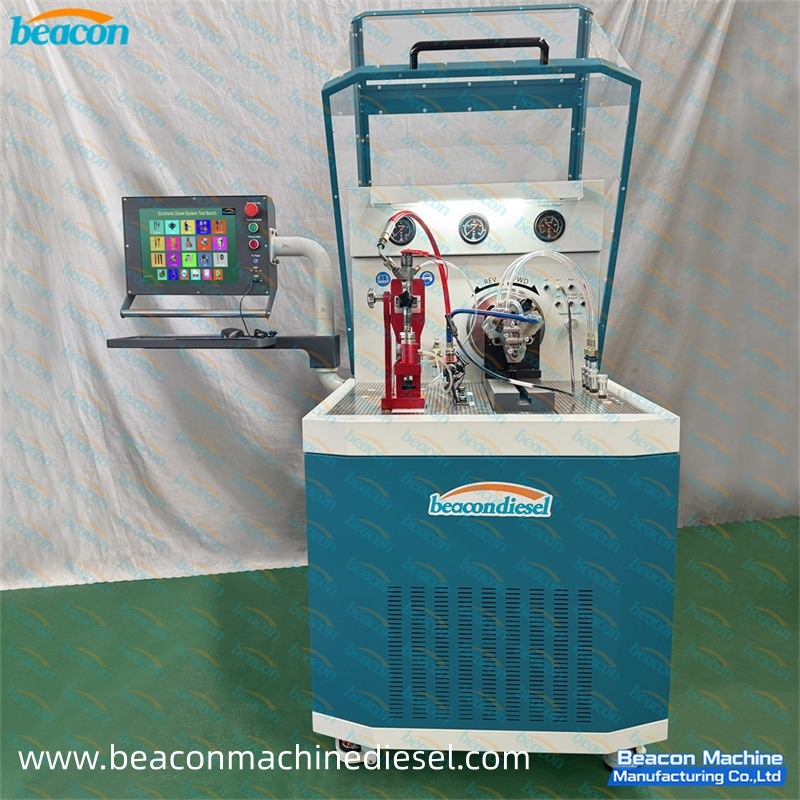

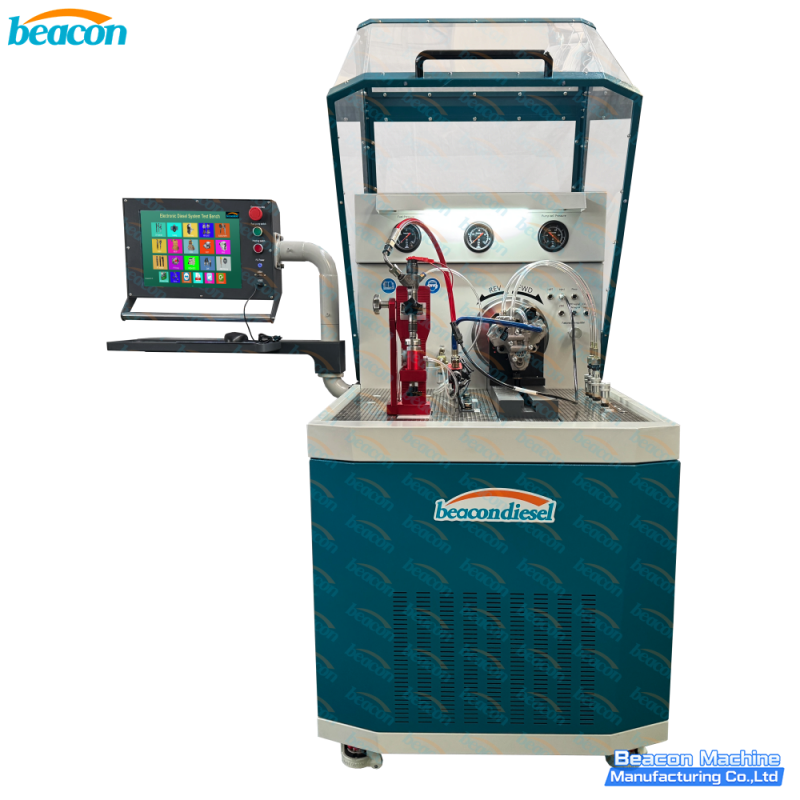

BC810 Common Rail Injector Pump Test Bench with HEUI EUI EUP Function

• Optional Functions

• EUI EUP testing with TU-C / TU-D / TU-E cam box

• HEUI dual oil circuit test for C7 C9 3126B

• Extra fixtures: 3126A, 3412E, NAVISTAR, ISUZU G2.8, G2.9

• CAT 320D pump, CAT HEUI actuation pump test

• Delphi E3 dual pulse control system test

• Simultaneous test of 2 fuel injectors

• ZME metering unit test

• AHE injector dynamic stroke measurement

• PT injector and PT pump test

• Cummins HPI Q60 X15, CP4 pump test

• Bosch 4-pin, Denso HP5 HP6 HP7 injector test

• Common rail pressure sensor, DRV, HPV, solenoid valve test

• Printer module

ItemParameterModelBC810
Rated Power7.5KW
Voltage220V Single/3Phase, 380V 3Phase
Gross Weight700 KG
Bare Machine Size1.15 × 1.02 × 1.71 M
Packing Size1.25 × 1.12 × 1.91 M
Software Languages15 LanguagesCore
Test ObjectsCommon Rail Injector, Common Rail Pump, HEUI, EUI, EUP, PT Parts
