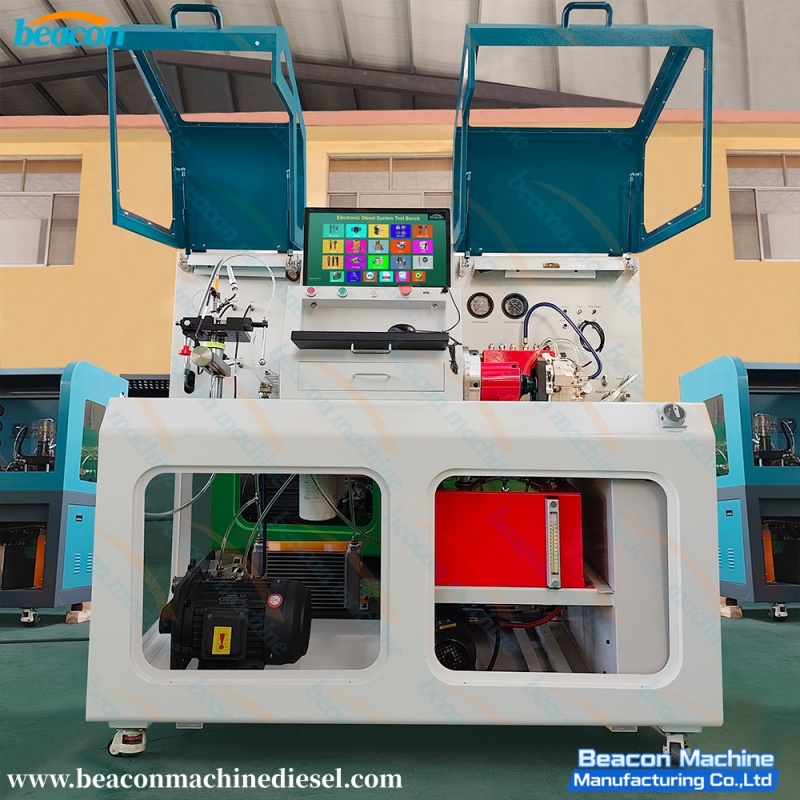

Beacon Machine Diesel CR IP800 Common Rail Diesel Injector Fuel Injection Pump Test Bench

 Beacon Machine Diesel CR IP800 Common Rail Diesel Injector Fuel Injection Pump Test Bench
  1.The machine can be fully automatic testing Bosch, Denso, Delphi, Carter and other kinds of injectors, injection pumps, by increasing the configuration can be added to the monobloc pumps, pump nozzles, Carter oil actuated pumps and other types of additional packages, to achieve the multi-purpose machine, effective savings in testing costs.

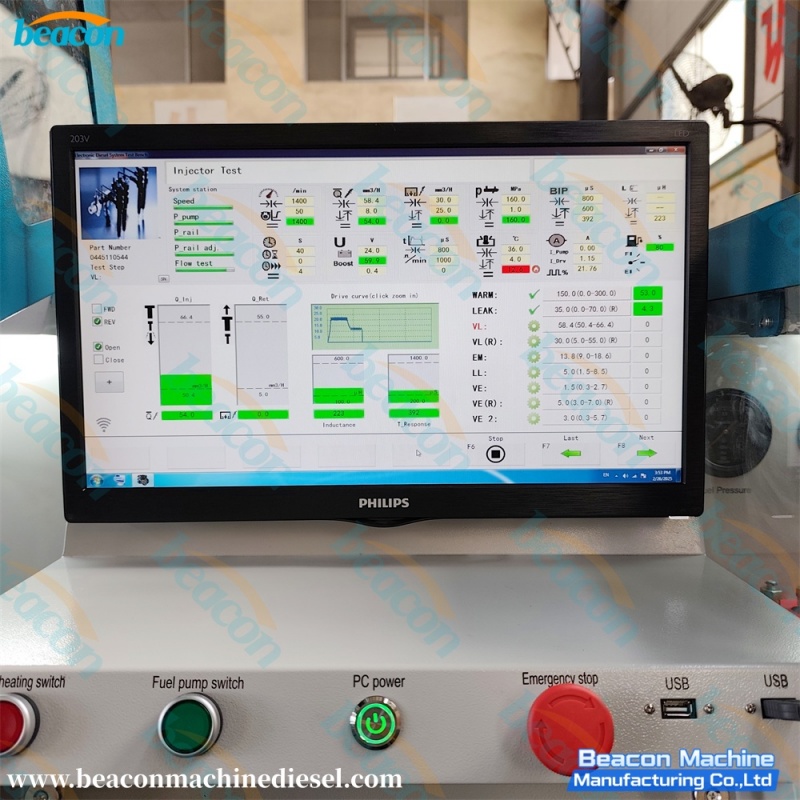

2.Adopt original imported flow sensor, accurate testing. Test data by professional and technical personnel strict testing, summary and Bosch original data is highly close.
3.Bosch IQA code generation, Cummins XPI QR code generation. Denso QR code generation, Delphi QR code generation, Siemens QR code generation. 4.Injector response time test 5.Server online real-time update system data.

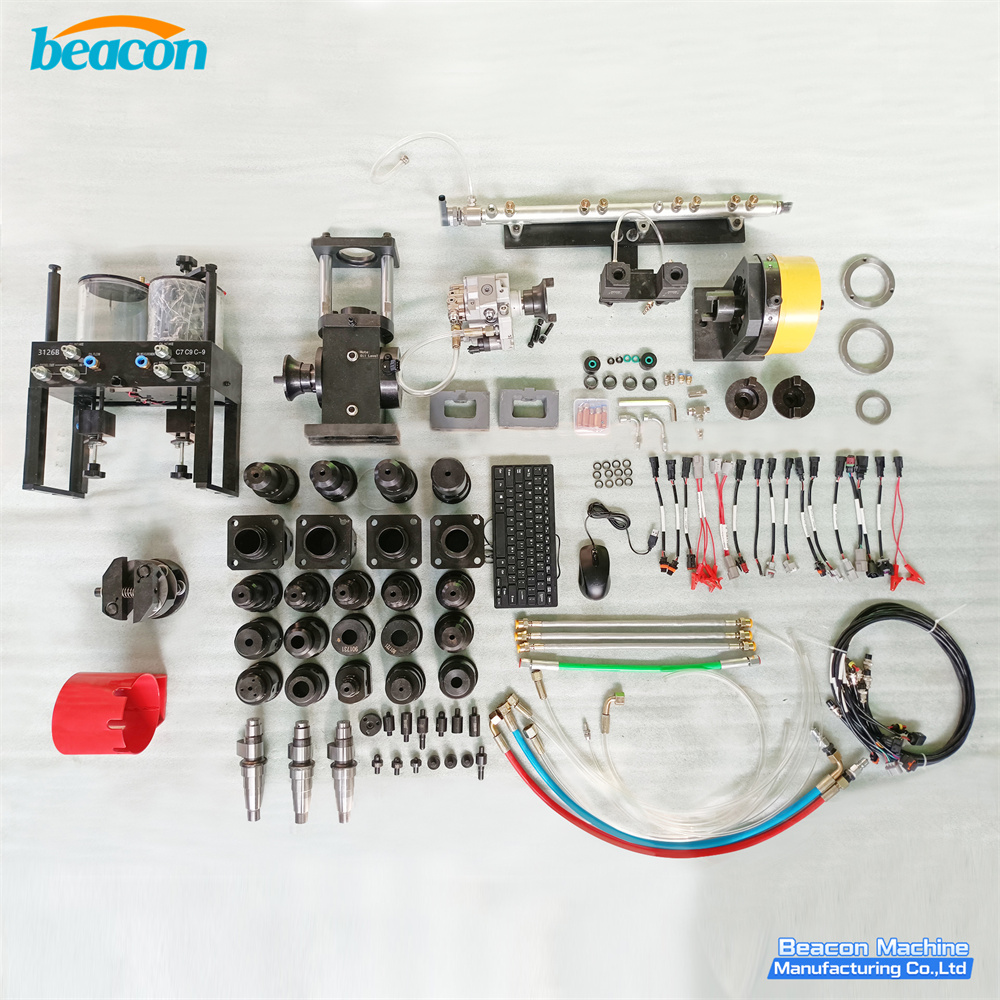

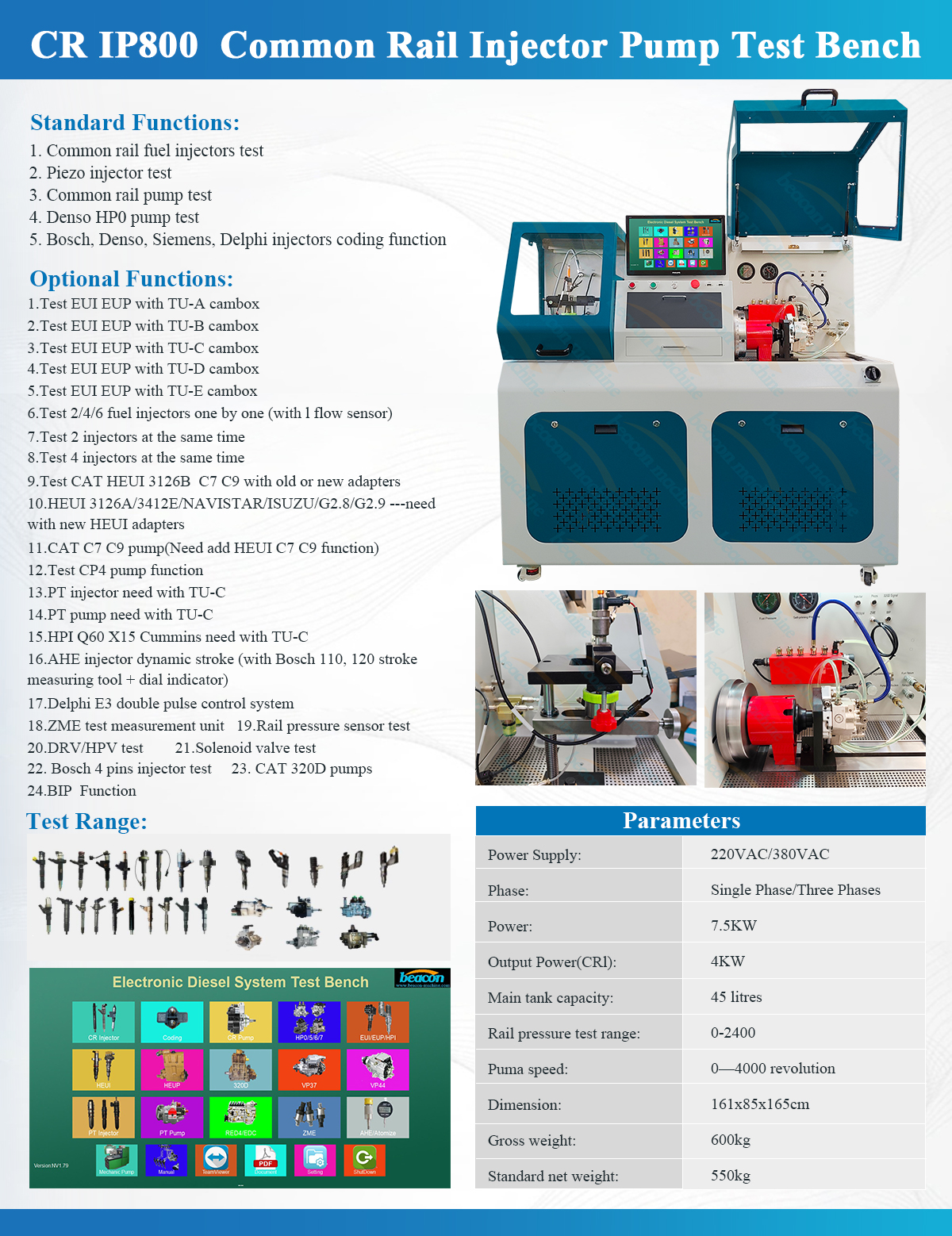

  Standard Functions: 1. Common rail fuel injectors test 2. Piezo injector test 3. Common rail pump test 4. Denso HP0 pump test 5. Bosch, Denso, Siemens, Delphi injectors coding function Optional Functions: 1.Test EUI EUP with TU-A cambox 2.Test EUI EUP with TU-B cambox 3.Test EUI EUP with TU-C cambox 4.Test EUI EUP with TU-D cambox 5.Test EUI EUP with TU-E cambox 6.Test 2/4/6 fuel injectors one by one (with 1 flow sensor) 7.Test 2 injectors at the same time 8.Test 4 injectors at the same time 9.Test CAT HEUI 3126B C7 C9 with old or new adapters 10.HEUI 3126A/3412ENAVISTARISUZU/G2.8/G2.9 --need with new HEUI adapters 11.CAT C7 C9 pump(Need add HEUI C7 C9 function) 12.Test CP4 pump function 13.PT injector need with TU-C 14.PT pump need with TU-C 15.HPI Q60 X15 Cummins need with TU_C 16.AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator) 17.Delphi E3 double pulse control system 18.ZME test measurement unit 19.Rail pressure sensor test 20.DRV/HPV test 21.Solenoid valve test 22.Bosch 4 pins injector test 23. CAT 320D pumps 24.BIP Function
