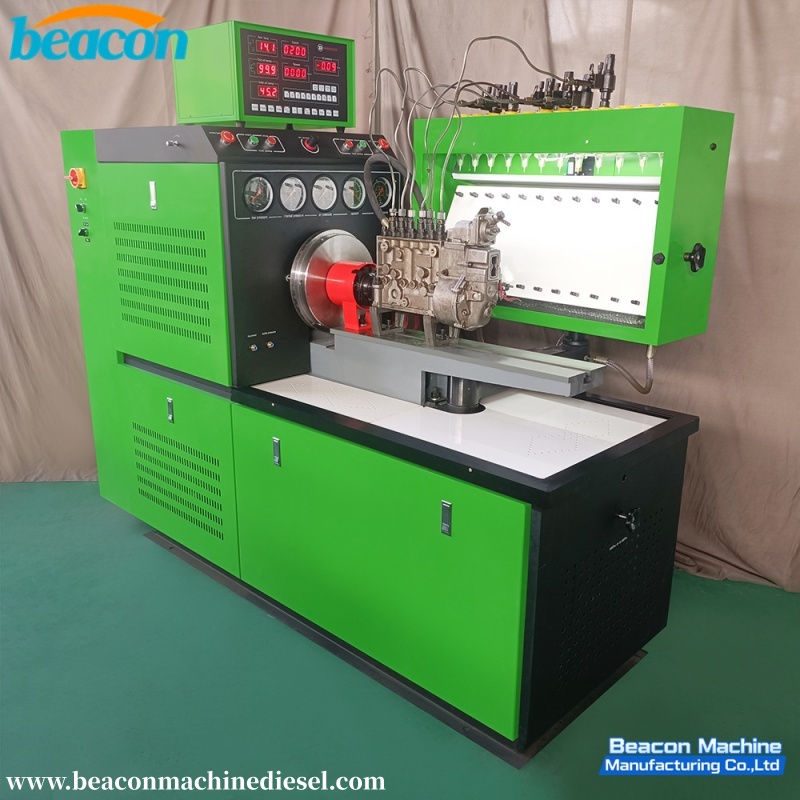

ES619 Diesel Injection Pump 12 Cylinders Test Bench Machine

ES619 Diesel Injection Pump 12 Cylinders Test Bench Machine

Product Introduction

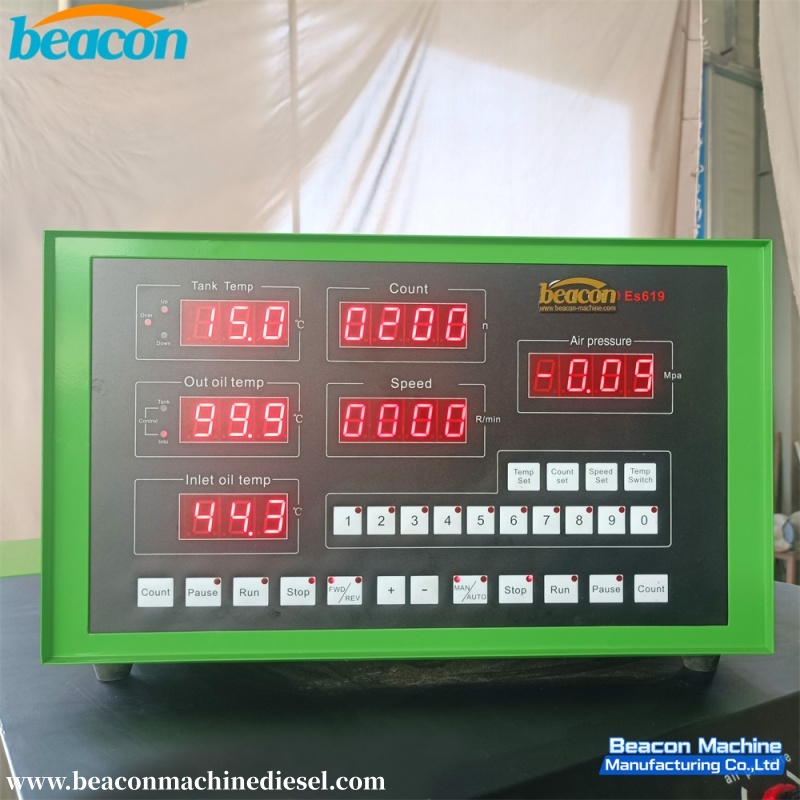

Featuring a multi-function controller with advanced single-chip technology, this bench offers high precision and stable performance. It supports stepless frequency control speed and real-time monitoring of oil temperature, ensuring accurate detection. The industrial-grade circuit design provides strong anti-interference capability, making it ideal for harsh workshop environments.
Measures injection quantity and interval angle at any speed.
Tests and adjusts mechanical governors, distributor pumps, and solenoid valves (12V/24V).

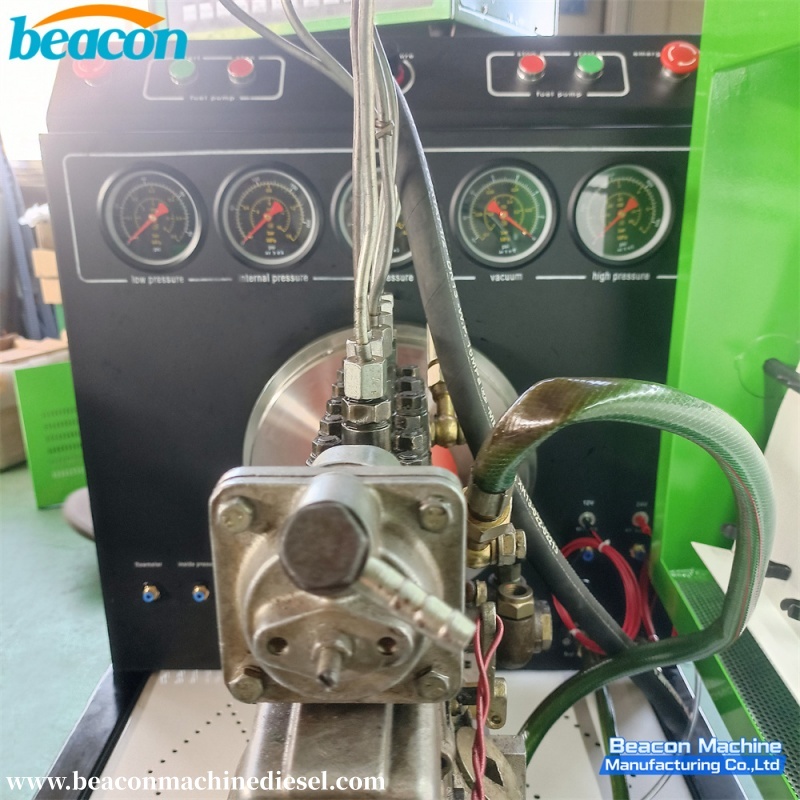

Checks internal pressure, sealing performance, and stroke travel of pumps.
Validates supercharging/compensatory device behavior and advance angle (on request).
Supports oil supply pump testing with an optional oil suction tube.
Oil lubrication system
Cast iron base Forced cooler

ES619 Diesel Injection Pump 12 Cylinders Test Bench Machine

Main function
1.Measurement of each cylinder delivery at any speed.
2.Test point and interval angle of oil supply of injection pump.
3.Checking and adjust the mechanical governor.
4.Checking and adjusting the distributor pump.
5..Experiment and adjusting of behavior of supercharging and compensatory device.
6.Measurement of oil return of distributing pump
7.Testing of the electromagnetic valve of distributor pump.(12V/24V)
8.Measurement of the internal pressure of distributor pump.
9.Checking of the advance angle of advance device.(on request)
10.Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
