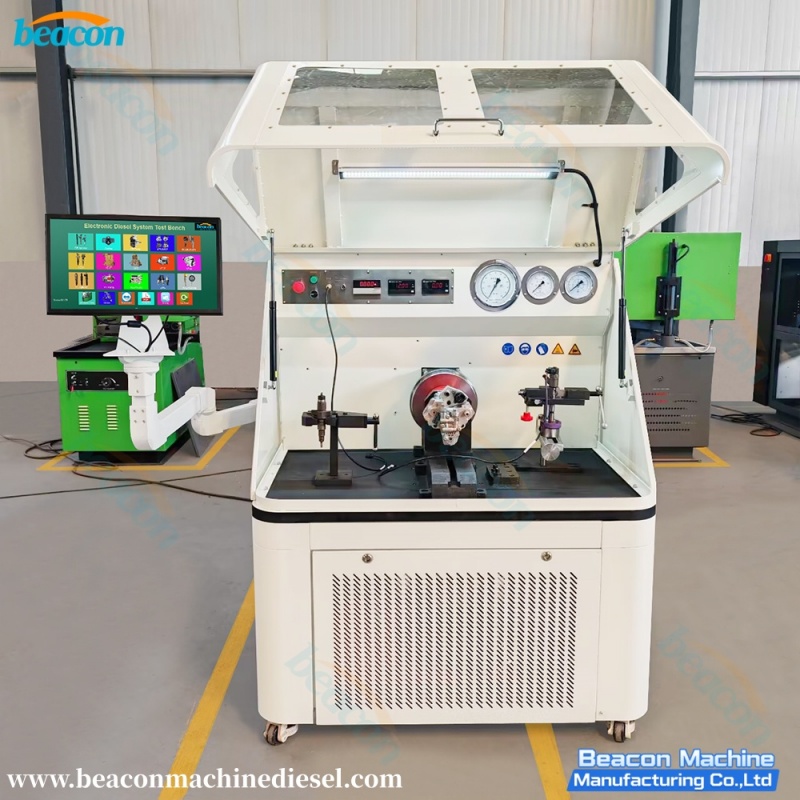

BC818 Multi-Functional Diesel Fuel Common Rail Injector Pump HEUI EUI EUP CAMBOX Test Bench

BC818 Multi-Functional Diesel Fuel Common Rail Injector Pump HEUI EUI EUP CAMBOX Test Bench
high voltage common rail electronic control system comprehensive test bench: using automatic control system, can very convenient test and maintenance of electric control common rail fuel injector (including piezoelectric co-rail fuel injector), high voltage electric control common rail pump, electric control single pump, electric control pump nozzle, HEUI fuel injector, HEUI actuator pump, etc. It can test thousands of models of electric control fuel injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang), electric control single pump, electric control pump nozzle, HEUI fuel injector, with complete test data.

  Configure：
1. High precision oil volume measurement system: high precision gear flowmeter (two sets of fuel and one set of oil)
2. The computer host of the equipment stores more than 8,000 kinds of electric common-rail oil injector, high voltage electric common-rail pump, electric single pump, electric pump nozzle and HEUI fuel injector
3. Hd industrial-grade touch screen
4. Independent research and development of electric controlled common rail injector, high voltage electric controlled common rail pump, electric controlled single pump, electric controlled pump nozzle, HEUI fuel injector (with remote control, remote service, free upgrade, support WIFI connection and other functions)
5. Two sets of control system: electronic control common rail fuel injector fuel injection correction code up into the system and fuel system rapid detection and maintenance system.
6. Test oil automatic temperature control system: heater and forced refrigeration system
7. Automatic oil temperature control system: heater and forced air cooling system

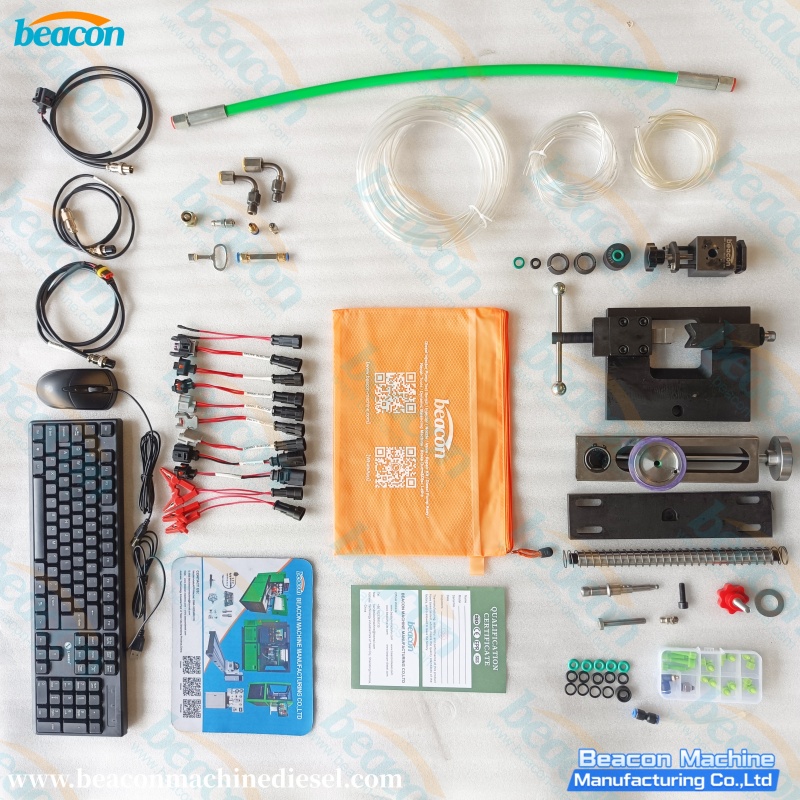

8. Equipped with universal fixture suitable for various types of e-controlled common rail fuel injectors, connected with special wiring harness and special connector for oil supply and return, etc
9. Equipped with a HEUI fuel injector to test and install a special fixture
10. Equipped with a movable main control system bracket.
11. Equipped with installation bends, pads and bushing for the high pressure common rail pump test and the main drive motor
12. Equipped with new cam box and installation fixture (suitable for electric control pump nozzle and electric control unit pump)
13. Equipped with special test wiring harness connecting high-voltage common rail pump, electric-controlled pump nozzle, single pump, common-track fuel injector and HEUI fuel injector
14. Accurate rail pressure acquisition system: Bosch rail pressure sensor and Bosch common rail tube
15. Accurate rail pressure control system: Bosch high pressure proportional control valve (DRV valve)
16. Accurate oil pressure regulating system (0-24.5MPa), using two pressure regulating methods of electric controlled proportional valve, and oil pressure collection using Bosch pressure sensor.
17. Low pressure fuel supply secondary filtration system: 3-5 μ filtration accuracy
18. Oil supply secondary filtration system: 15-20 μ filtration accuracy.

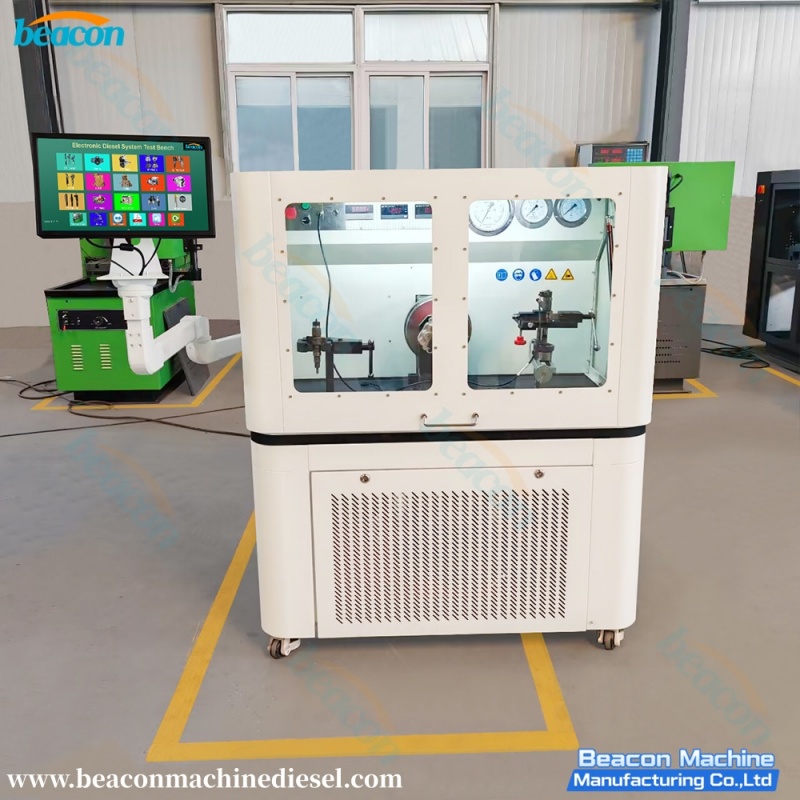

19. Protective door and observation window adopt high strength and thickened acrylic.
20. Measure the oil circuit secondary filtration system.
21. High-pressure common rail pump BoschCP3.3.
22.DRV Pressure regulating valve forced air cooling system.
23. Forced injection cooling system of electric control fuel injector.
24. The independent pressure supply system of the electric control common rail fuel injector is separated from the main drive motor.
25. Provide test oil forced oil supply (0-1MPa) and self-priming two-way oil supply system and two-way filtration system (3-5 μ).
26. Provide forced oil supply (0-1MPa) and self-suction two-way oil supply system, two-way filtration system (15-20 μ).
