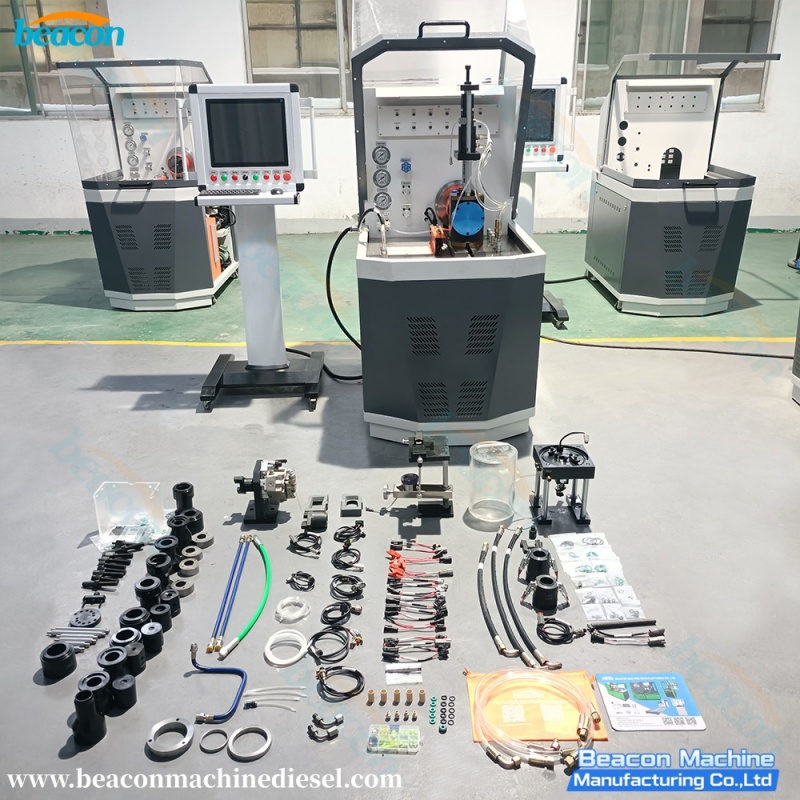

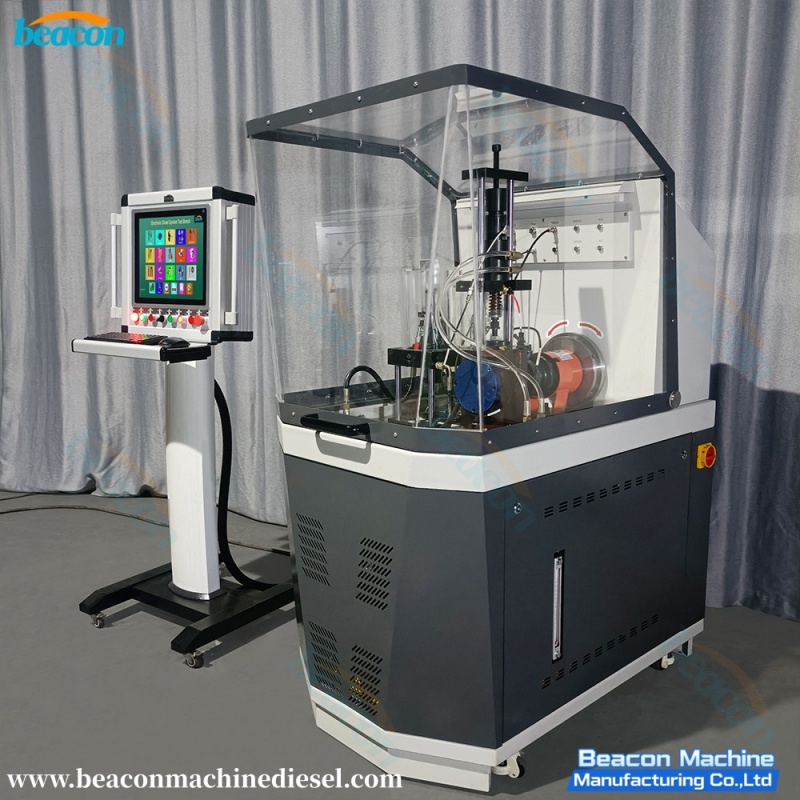

BC808 Common Rail Injector Pump Testing Machine Eui Eup Cambox for Diesel Fuel System

BC808 Common Rail Injector Pump Testing Machine Eui Eup Cambox for Diesel Fuel System
high voltage common rail electronic control system comprehensive test bench: using automatic control system, can very convenient test and maintenance of electric control common rail fuel injector (including piezoelectric co-rail fuel injector), high voltage electric control common rail pump, electric control single pump, electric control pump nozzle, HEUI fuel injector, HEUI actuator pump, etc. It can test thousands of models of electric control fuel injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins (Dongkang, Fukang), electric control single pump, electric control pump nozzle, HEUI fuel injector, with complete test data

Electronic injector brands: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS and SIMENS.
2. Brands of high-pressure common rail pump that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.
3. It can accurately and automatically test the high pressure sealing, full load fuel injection, fuel return, discharge point, idle fuel injection, pre-injection and fuel return of the electric controlled common rail injector.
4. Can automatically generate the fuel quantity correction code of the electronic control common rail injector: QR, IQA, IMA, ISA, c2i, c3i, (VD 0) ICC.
5. It can accurately detect the high-pressure oil supply capacity of the high-pressure electronically controlled common rail pump, the pressure regulating characteristics of the low-pressure oil inlet metering valve and the PCV high-pressure proportional valve (HP0,320D, etc.), and the oil absorption capacity and oil supply pressure of the high-pressure common rail pump.
6. It can accurately test the oil injection amount and oil return flow of Carter medium pressure HEUI injector in each working condition, and detect the sealing ability of HEUI injector fuel oil channel and medium pressure oil channel.
7. It can test the oil absorption capacity and oil supply pressure of the own fuel pump, the oil supply capacity of the medium pressure oil of the HEUI actupump and the pressure regulating performance of the own oil proportional regulating valve.
8. Equipped with new cam box control unit and new fixture, can easily detect the pump nozzle and the single pump of each load, can quickly and accurately judge the damaged parts of the electric pump nozzle and the single pump.
9. The fuel injector solenoid valve armature lift test.
10. The electric control common rail fuel injector starts the pressure test.
11. Electric controlled common rail injector opens the pulse width test.
12. Response time test of electric control common rail injector.
13. Test of the resistance value and inductance value of the solenoid valve of the electric control common rail injector
14. Ually edit the injector for the manually.

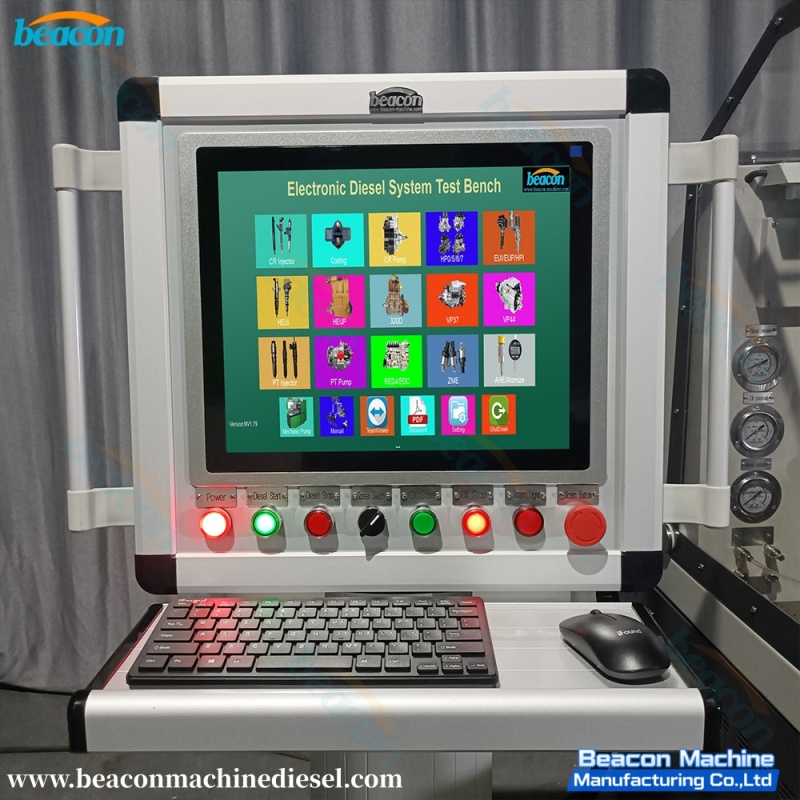

15. The test process can be selected according to the actual situation and automatically generate the test data report.
16. Which can display 6 sets of test data at the same time to facilitate data comparison.
17. Judge the damaged parts of the electric controlled common rail injector according to the information of the oil quantity and interface prompt of the electric controlled common rail injector.
