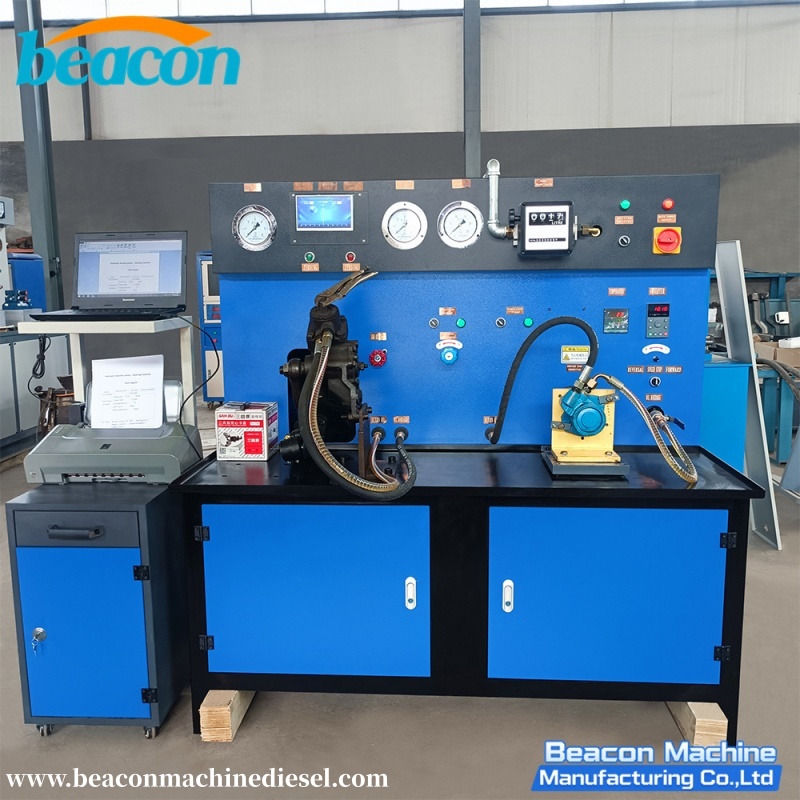

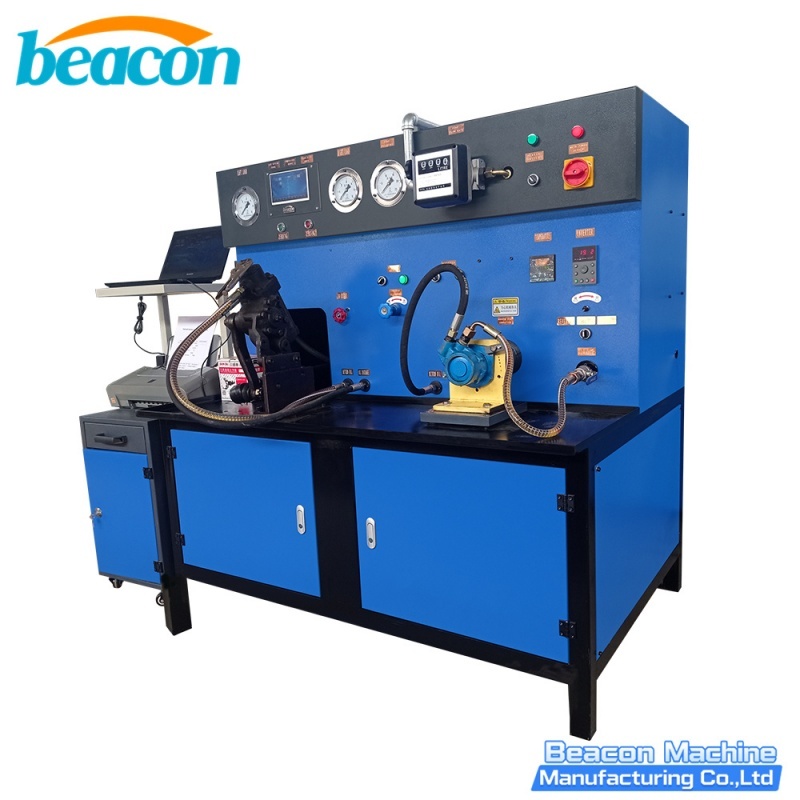

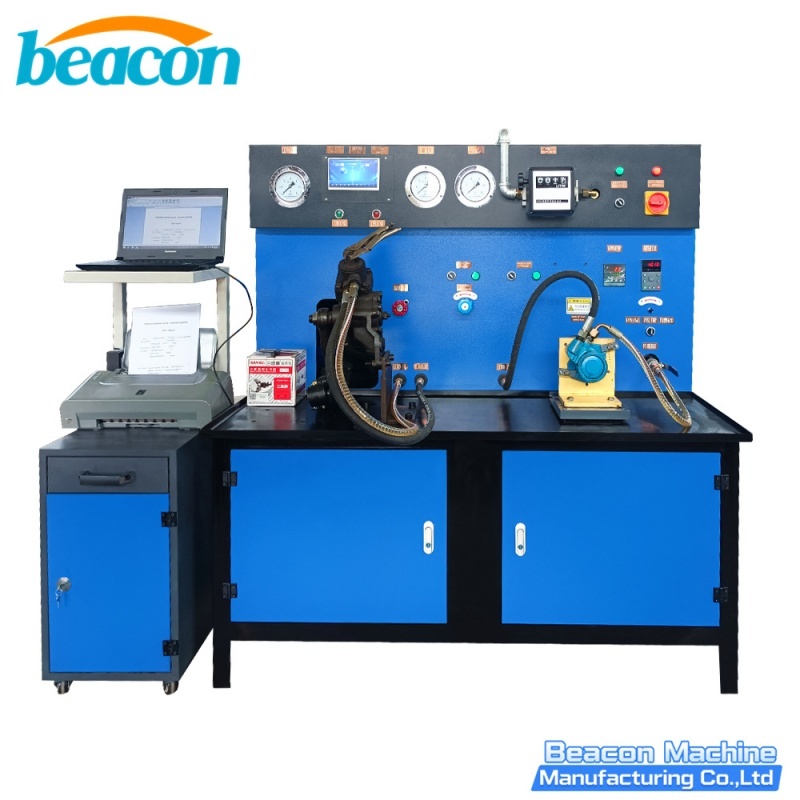

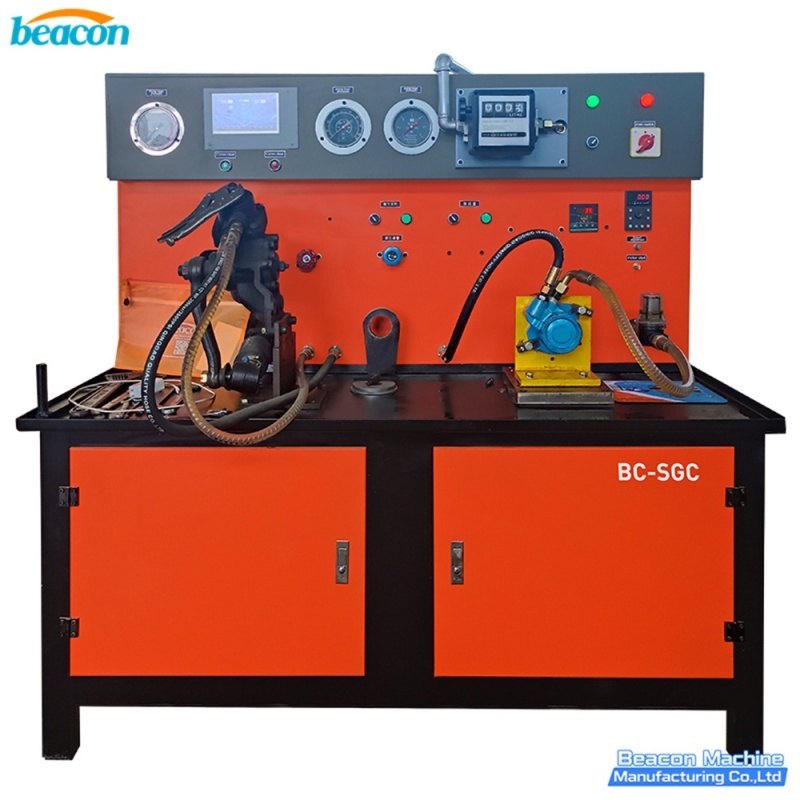

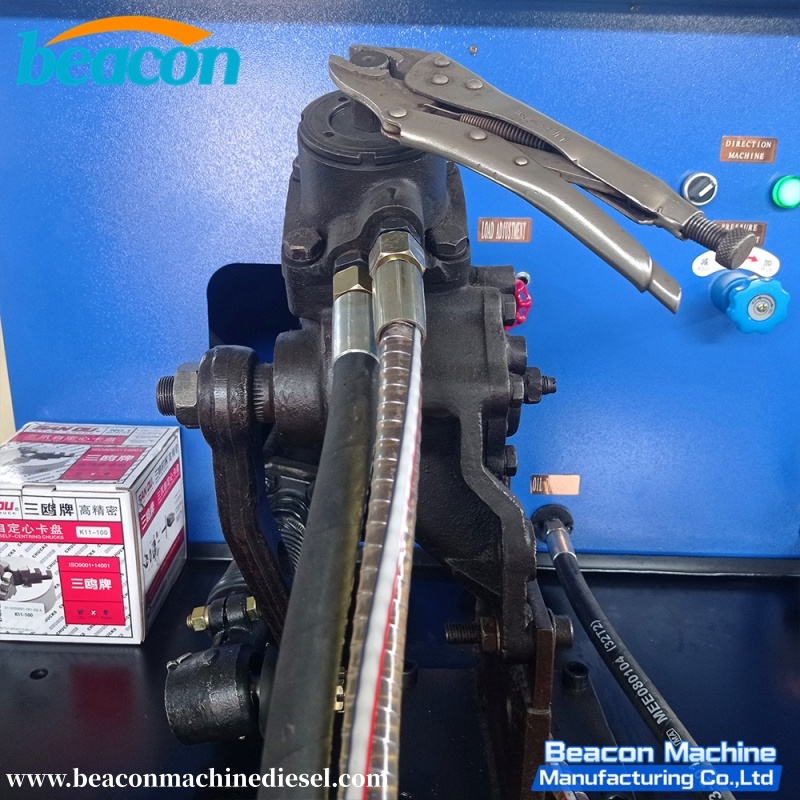

BC-SGC Power Steering Gear Booster Hydraulic Pump Test Bench With Printer

BC-SGC Power Steering Gear Booster Hydraulic Pump Test Bench With Printer

Detection of booster pump flow
A.Do not stop after the pressure test, the heating switch meter to the heating position, the hydraulic oil heating, to be heated indicator light off, the conversion handle to the pressure position, the pressure gauge should show the rated pressure of this pump.

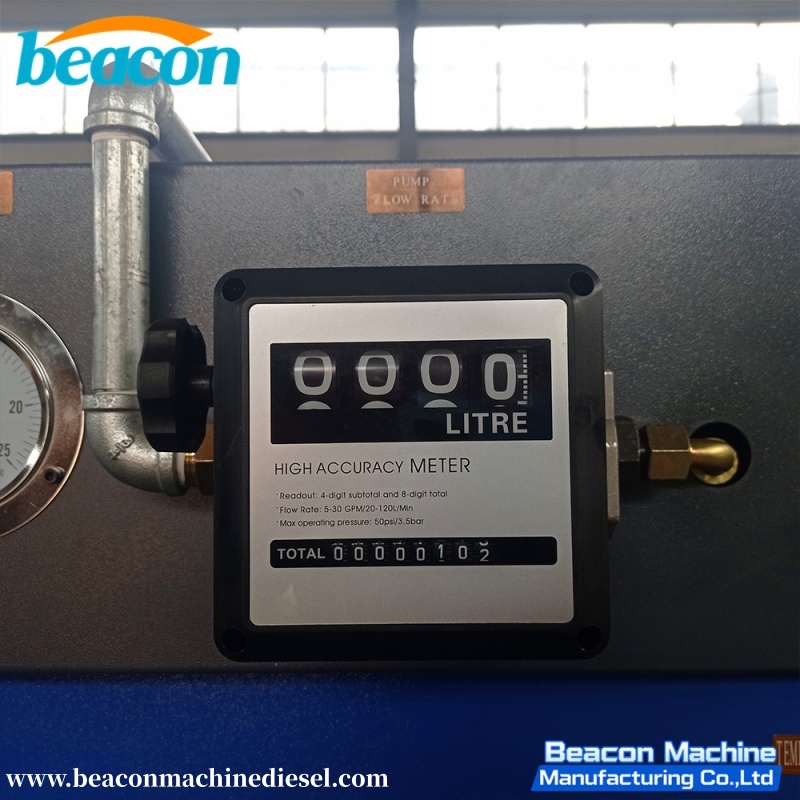

B. Remember the position of the flow meter pointer, and prepare a stopwatch, the conversion handle to the flow position, while pressing the stopwatch to start timing, timing one minute after the handle to the pressure position, the difference between the flow meter reading and the measurement before the reading is the flow of the pump.

Operating steps
1. Install the machine on a flat and hard ground, without installing the foot fastening bolts, and correct the vertical and horizontal levels with a vertical line and a level meter.
2.  Use three-phase four-wire power supply, connect the three fire wires and one zero wire to  the machine according to the instructions on the machine, ground the machine reliably, and  install a leakage protector (30A) on the power line to ensure work safety.
3.  Fill hydraulic oil, the machine needs to be filled with No. 46 anti-wear hydraulic oil, the refueling port is located in the upper part of the machine, the machine needs to be filled with about 15 liters of hydraulic oil, after the filling is completed, the plug of the filling port is covered to avoid dust stains.

BC-SGC Hydraulic Steering Gear Power Steering Pump Test Bench Advantage

Dual-Function Testing: Combines power steering pump testing and steering gear (rack/box) testing in one unit, saving workshop space and equipment costs.
Deep Diagnostics: Specifically engineered to identify common but difficult steering problems like Internal Leakage (causing drift), Hard Spots (Binding) , and Assist Imbalance (Symmetry issues).
Powerful Performance: Supports a maximum pressure of 15MPa and a flow rate of 50L/min , covering the testing needs of most passenger cars and light trucks.
Complete Workstation: Comes standard with a built-in Data Printer for generating professional test reports and an integrated Work Table for convenient operation.
Stable Control: Uses a 5.5KW frequency inverter for smooth speed regulation and energy efficiency.
