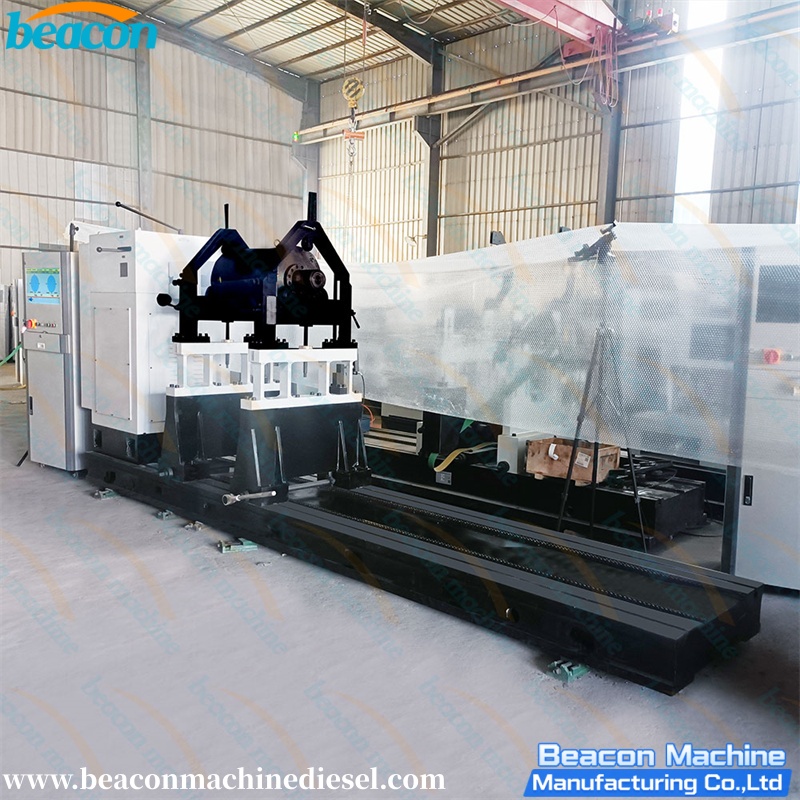

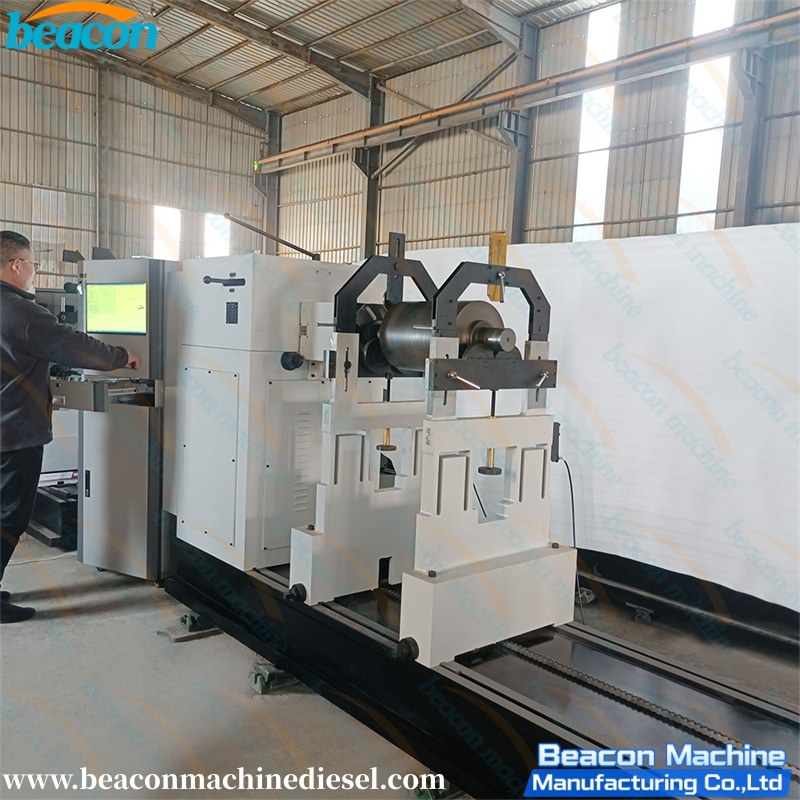

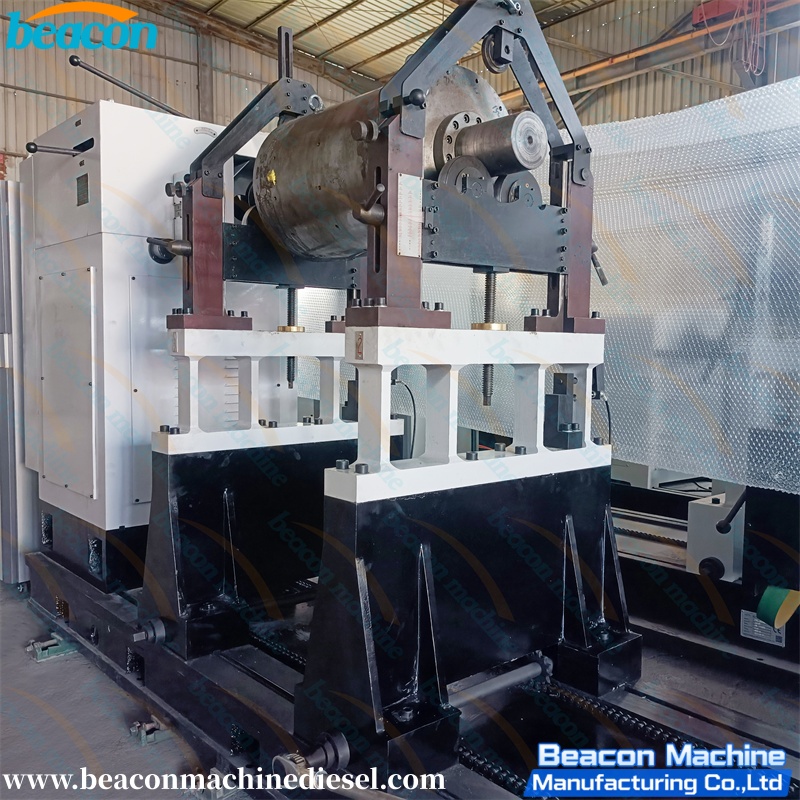

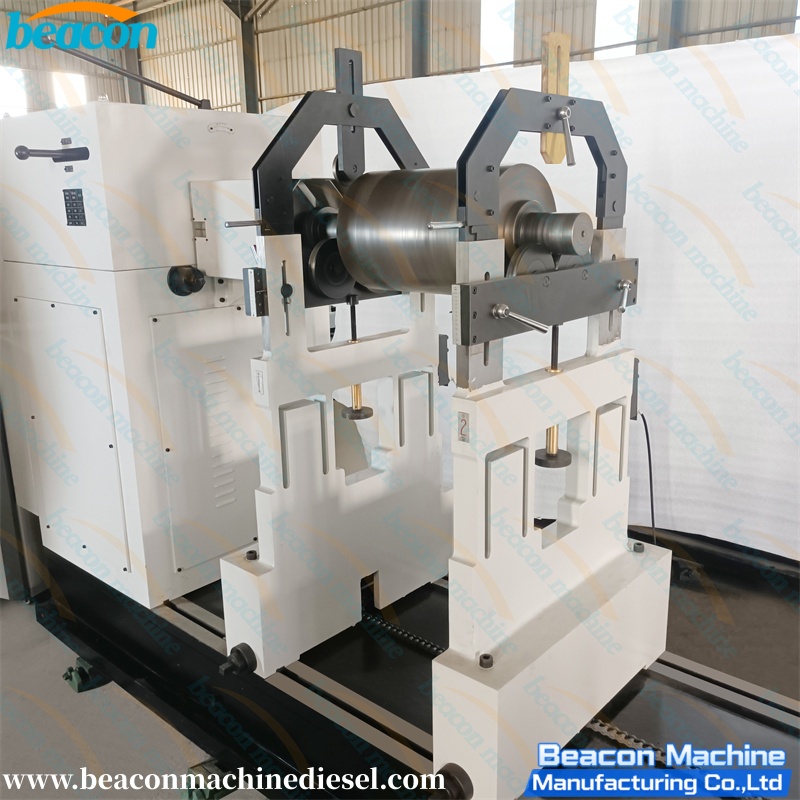

YYW-3000A Marine Diesel Engine Crankshaft Dynamic Balancing Machine

   YYW-3000A Marine Diesel Engine Crankshaft Dynamic Balancing Machine
     The YYW-3000A Universal Joint Balancing Machine is engineered for heavy-duty industrial applications, providing high-precision balancing for rotating workpieces weighing up to 3000 kg. By utilizing a universal joint drive, it delivers high transmission torque and operational stability, making it essential for manufacturers of large electric motors, fans, and paper-making rollers to eliminate vibration and extend equipment lifespan


    Wide Capacity Range: Handles workpieces from 100kg to 3000kg with a maximum diameter of 2400mm. Universal Joint Drive: Ensures steady power transmission, large startup torque, and easy operation. Precision Speed Control: Equipped with an 11kW motor, inverter speed regulation, and a 4-gear mechanical transmission (110–1170 r/min). High Accuracy: Achieves a minimum residual unbalance of ≤ 1 g·mm/kg with a reduction ratio of ≥ 90%. Customizable Design: Bed length, support journals, and swing diameter can be extended or increased based on user requirements. Robust Construction: Features a solid cast iron bed and durable roller carriage supports.
