YF-5 Single-Sided Vertical Balance Machine
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details

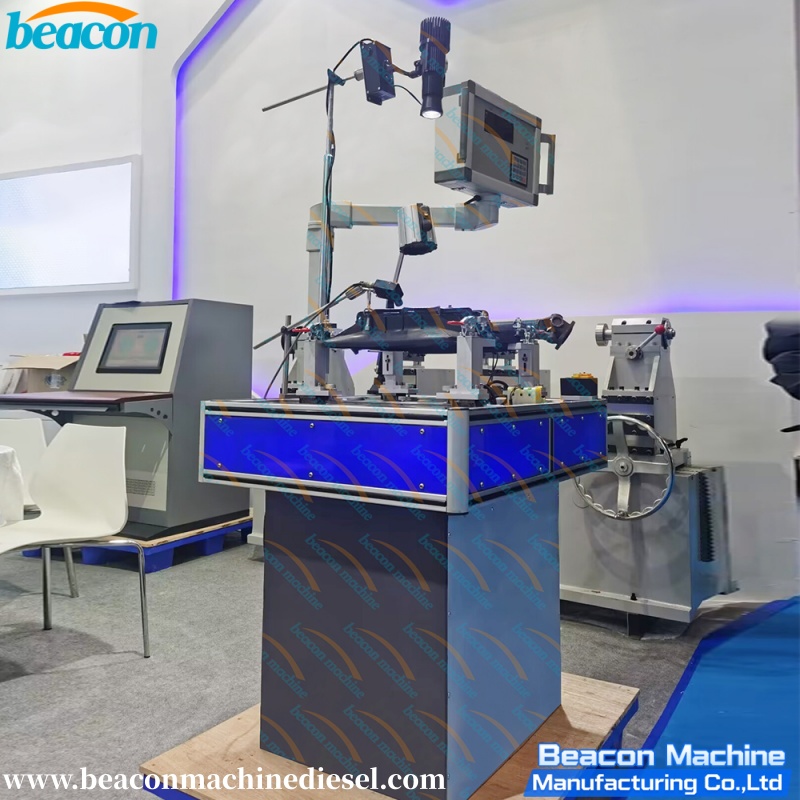

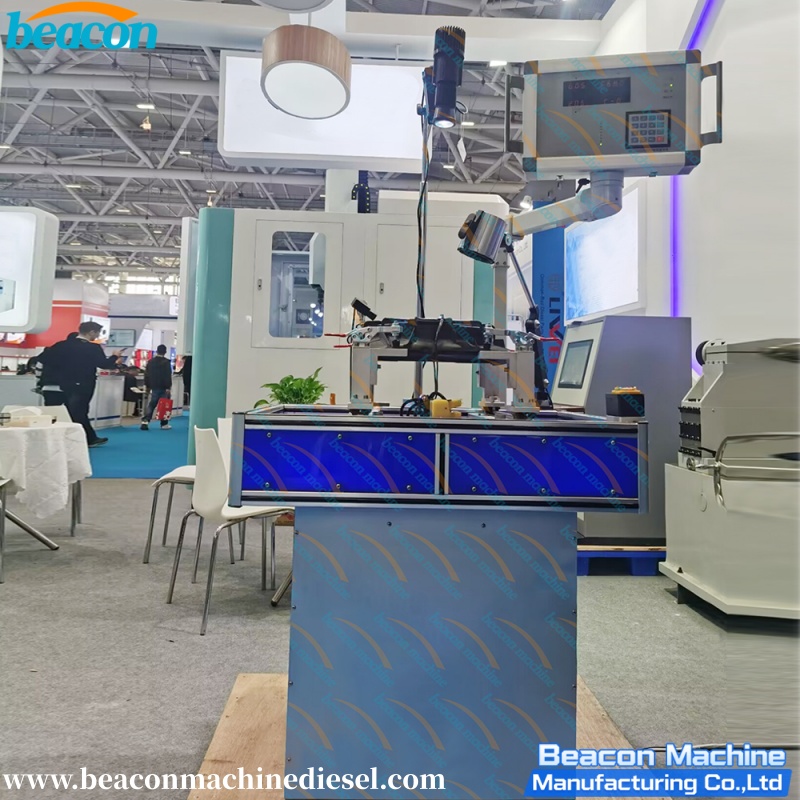

YF-5 Single-Sided Vertical Balance Machine
1.Product introduction: Use steel plate welding machine seat, Machining after annealing. Integrated design of machinery, measurement system and strong power control switch, Occupying a small area(Special requirements can be separated and installed). Suitable for single -sided balance measurement，Such as car accessories, etc., high -precision workpieces with special requirements.
1.Product introduction: Use steel plate welding machine seat, Machining after annealing. Integrated design of machinery, measurement system and strong power control switch, Occupying a small area(Special requirements can be separated and installed). Suitable for single -sided balance measurement，Such as car accessories, etc., high -precision workpieces with special requirements.
YF-5 Single-Sided Vertical Balance Machine Advantage
2.Product structure:
(1)Single -sided vertical braking function
(2)Using the most universal figures and simulated integrated electrical appliances
(3)The amount, speed, and phase are displayed in numbers

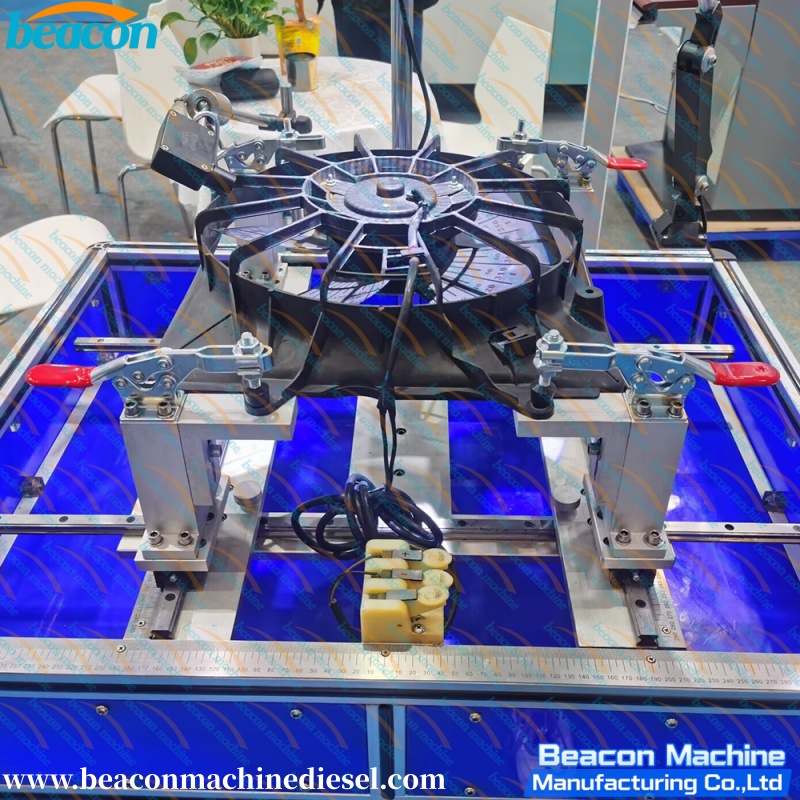

3.Application range: for fans.extraction fans,brakes.juice blenders range hoods ,blowers
4.Product advantages:
(1) with memory function
(2) Easy to operate
(3) easy installation
(4) instant results printing
(1)Single -sided vertical braking function
(2)Using the most universal figures and simulated integrated electrical appliances
(3)The amount, speed, and phase are displayed in numbers
3.Application range: for fans.extraction fans,brakes.juice blenders range hoods ,blowers
4.Product advantages:
(1) with memory function
(2) Easy to operate
(3) easy installation
(4) instant results printing
parameter
Type：YF-5
Mass of work（KG）：5
Max.dia of works（MM）：500
Balancing speed（R/MIN）：300-3500
Motor power（KW）：0.37
Min.achieveable unbalance：≤5
Unbalance reduction ratio（%）：≥90%
Machine tool length（MM）：1100
Net machine net weight（约KG）：120
Size LxWxH（MM）：1100x800x850
