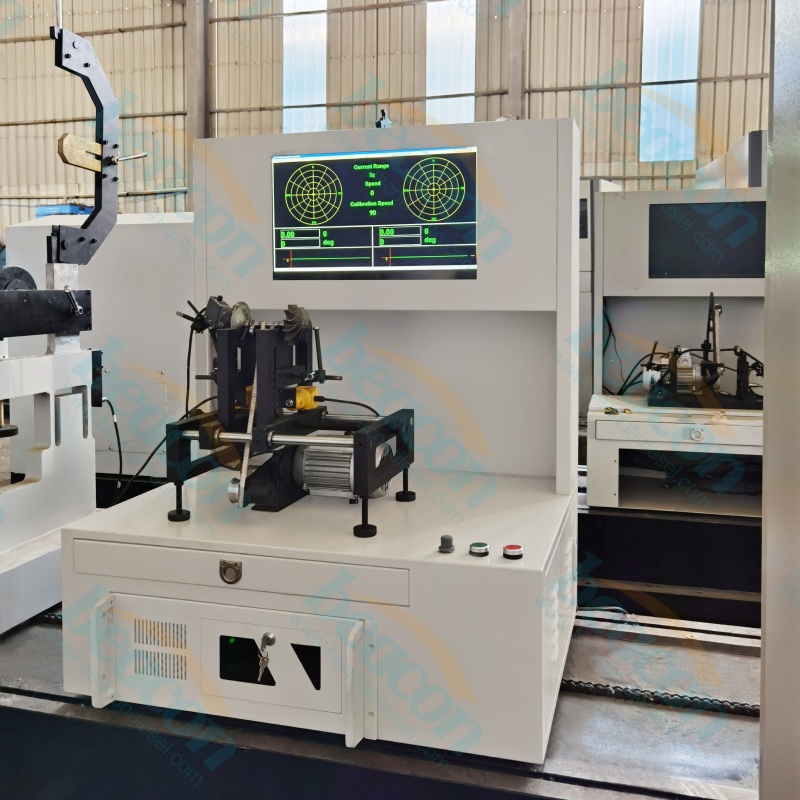

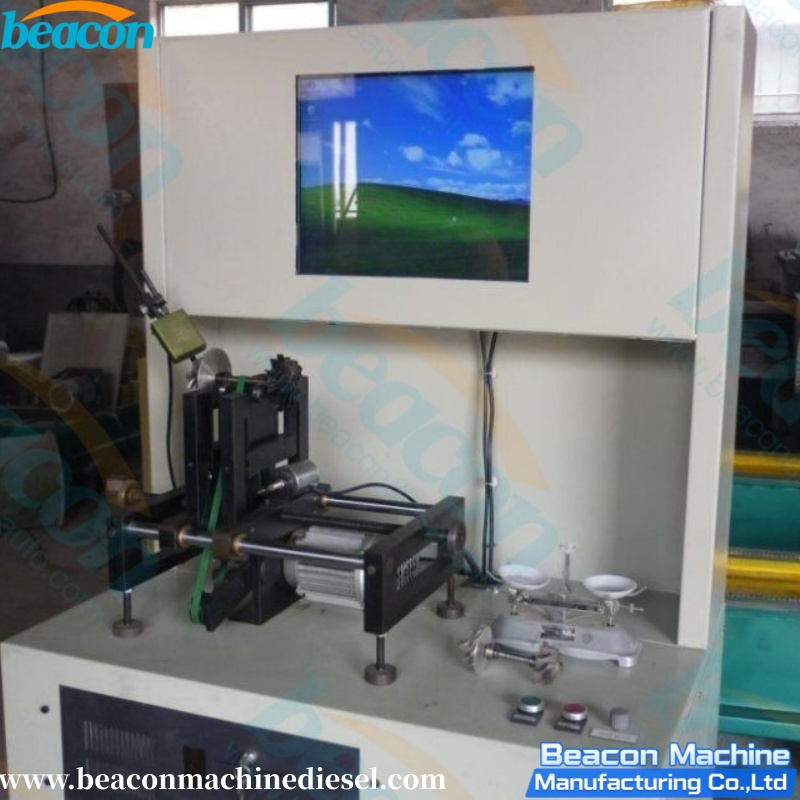

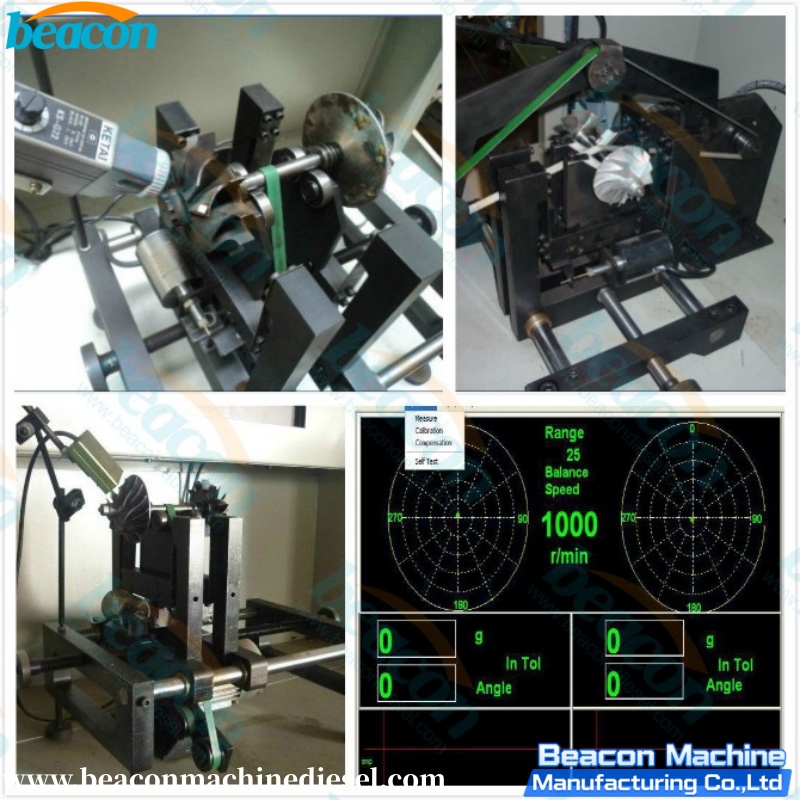

RYQ-5A Soft Bearing Rotor Dynamic Balancing Machine

      RYQ-5A Soft Bearing Rotor Dynamic Balancing Machine
     RYQ-5A Turbocharger Rotor Soft Bearing Dynamic Balancing Machine is a precision instrument designed specifically for balancing small-sized rotating bodies. Unlike hard-bearing machines, this model utilizes a soft-bearing suspension system , which offers higher measurement sensitivity, making it ideal for lightweight components like turbocharger rotors , micro-motor rotors, and small armatures weighing between 0.1kg and 5kg . The machine employs a ring belt drive system, which eliminates the vibration interference often caused by universal couplings, ensuring the highest possible balancing accuracy and surface finish protection.


1.Industrial control computer 19 "LCD color screens 2.Windows Chinese and English system double choice 3.With AM-2000 general microcomputer balance measuring system 4.Automatic program-controlled amplifier module 5.Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage 6.Qualified quantity showed that adjustment function measurement cycle 7.Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis 8.Vector graphics, waveform and out of balance, shows at the same time 9.Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
