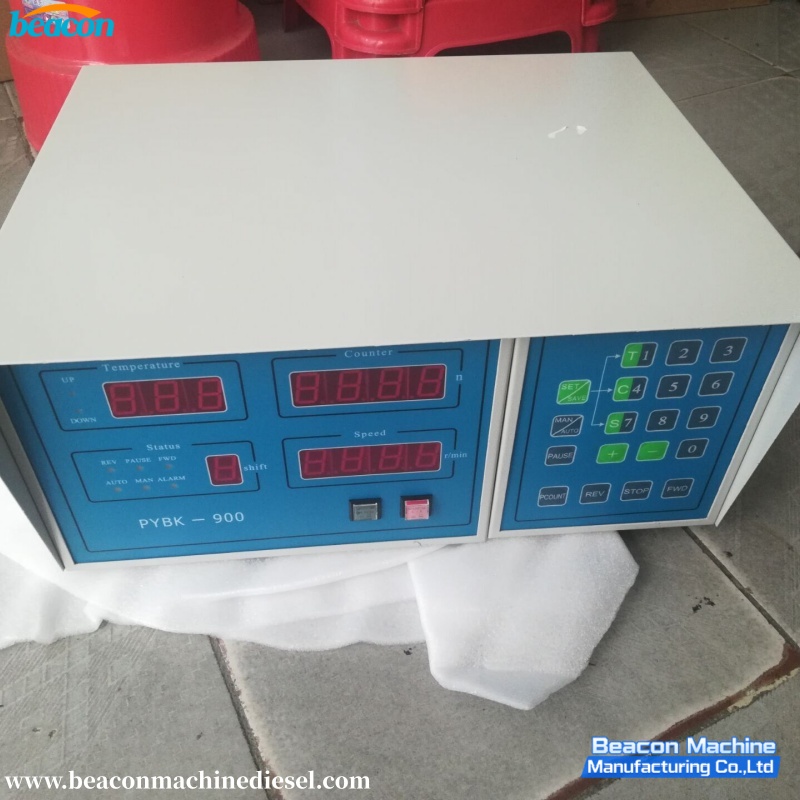

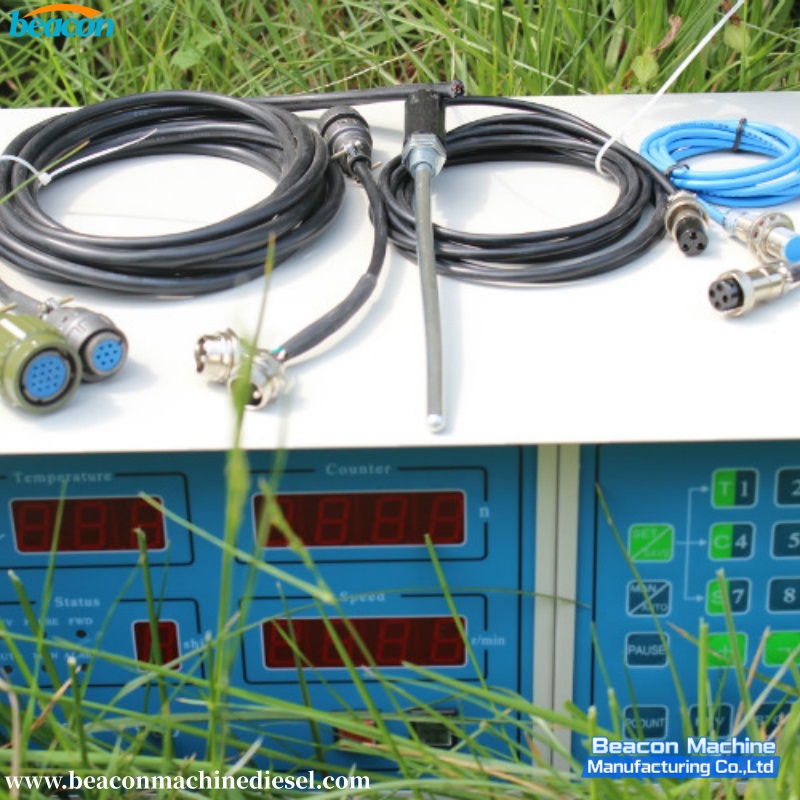

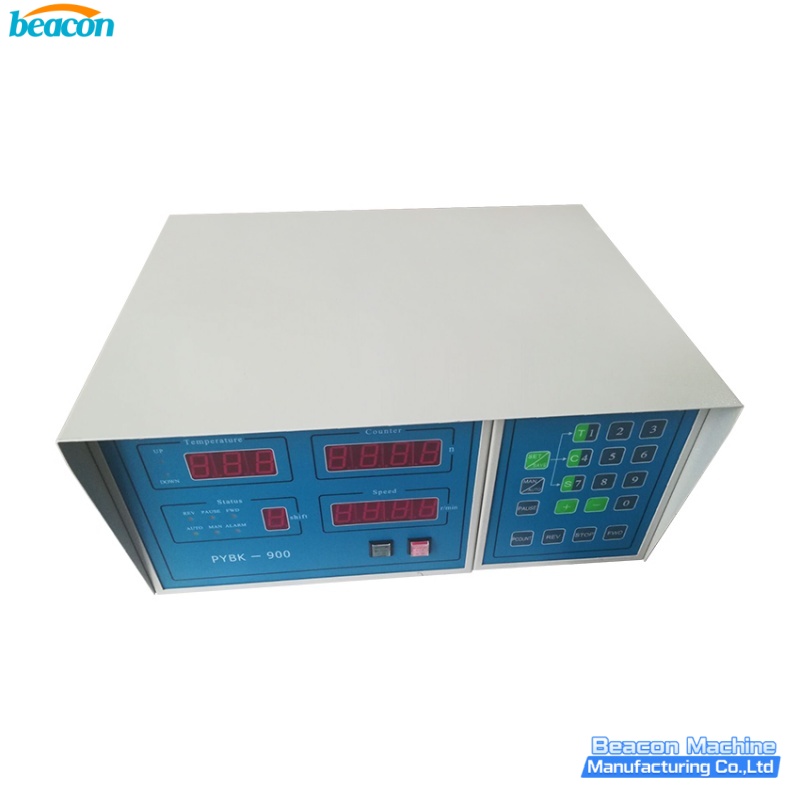

PYBK-900 Electronic Fuel Injection Pump Test bench Controller

Product Description
           PYBK-900 Electronic Fuel Injection Pump Test bench Controller  apparatus for diesel fuel injection pump test bench for frequency conversion timing injection pump test bench at the present time. The controller adopted SCM control advance technology. It can test and control also display temperature, control and display rotate speed, enactment spray times, temperature overtake protect, sensor fall down protect, adapt itself function, and adapt more different kinds of test-bench, control different gears. Whole design, keyset numeral input adopted on straight, simple and easy to see. Adopt fit together form in shape, easy to form and detach, and easy to repair. In electron circuit design, had manifold consider improving anti-jamming, so that the control can stably and reliably to work and for a longer time in industry locale and use condition. The controller special reserve the high speed data communication interface for future many sets of networking, achieve the modern management.

Product Features
1. enactment and memory ten groups principal axis rotate speed, numeral switch on directness.
2. adapt itself function, and adapt more different kinds of frequency conversion
3.direct switch by number
4. “+”,“-”key to tiny adjust rotate speed.
5. .The setting parameters inputed by keyboard
6. the count of oil injection set by digit
7. runaway indication and emergency stop
8. oil temperature up or down limit indication
9. rotate speed warp self-correcting.
10. display and keyboard by oneself, easy to control.
