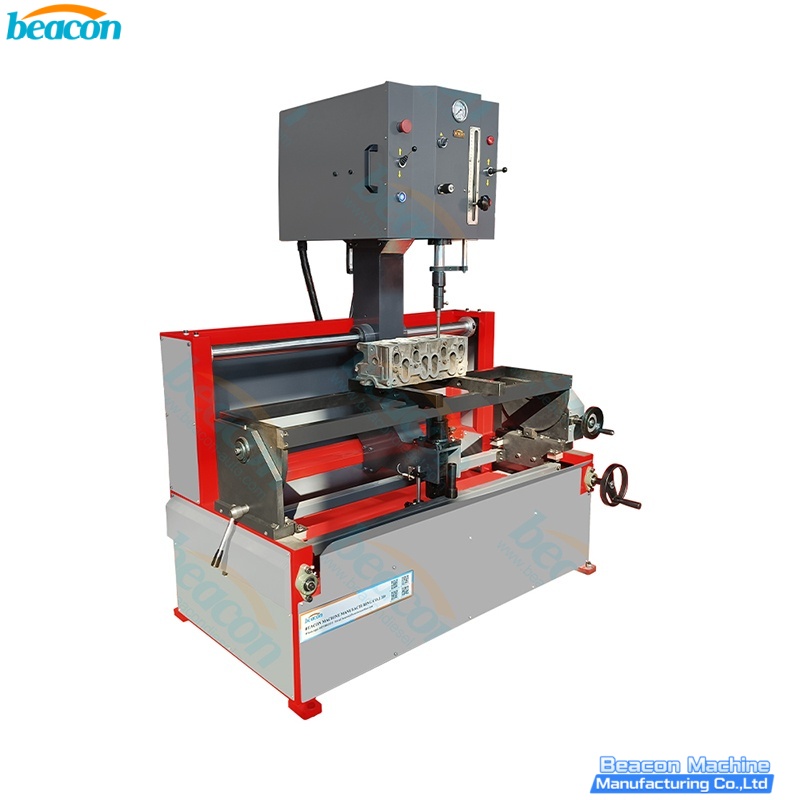

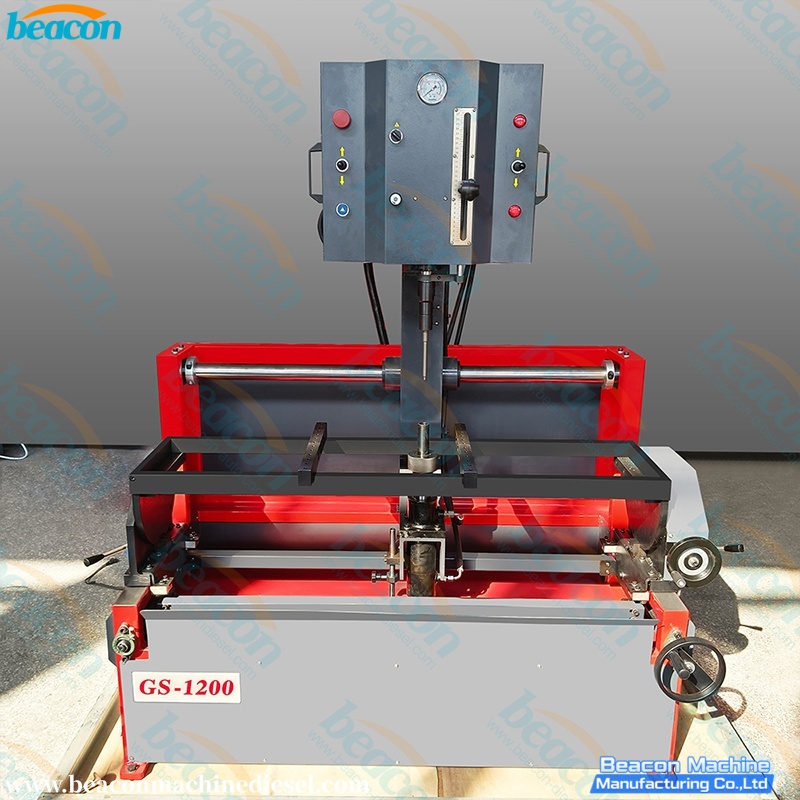

GS-1200 Hydraulic Valve Guide Removal and Installation Machine

GS-1200 Hydraulic Valve Guide Removal and Installation Machine

Product Introduction

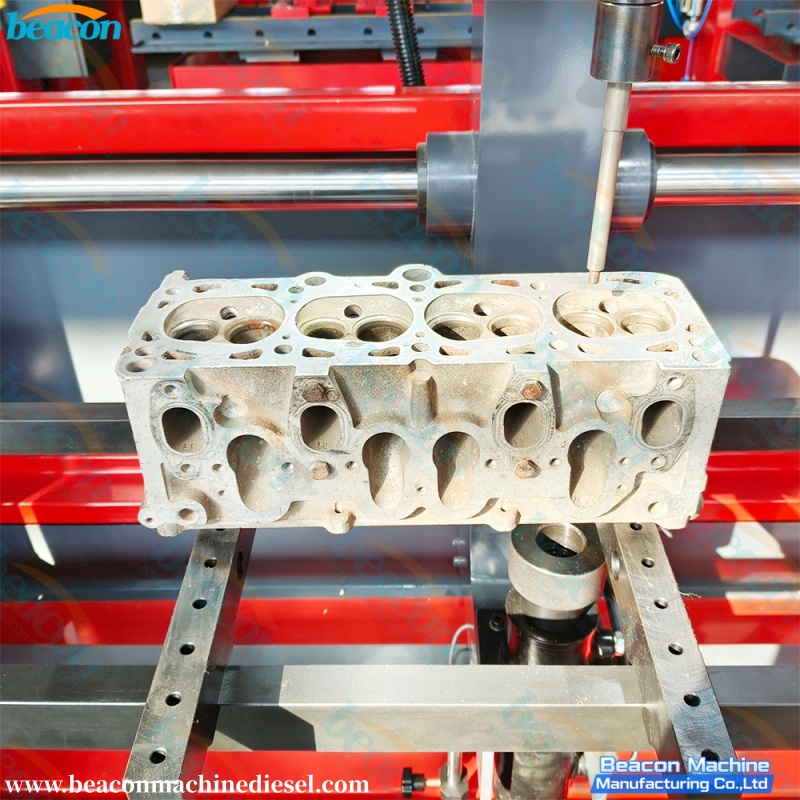

The GS-1200 Engine Valve Guide Removal and Installation Machine is a specialized hydraulic press designed for modern engine rebuilding workshops. It provides a safe, efficient, and professional solution for replacing worn valve guides without damaging the cylinder head.

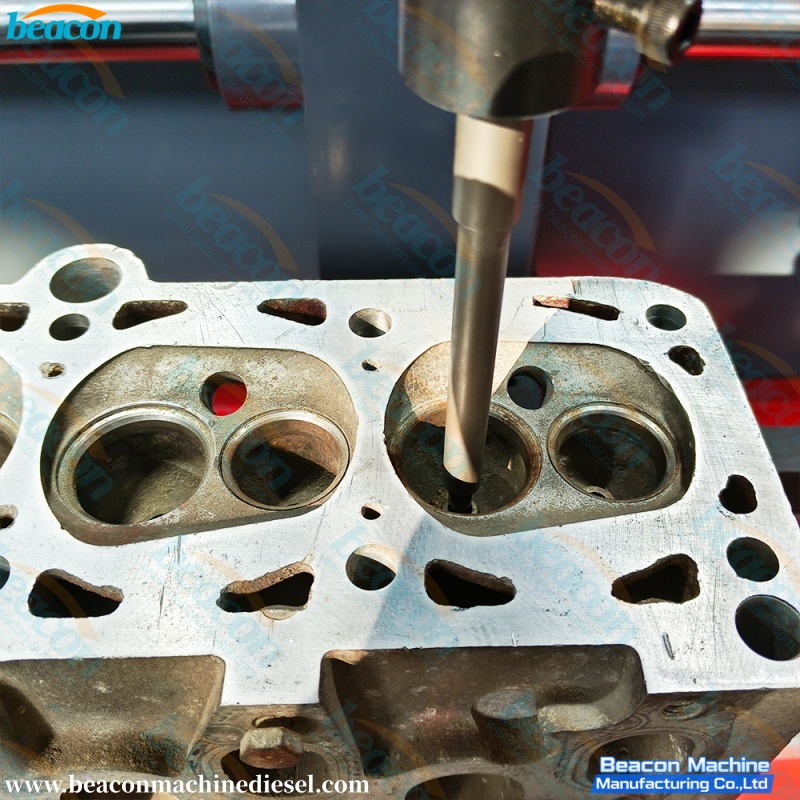

Unlike manual methods, the GS-1200 utilizes a powerful hydraulic system to smoothly press out old guides and install new ones with precision. The machine features a robust frame and a large capacity worktable , making it capable of handling cylinder heads from passenger cars to heavy-duty trucks (up to 1350mm in length). The user-friendly design allows operators to control the pressure and speed, ensuring high-quality results every time.

GS-1200 Hydraulic Valve Guide Removal and Installation Machine Advantage

Powerful Hydraulic System: Delivers an adjustable press force of 0–16 tons with a working pressure of 200 bar, easily handling even the tightest or seized valve guides.
Versatile Positioning: The worktable features a 50° rotation/tilting capability , allowing the operator to align the cylinder head perfectly with the ram, regardless of the valve angle.
Large Capacity: With a maximum cylinder head length capacity of 1350mm (53 in) , this machine serves a wide range of engines, from small automotive to large diesel truck heads.

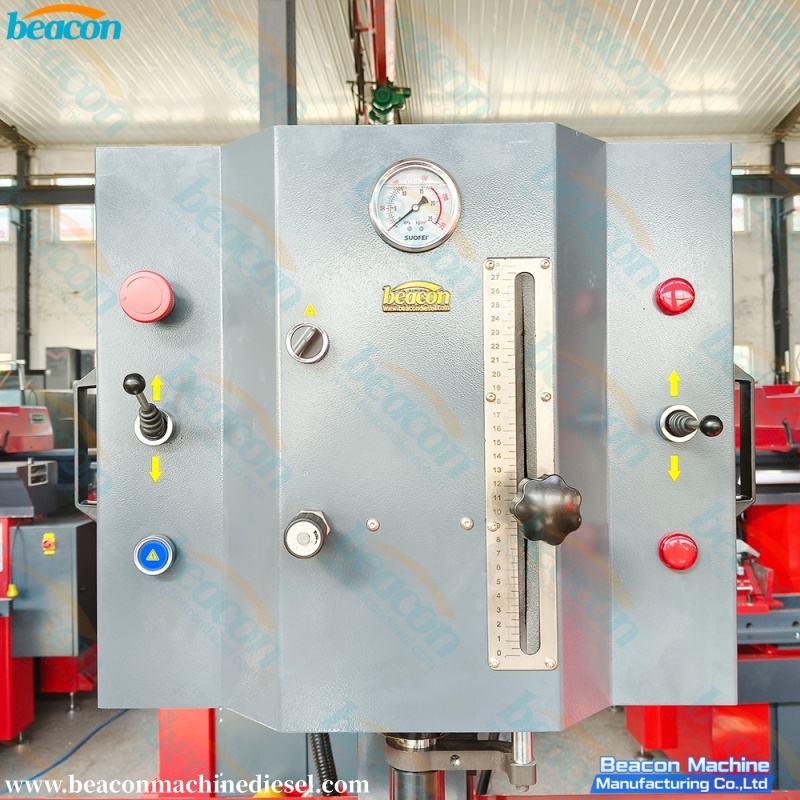

Precise Control: Features adjustable pressure (0–250 bar) and a controlled rod speed (28 mm/min), preventing damage to the cylinder head casting during the pressing process.

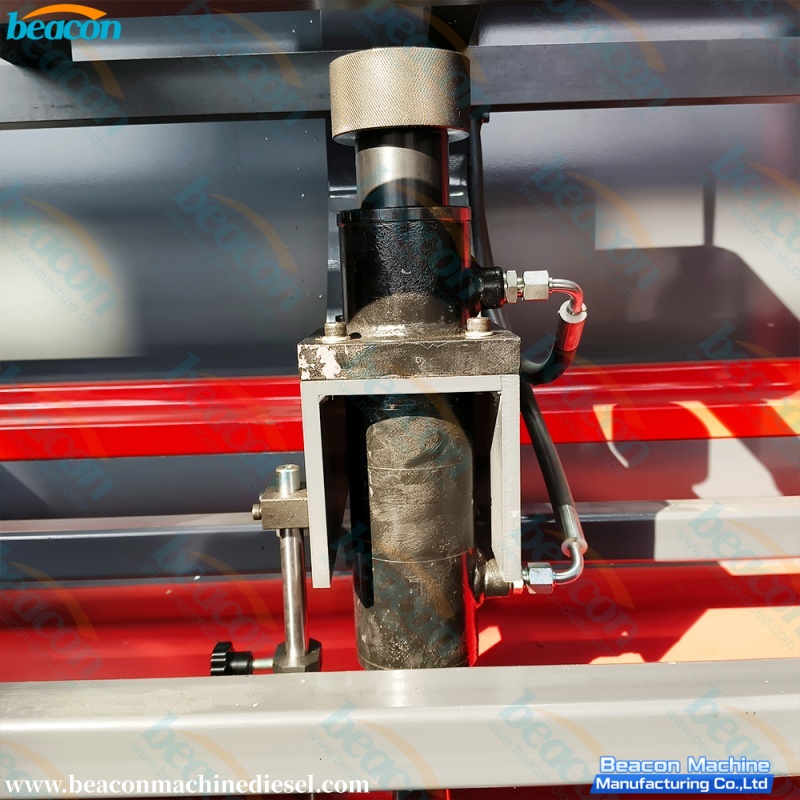

Dual Piston Operation: Equipped with both upper and lower piston travel (150mm / 120mm) for flexible operation and easy setup.
