F200 Common Rail Injector Tester for Solenoid Injectors with AHE Lift Measurement

The Beacon F200 is a compact common rail injector tester for solenoid-type CR injectors. It drives the injector with a solenoid pulse, reads the electrical and armature response, and shows the result on the front display, so a workshop can decide whether an injector is worth fitting back on the engine before it reaches the test bench.

Test functions

• Solenoid pulse drive with editable pulse width and frequency

• Intelligent automatic test sequence for solenoid CR injectors

• Arbitrary drive waveform editing, for injectors that are not in the built-in library

• Coil resistance and inductance measurement

• AHE (armature) lift measurement

Where the F200 fits in a workshop

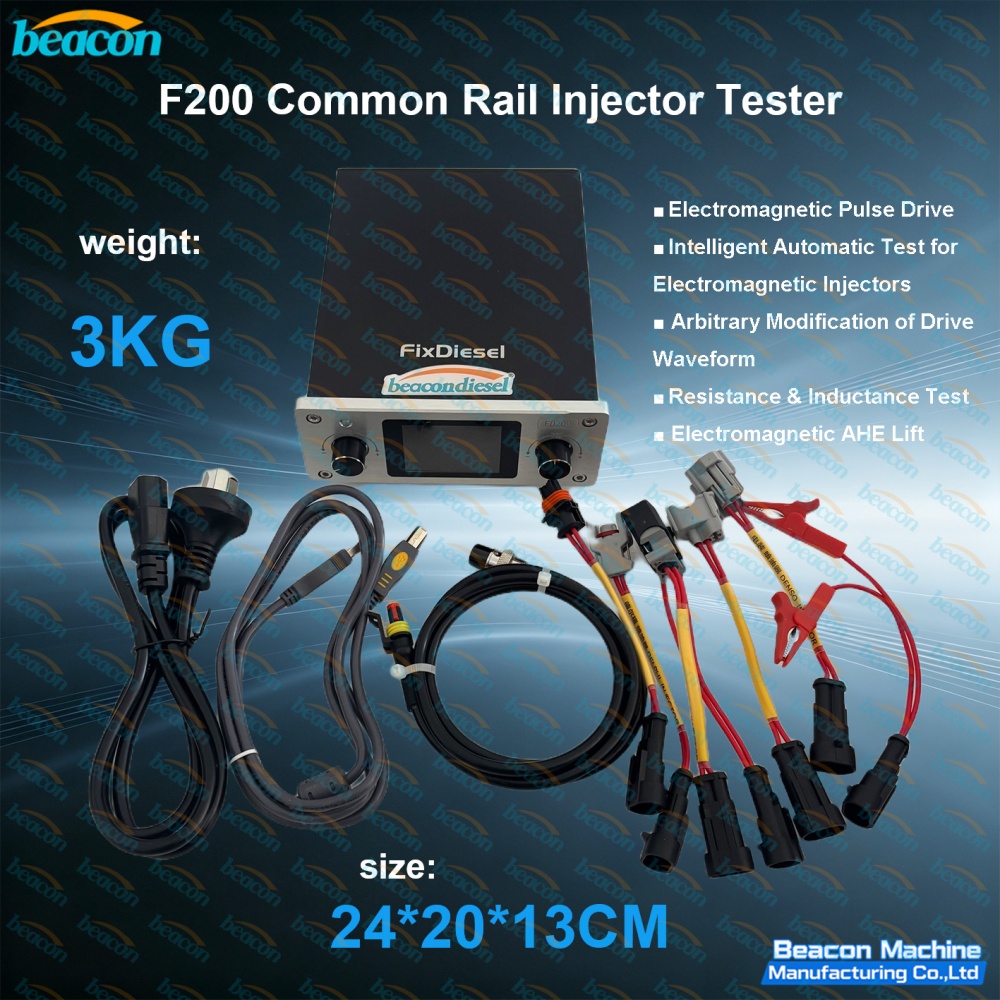

The F200 weighs 3 kg and measures 24 x 20 x 13 cm, so it sits on the bench beside the ultrasonic cleaner or the common rail test stand. Typical uses are incoming inspection of used injectors, sorting cores before rebuild, verification of a repaired injector after valve and nozzle work, and training new technicians on injector electrical behaviour.

What one test cycle gives you

Resistance, inductance and AHE lift are measured in the same cycle as the pulse drive, so the electrical verdict and the armature movement are read together instead of in two separate procedures. Drive waveforms can be edited and saved, then compared against a known-good injector, which keeps the pass/fail line on the shop floor the same from one technician to the next.

F200, F210 or F300?

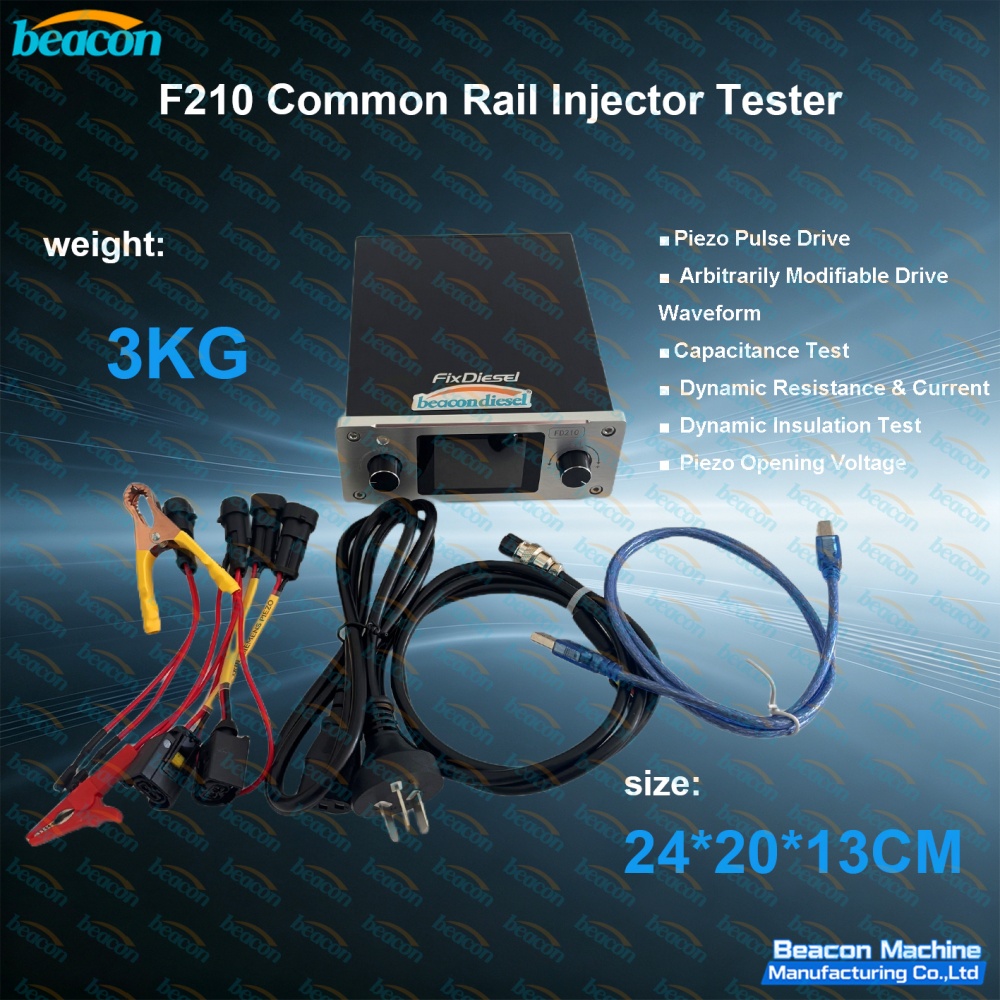

The F200 is the solenoid-only instrument. F210 covers piezo injectors. F300 combines both drive modes and adds metering valve (DRV) current and resistance testing, hydraulic buffer valve testing and free switching between Chinese and English interface.

Frequently asked questions

Can the F200 test piezo injectors?

No. Piezo injectors need the charge-controlled drive of the F210 or F300. The F200 drives solenoid injectors only.

Does the F200 need a high-pressure fuel supply?

No. It is an electrical tester: it excites the injector coil and measures the response. Spray and delivery testing is done on a common rail test bench.

Which injectors can I connect?

Solenoid common rail injectors whose connectors are covered by the supplied harness set. Adapters for uncommon connectors are available on request.

Is the F200 portable?

Yes. At 3 kg and 24 x 20 x 13 cm it is carried in one hand and used on any workbench.

• One instrument for the electrical diagnosis of solenoid common rail injectors

• Editable drive waveform, so injectors outside the built-in library can still be tested

• Automatic test sequence gives a repeatable pass/fail instead of a judgement call

• Resistance, inductance and AHE lift measured in the same cycle

• 3 kg and 24 x 20 x 13 cm: a bench-top footprint, carried with one hand

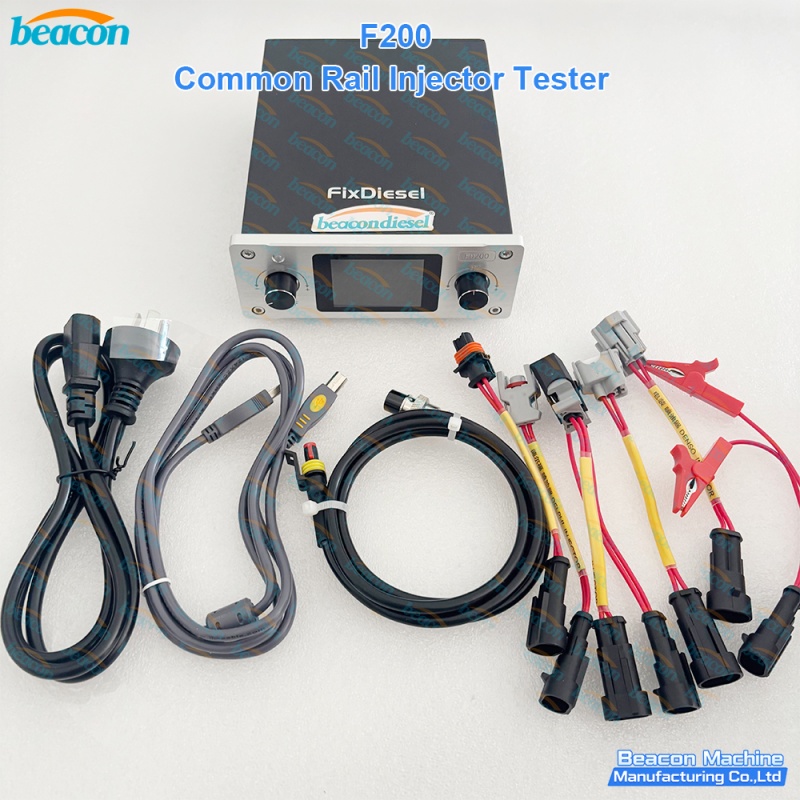

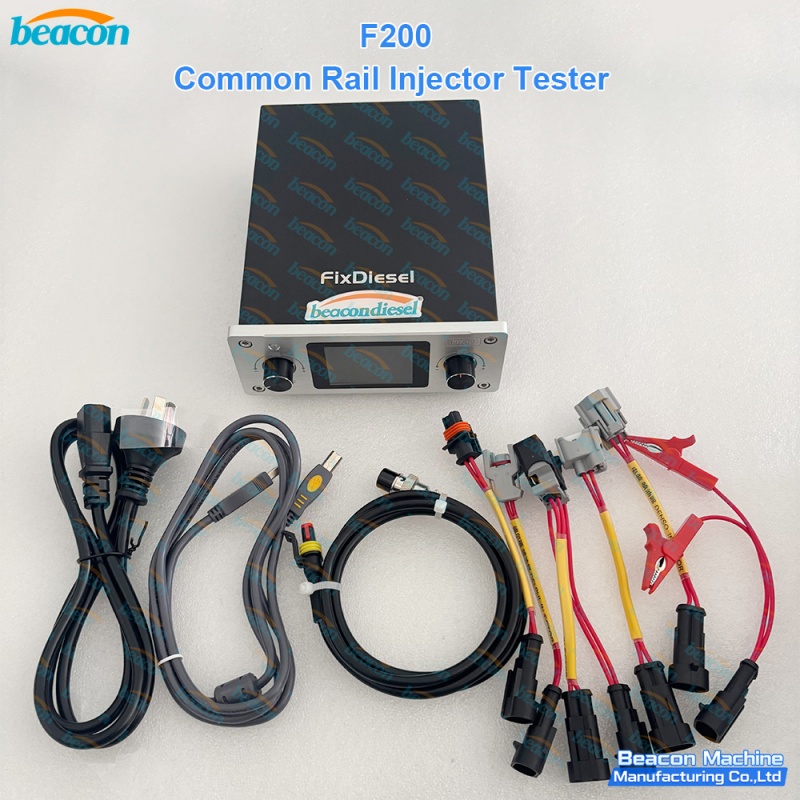

• Complete harness set supplied, ready for the common solenoid connector families
