Electronically Controlled In-line Pump Tester

Electronically Controlled In-line Pump Tester is a professional ECU signal simulator for diesel electronic inline injection pumps. Support offline testing for EDC inline pump, check solenoid response, speed control and fuel injection performance for diesel repair workshops.

Product Overview

The Electronically Controlled In-line Pump Tester is a dedicated ECU driving simulator designed for diesel electronically controlled inline injection pumps. It allows complete off-bench diagnosis without large full-size test bench. This equipment is specially optimized for EDC inline pumps and Zexel RED4 electronic inline pump systems, covering most mainstream electronic inline pump models on the market.

Core Test Functions

• Simulate standard factory ECU signal for electronic inline injection pump

• Test solenoid working status, response sensitivity and electrical performance

• Detect pump speed control accuracy and signal synchronization

• Verify fuel injection control performance and fuel delivery stability

• Quickly judge electronic faults and mechanical wear of EDC inline pumps

Main Features

• Professional signal simulation for EDC electronically controlled inline pump

• Stable signal output, no damage to precision pump electronic components

• Portable desktop design for convenient offline bench testing

• No need for large comprehensive pump test bench, cost-effective solution

• Compatible with Zexel RED4 and other electronic inline pump series

Compatible Pump Types

• EDC Electronically Controlled In-line Injection Pump

• Zexel RED4 Electronic In-line Pump

• Other diesel electronic control inline fuel pumps

Application Scenarios

Suitable for diesel repair workshops, pump remanufacturing factories and engine service stations. Widely used for fault diagnosis, overhaul testing and performance calibration of electronically controlled inline injection pumps for heavy-duty trucks, construction machinery and agricultural diesel engines.

Package List

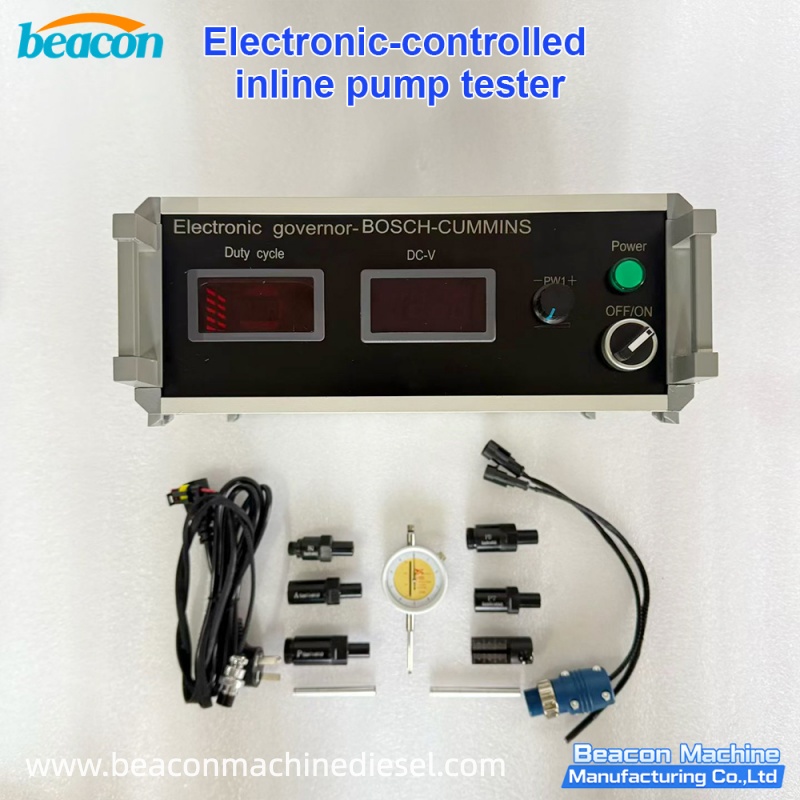

• 1 × Electronically Controlled In-line Pump Tester Main Unit

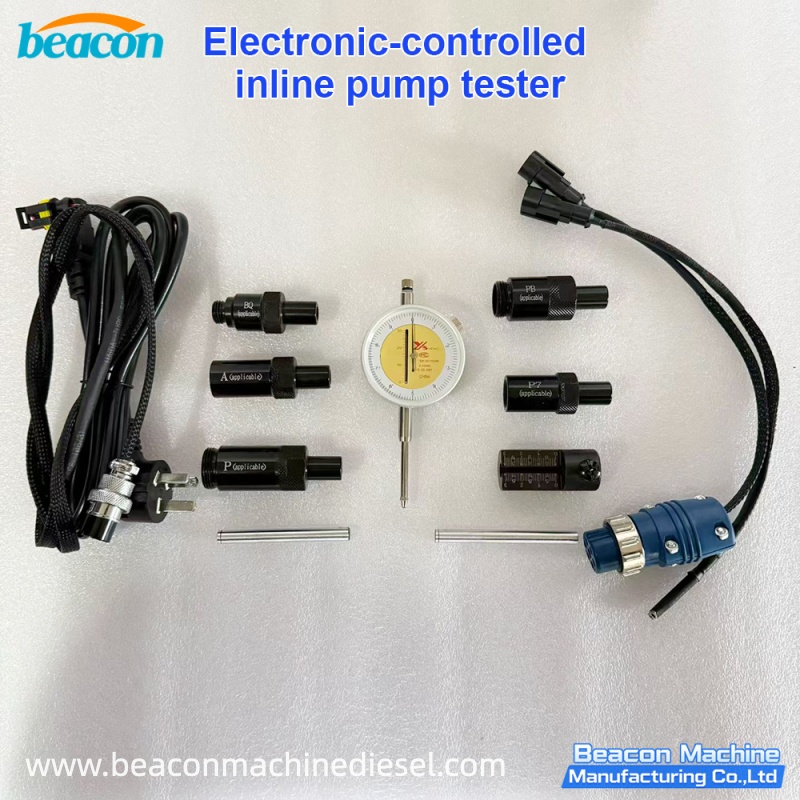

• 1 × Special Matching Wiring Harness

• 1 × User Manual
