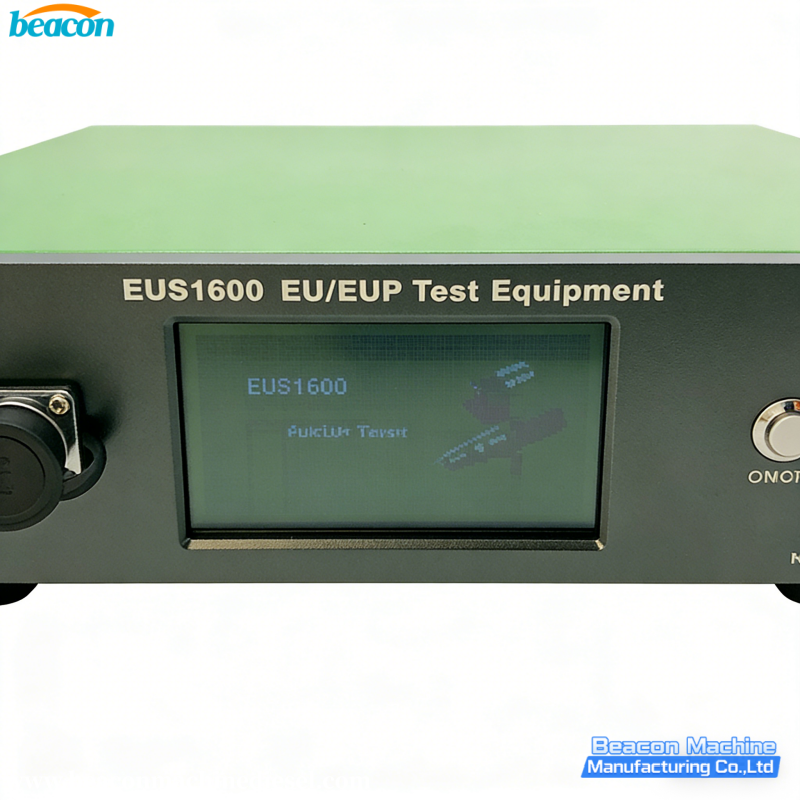

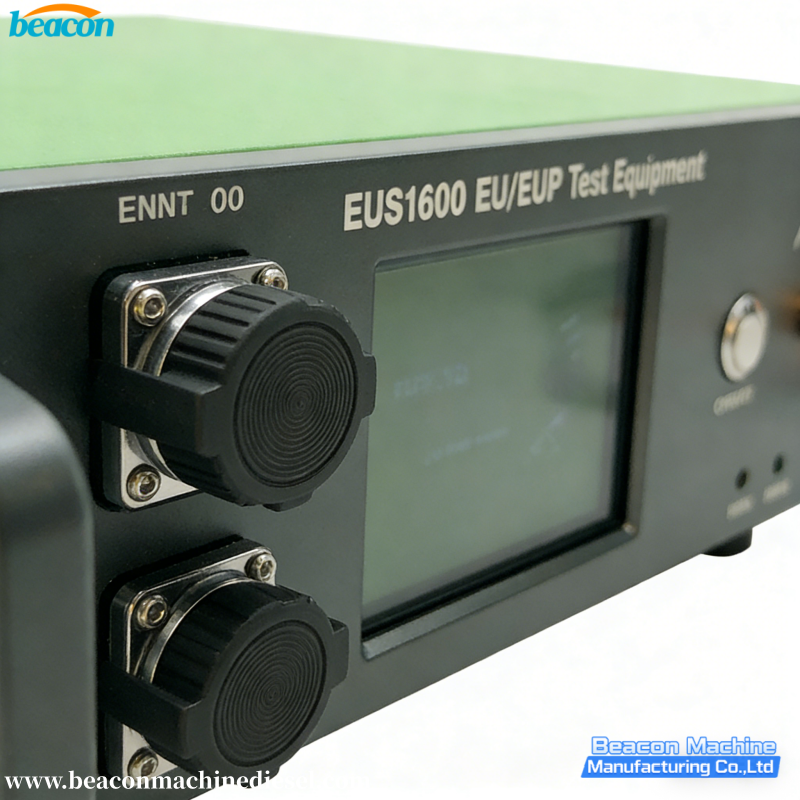

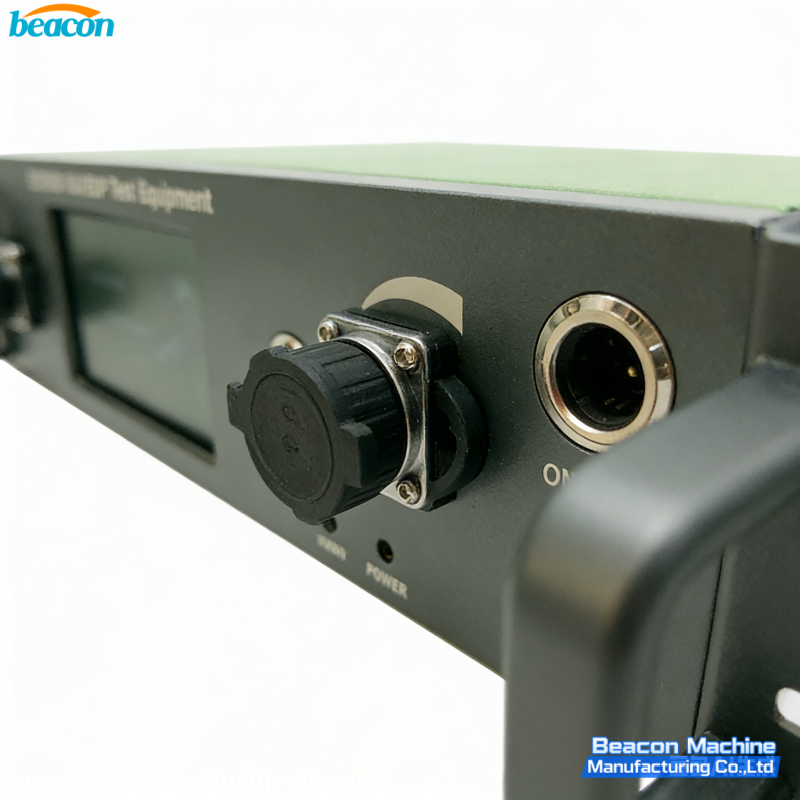

EUS1600 EUI/EUP Electronic System Control Tester

EUS1600 EUI/EUP Electronic System Control Tester
Function introduction：
EUS1600 can be connected to a laptop for testing, It can also be operated with its own touch screen.
1.Support all types of EUI/EUP tests (test plan can be added and edited) (Including electromagnetic, piezoelectric, double pulse M11, double solenoid valve dephi E3，HPI X15,QSK60) 2.Support hall, magnetoelectric, encoder cam signal input;
3.Support BiP signal input and display (need BiP sensor and adapter);
4.Support flow sensor signal input and display;
5.Injector resistance, inductance or capacitance can be measured (standard data can be added);
6.It can drive an electromagnetic injector or a piezoelectric injector, (Built-in more than 3,500 standard data);
7.IQA coding of common rail injector can be generated (optional).
8.Support common rail injector opening pressure/opening pulse width test, single injection test;
9.Support AHE lift test of common rail injector;
10.It can drive CAT HEUI injector (built-in test plan);
11.The drive current and voltage of the injector are settable;
12.The drive waveform can be displayed (the same as the waveform measured by the oscilloscope);
13.More than a dozen language interfaces are available;
14.It can be remotely assisted on the Internet and can be upgraded with one key;

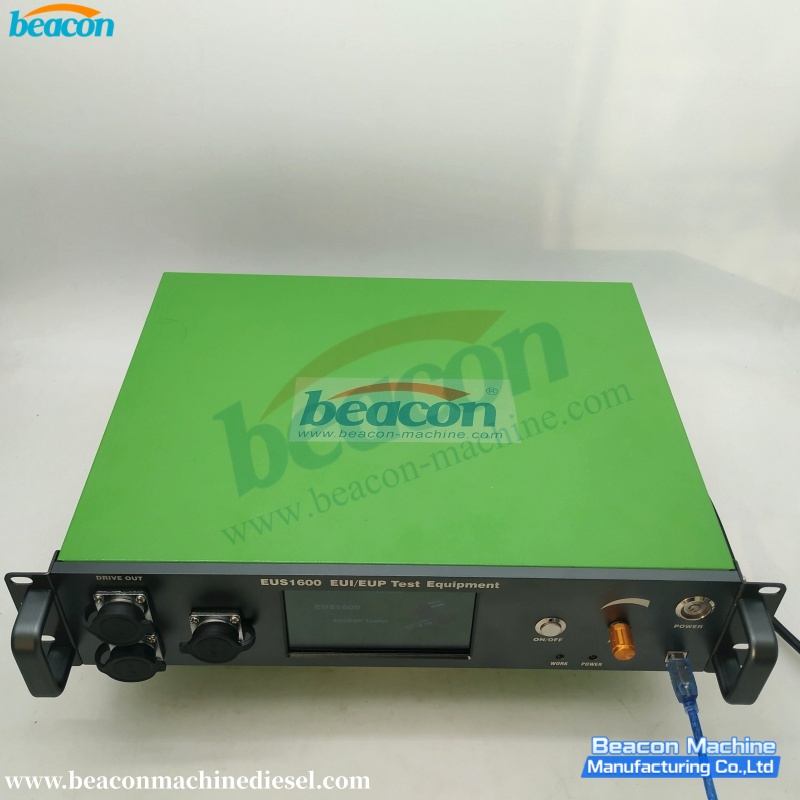

15.Standard 2U chassis design, high-grade aluminum alloy panel, with fixed ears, easy to fix to the cabinet.

Product Features:
(1) The EUI/EUP/HPI tester can test the EUI, EUP and HPI of  Bosch, Caterpillar, Cummins, Delphi, including Delphi E3 double solenoid valve EUI ;
(2) The tester can be connect to a laptop for test;
(3) The tester can connect a monitor with optional computer for test(optional );
(4) Can connect the flowmeter to automatically measure the inject fuel quantity and compare it with the standard data.
