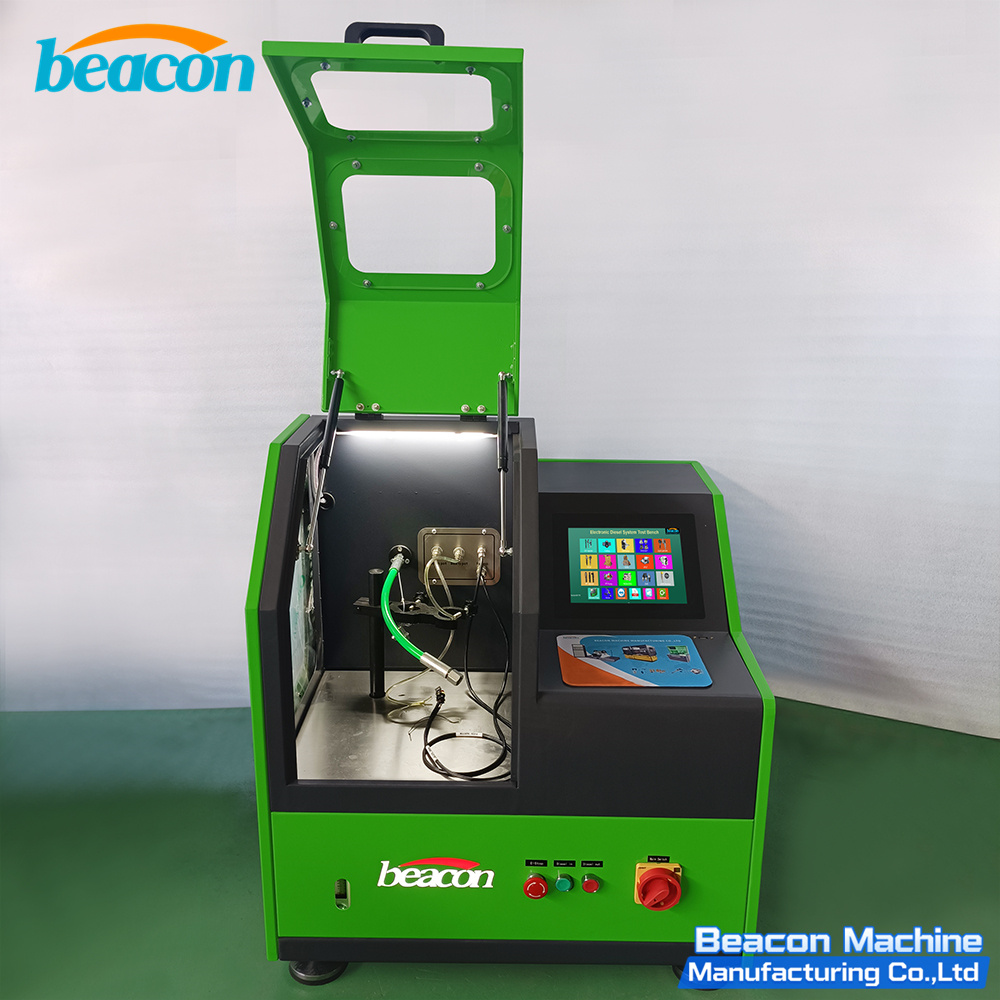

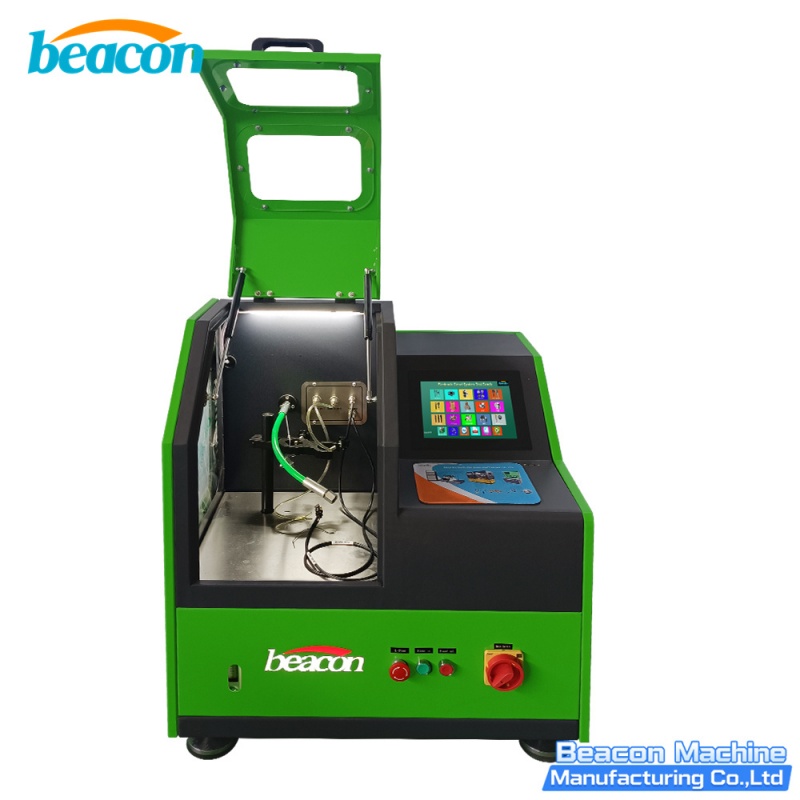

EPS208 Auto Engine Testing Common Rail Piezo Injector Coding Test Bench

EPS208 Auto Engine Testing Common Rail Piezo Injector Coding Test Bench

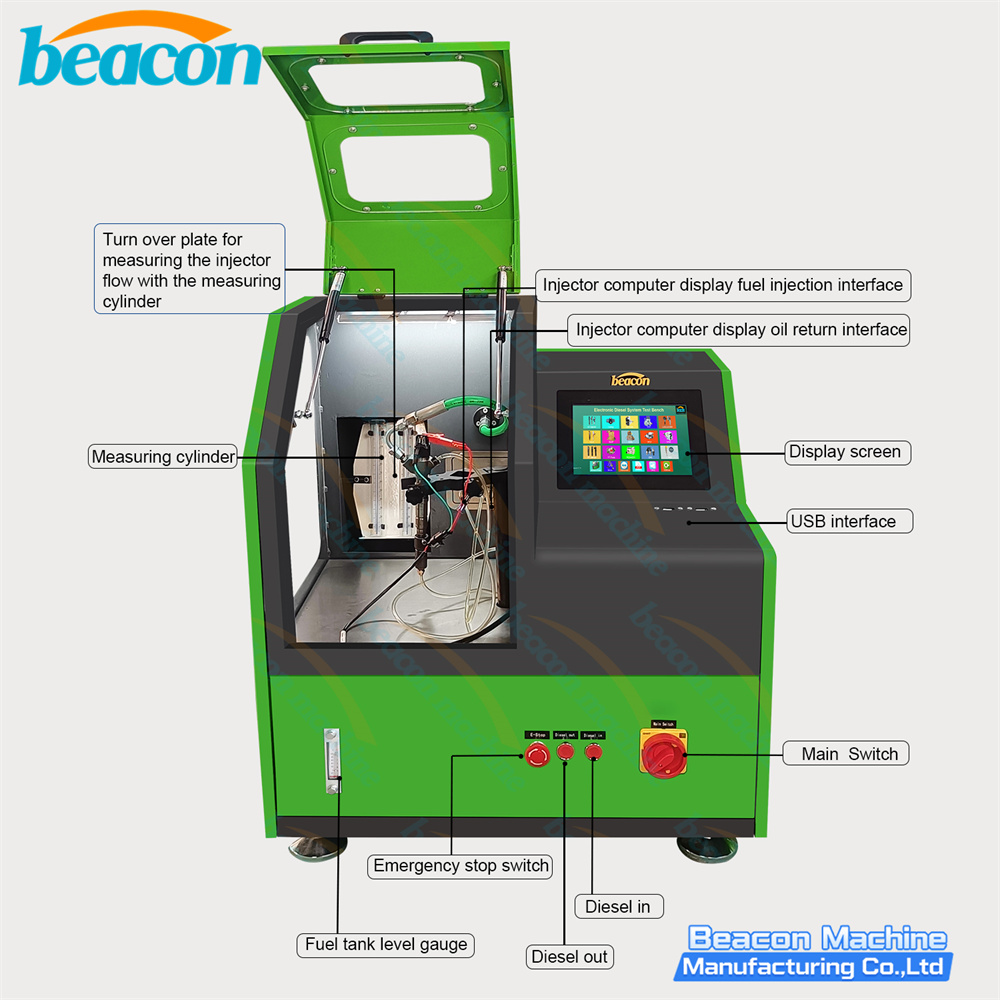

Differences between EPS205 and EPS208: 1. The motor power is different, EPS205--2KW,EPS208-2.6KW 2. EPS208 additionally adds a separate oil tank pump, EPS205 needs to use CP1 pump 3. EPS205 test by flow sensor,EPS208 can test by flow sensor and measuring bottle,accoriding to your request. 4. EPS208 comes standard with tank level gauge, emergency stop switch, EPS205 non-standard

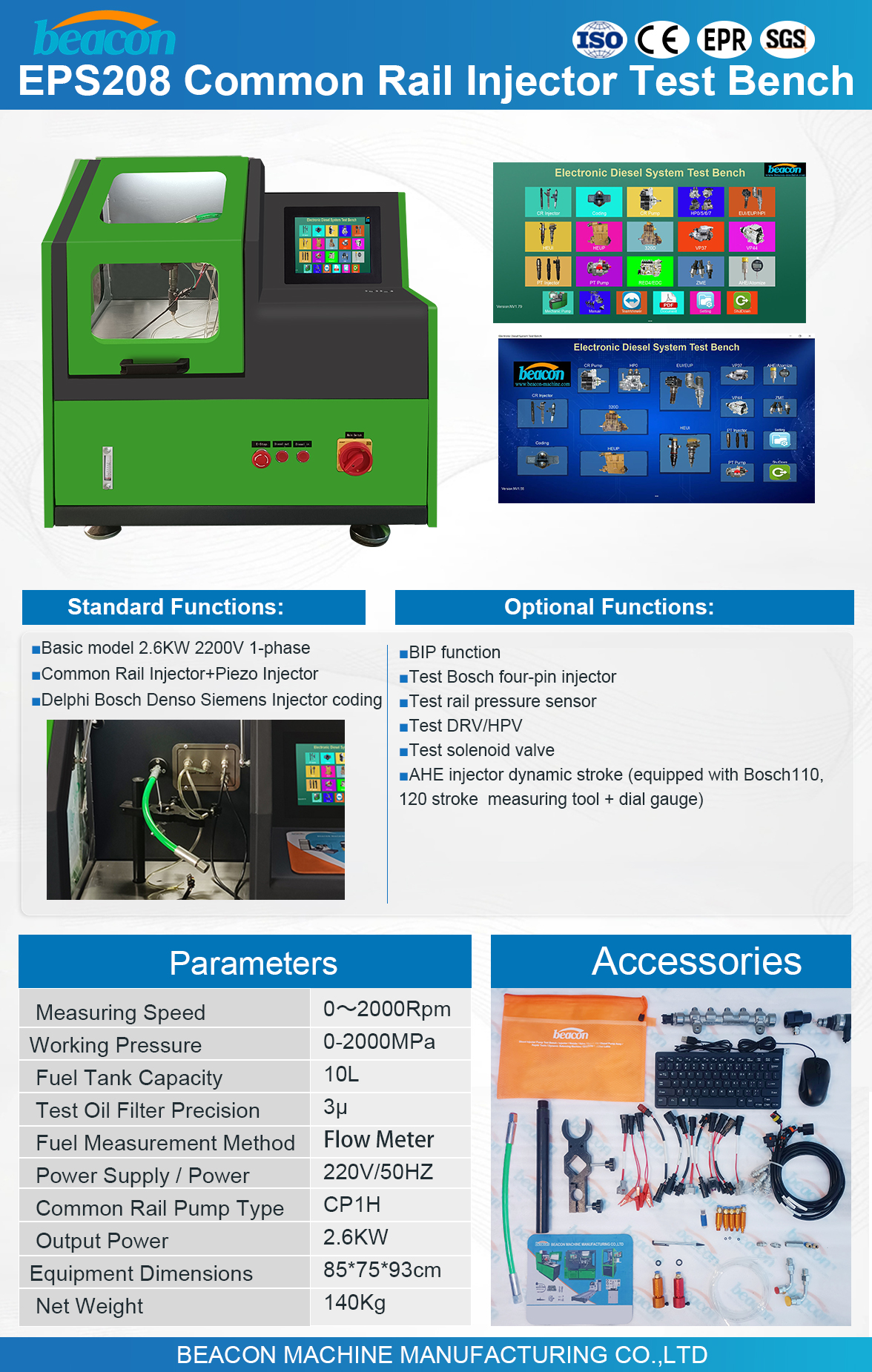

EPS208 diesel fuel injector test equipment Main parameter （Ⅰ）Support for high-speed solenoid valve common rail injector and third generation high pressure common rail technology of piezoelectric crystal common rail injector (optional function); （Ⅱ）Single channel common rail injector; （Ⅲ）Support for multiple rail pressure sensors（BOSCH/DEOSN/DELPHI）； （Ⅳ） Intelligent PID algorithm, pressure control more accurate; （Ⅴ） Hardware and software short circuit protection, the machine is more reliable; （Ⅵ） Multi-lingual selection, Chinese / English / Russian; （Ⅶ）Safety protection design to prevent operators from misoperation, use more secure.

Function introduction

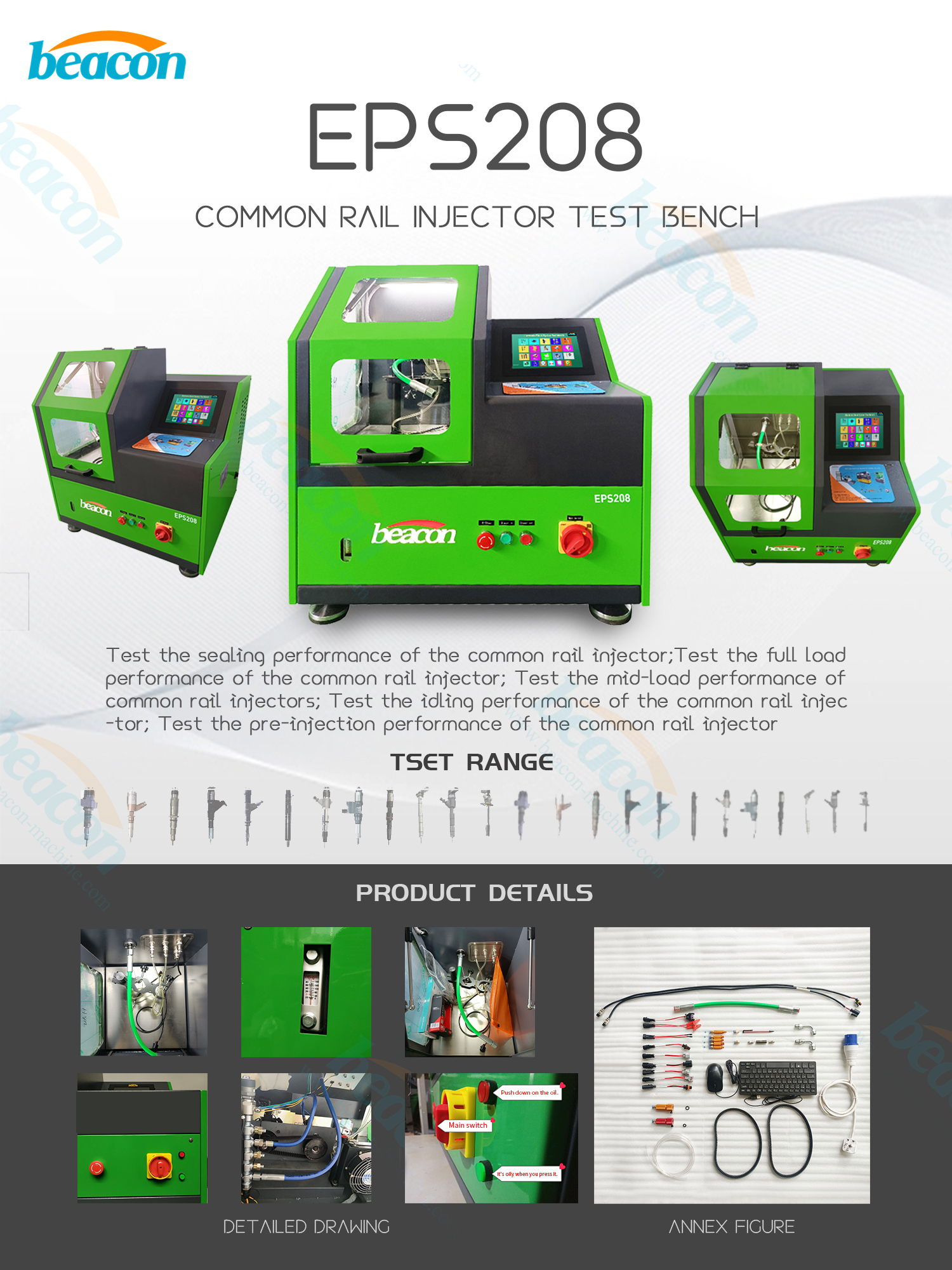

1. Test the common rail injector
2. Test the piezo injector
3. Injector coding
Optional features
1 BIP function
2 AHE injector dynamic stroke (with 110, 120 stroke measuring tool + dial gauge)
3 Rail pressure sensor test
4 DRV/HPV test 5 Solenoid valve test 6 4-pins injector test
