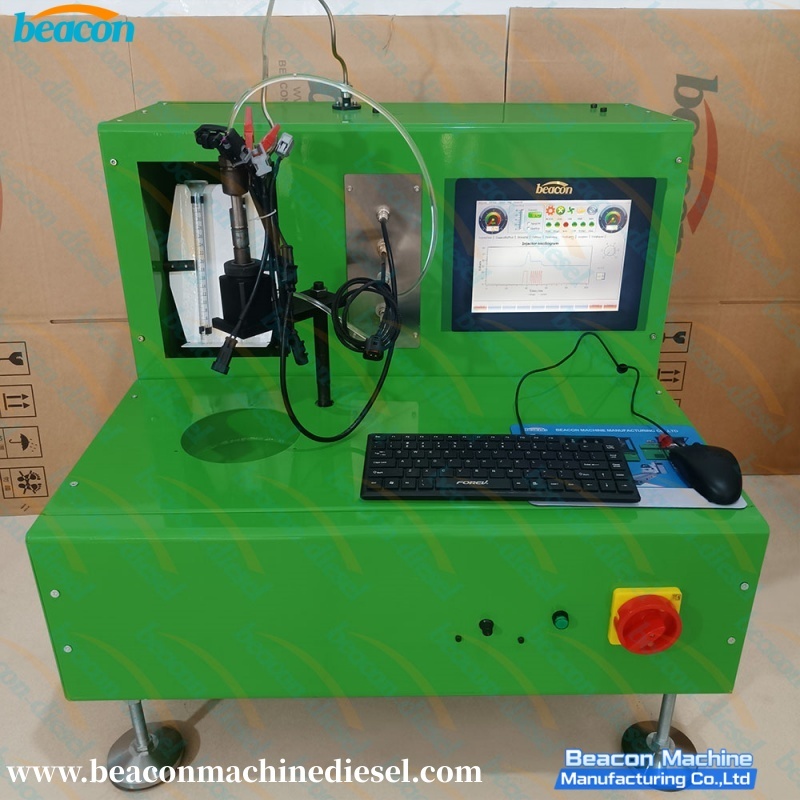

EPS117 High Pressure Common Rail Diesel Fuel Injector Test Bench

  EPS117 High Pressure Common Rail Diesel Fuel Injector Test Bench

EPS117 Common Rail Injector Test Bench: Automatically Pressure Controlled, with Frequency and Pulse Display on Screen.

It can test common rail injectors from BOSCH, SIEMENS, DELPHI, and DENSO.

Advanced technology ensures steady performance and precise measurement.

Injector testing includes leakage, injection oil quantity, and back oil quantity (pre-injection, idling, emissions, full load).



 1.Model: EPS117
2.Machine voltage: 220V single phase
3.Color: green, yellow, blue, black, red, etc.
4.System update: automatic update or Teamviewer
5.After-sales service: The machine can be remotely checked for faults via Teamviewer
6.Warranty: 1 year 7.Delivery time: estimate 10~15 days
8.Payment Terms: Alibaba : Paypal, Bank Transfer, Credit/Debit Card, etc.
9.Currency: USD, RMB, EUR, RUB, SGD, HKD, etc.

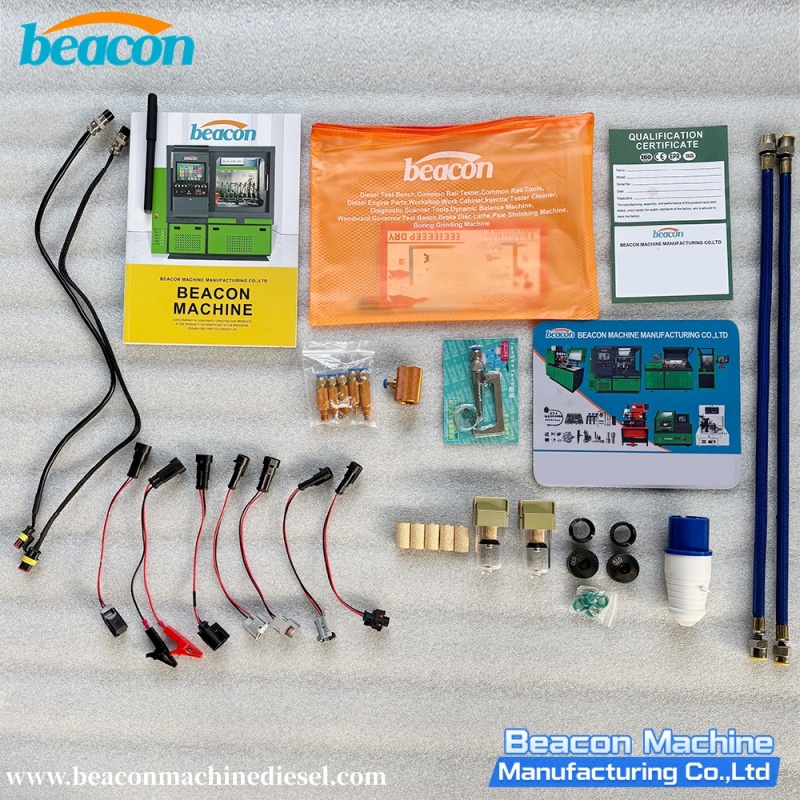

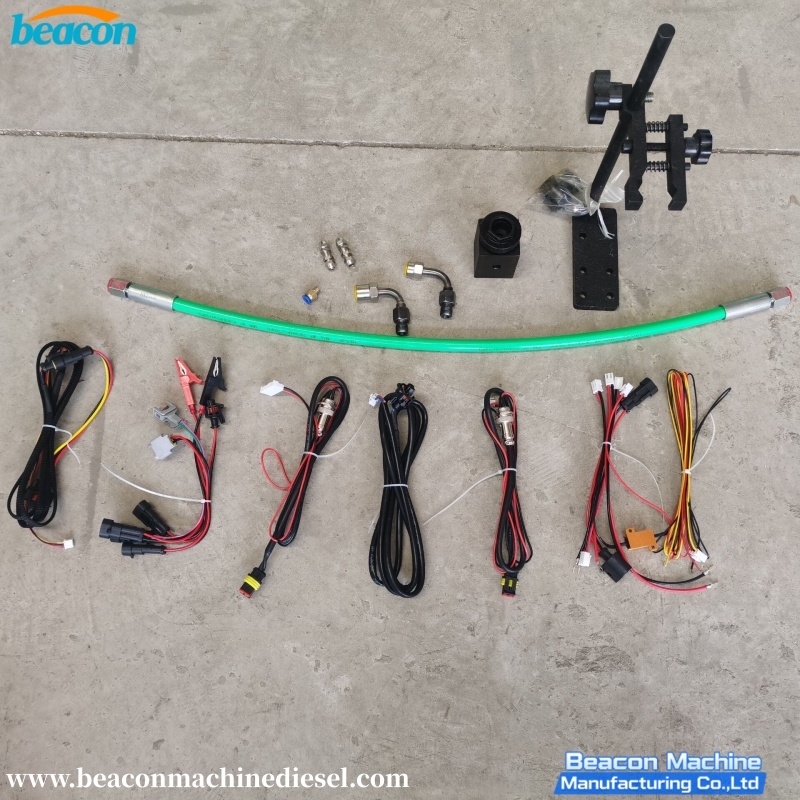

10.Machine Parts: We can provide all spare parts for the machine
11.Machine Training: We can provide the test video of the machine, or you can come to China, the factory to learn to operate the machine
12.Packing size and weight: 800*750*800 150Kg
13.Shipping terms: EXW ,FOB .CFR .CIF ,DDP optional, Loading port: Qingdao, China, or your designated port
Beacon Machine EPS117 Common Rail Injector Test Bench for Sale EPS208 EPS211
1.Test common rail injector/ Piezo injectors,includes testing Bosch CRIN4 injectors;
2. injector resistance and capacitance test;

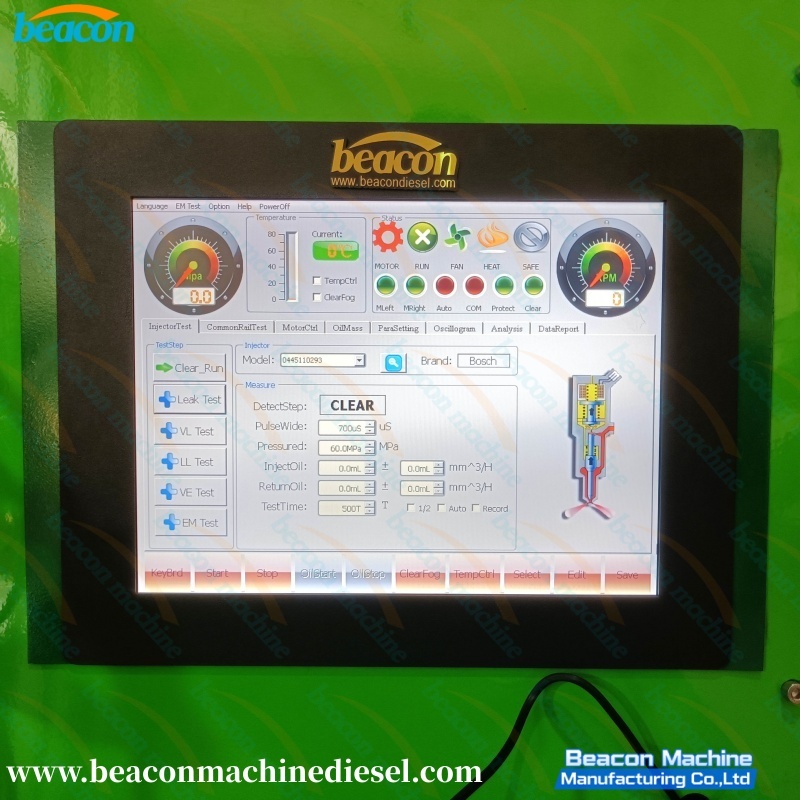

3. Touch screen;
4. Test result can print;
5. Update online;
6. Solenoid vale closing time test (EOT):
7. Injector response time test (RT);
8.MDP (opening pulse width) test;
9. NOP (opening pressure test);
10. Injector response time test(Optional);
