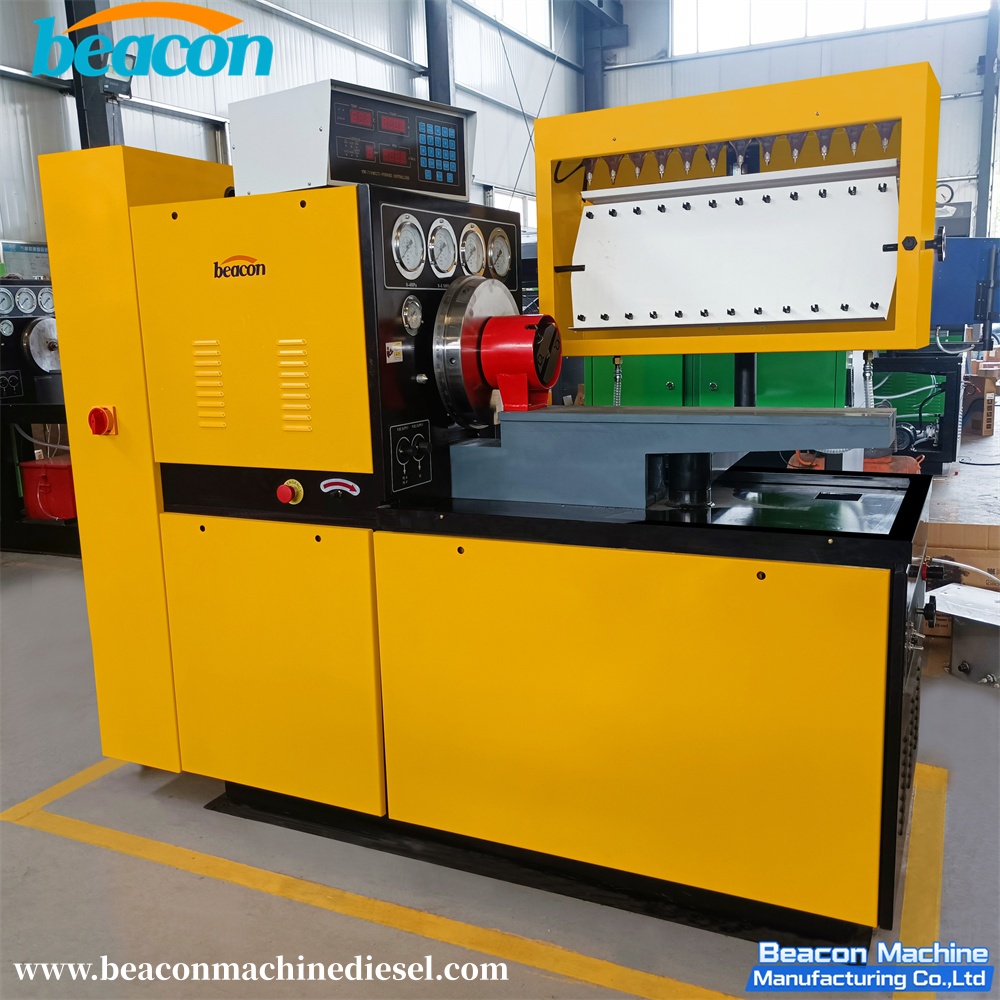

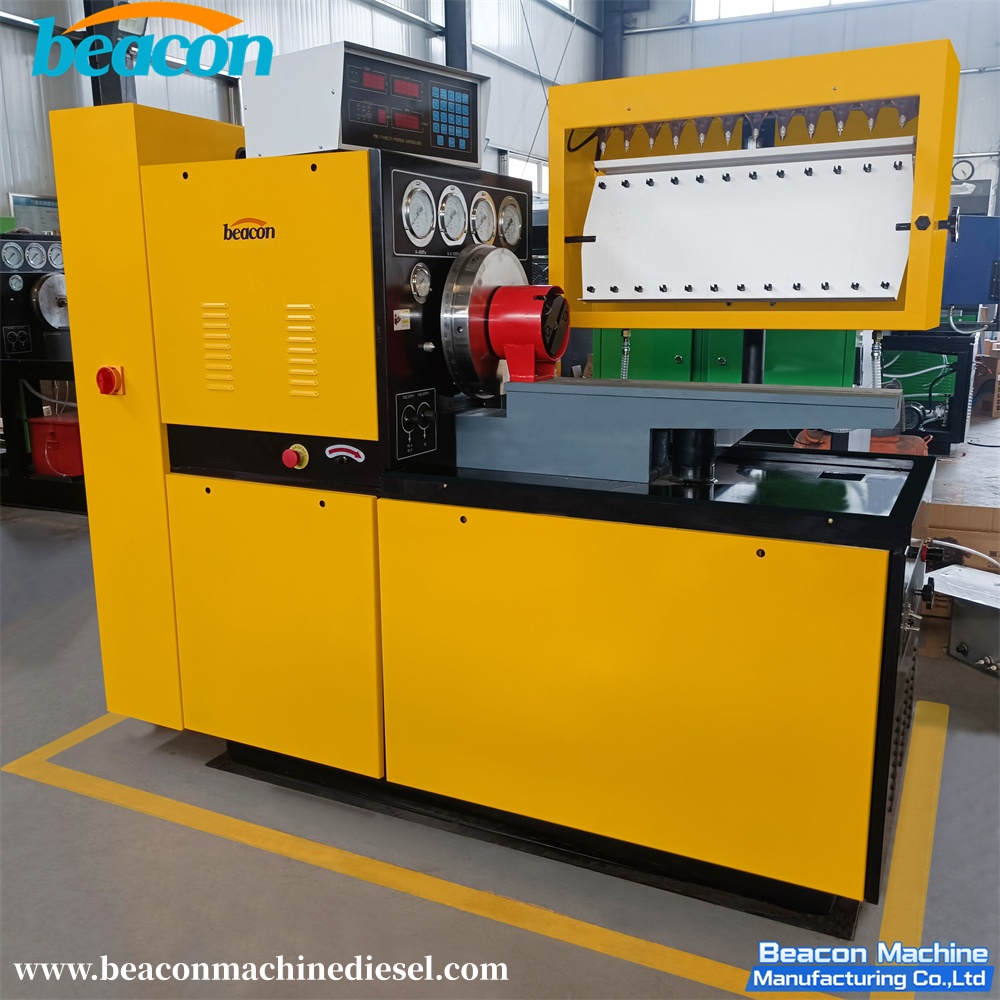

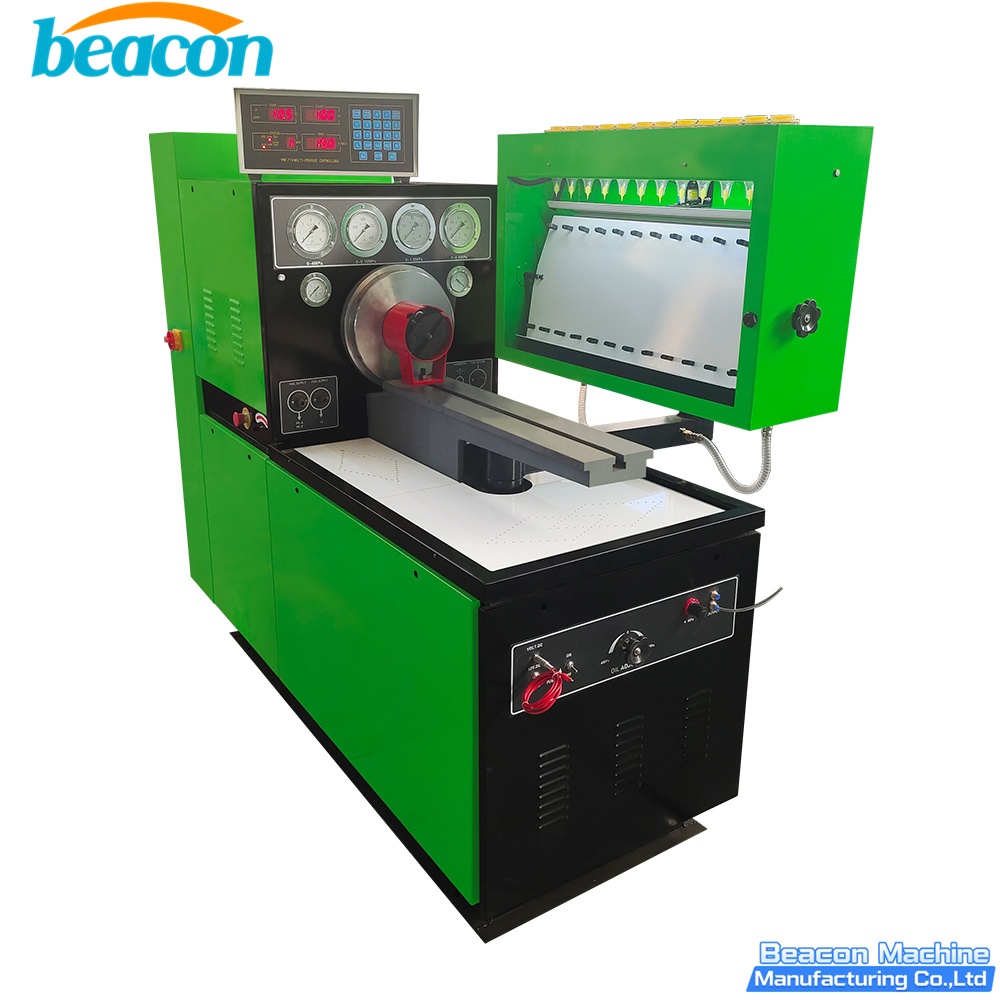

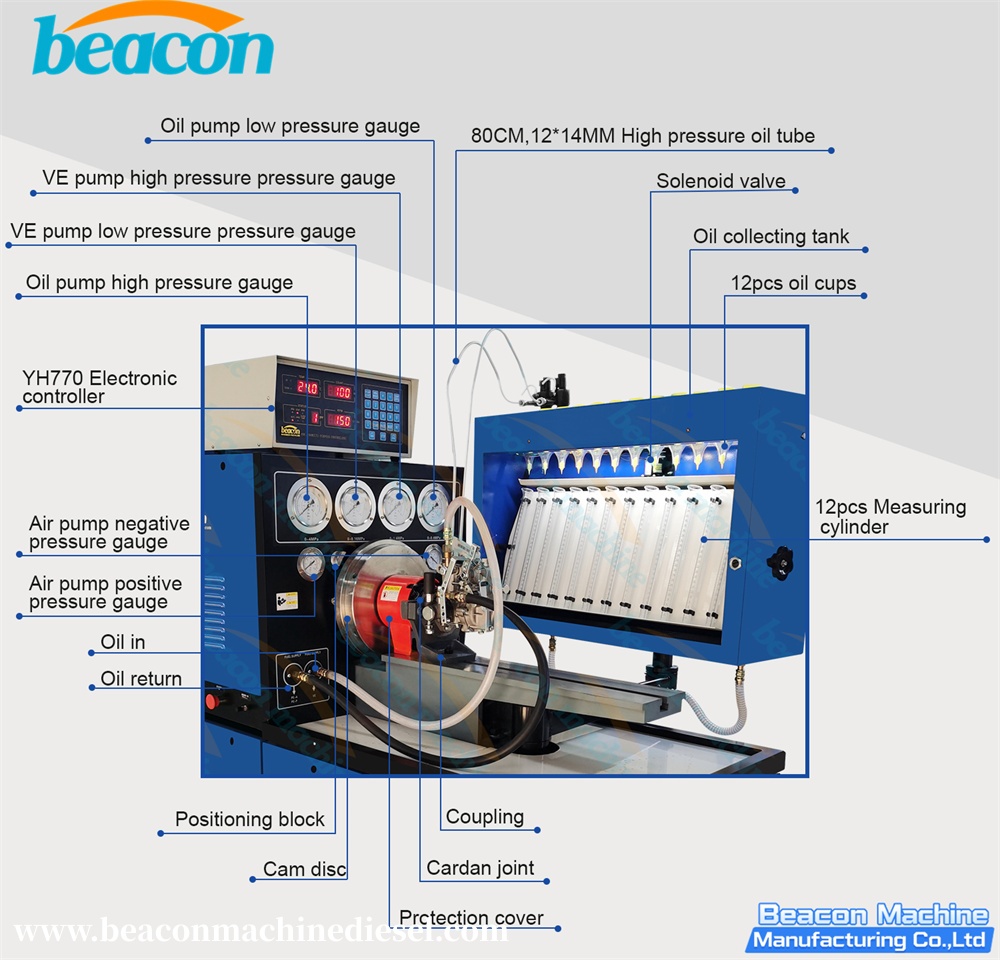

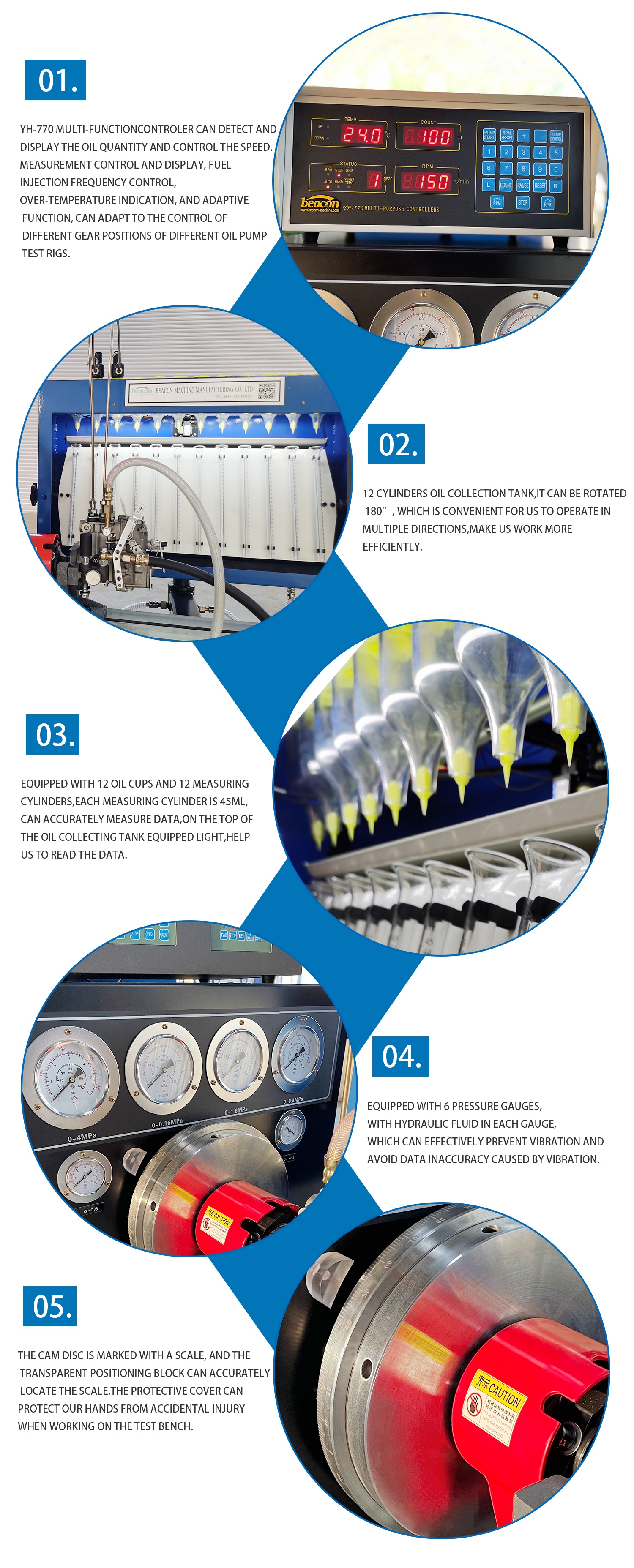

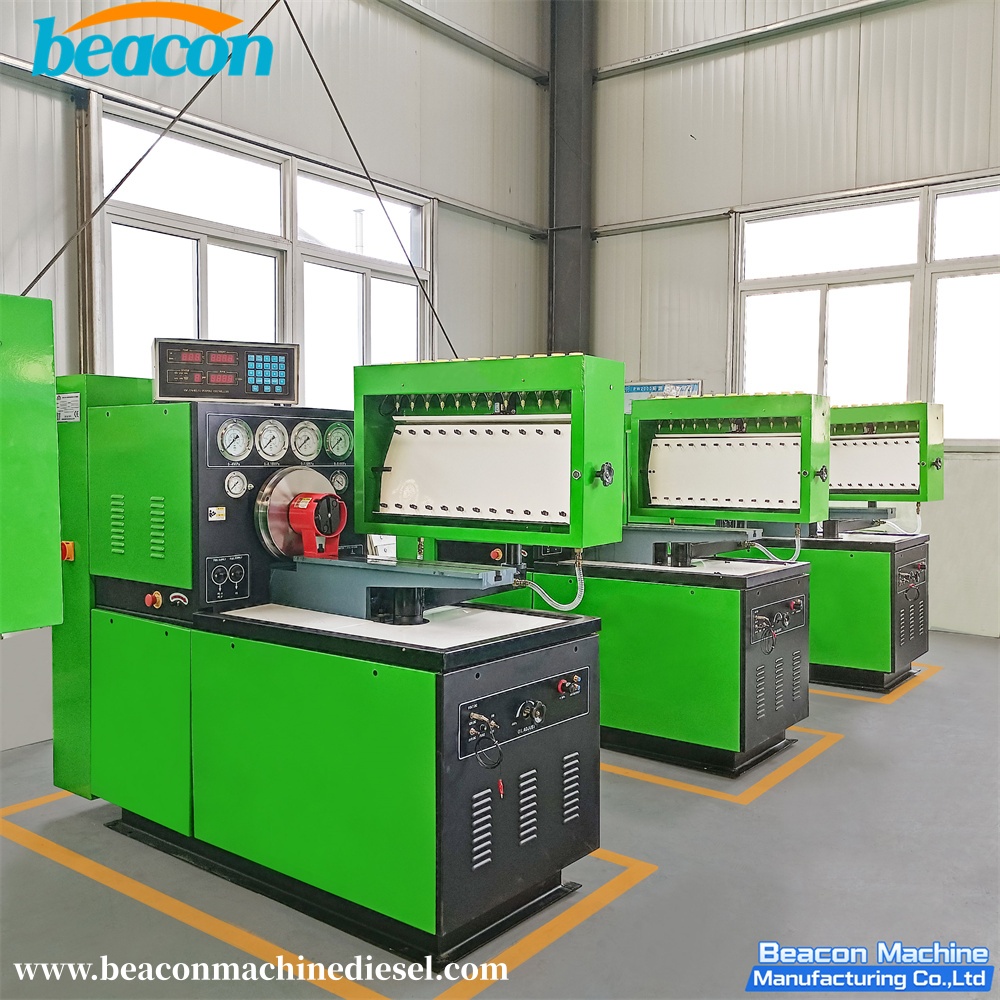

Beacon Machine 12PSB Diesel Fuel Injection Pump Test Bench

2

Main Motor

380V 3 phase 15HP(11KW)

3

No.of Cylinders

12 Cylinders

4

 Tachometer

Electronic Digital 0-9999 R.PM. with the accuracy of +-1R.P.M(Both Sides) 100-1200 Strokes( in steps of 100 strokers

5

Stroke Counter

100-1200 Strokes (in steps of 100 strokers)

6

Fuel Supply

By vane pump, oil supply pressure 6.3Mpa, displacement 10 mL/r, speed 1450R/min

7

Fuel Pump Motors

1.5 H.P 380V 3 phase

8

Pressure Gauge

high pressure: 0~4Mpa

lo w pressure: 0~0.4Mpa

internal pressure: 0~1.6Mpa

air pressure: 0~0.16Mpa

Vacuum :-0.1~0 Mpa

9

Speed Range

20～4000r/min (0, 1, 2, 3～～～9 gears, 10 gears in total) ,And equipped with manual speed adjustment knob

10

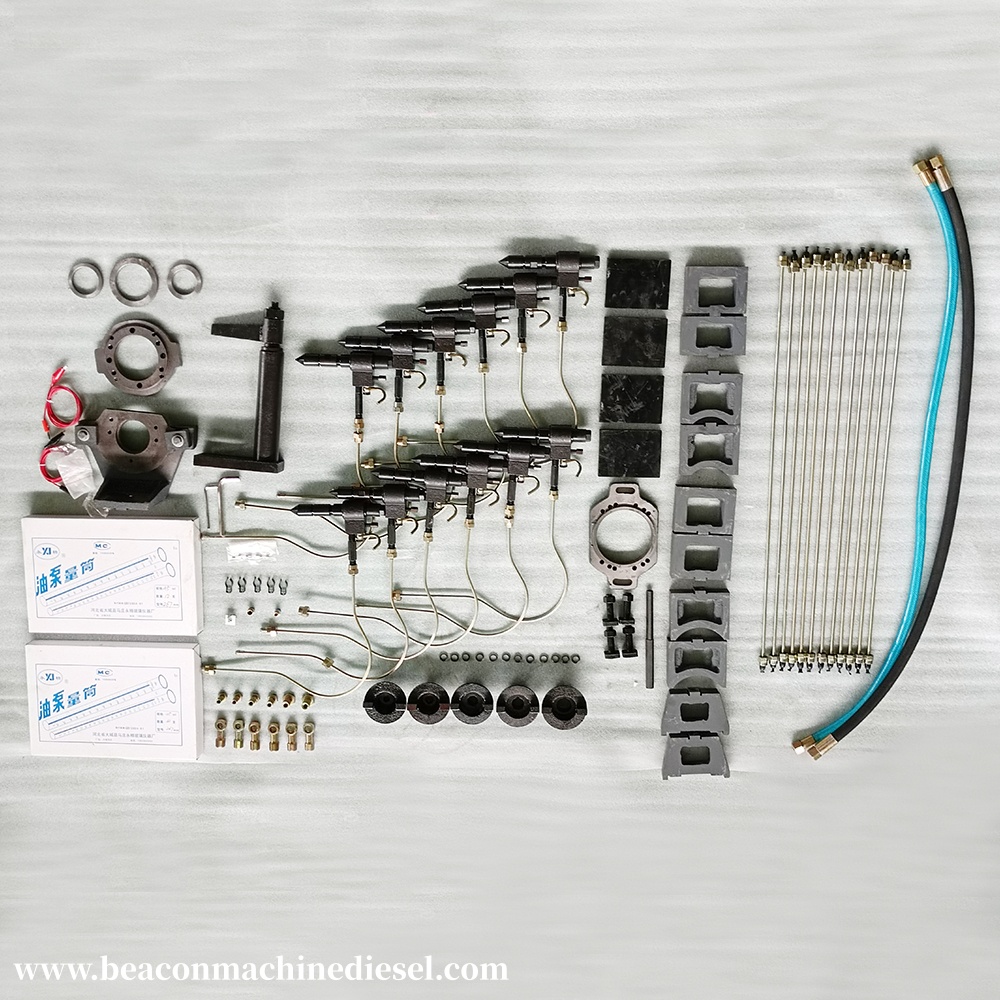

Test Injectors

12 Nos.in 12 cyl Fitted with Calibraling  Nozzle set at a standard pressure.

11

Phasing pressure

Phasing recorded on degree dial

12

Phasing Fuel Tank

  40L

13

Simulator

YH-770

14

Inverter

380V 11KW 3-phase

15

DC power supply

12/24V

16

Glass measuring cylinder

45ML 150ML

17

Temperature control range:

0～99.9℃ (precision 0.5℃)
