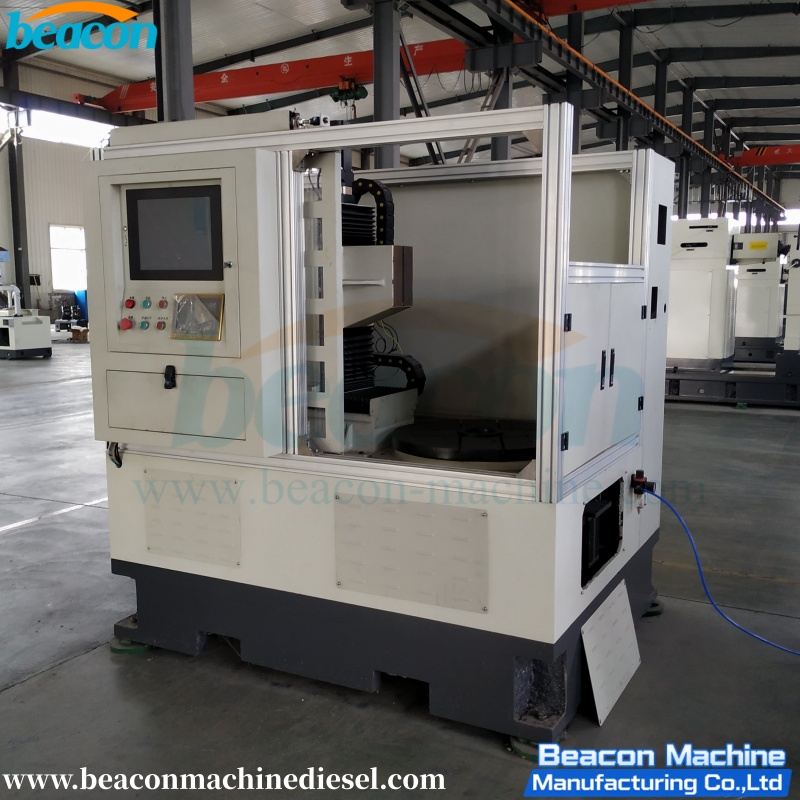

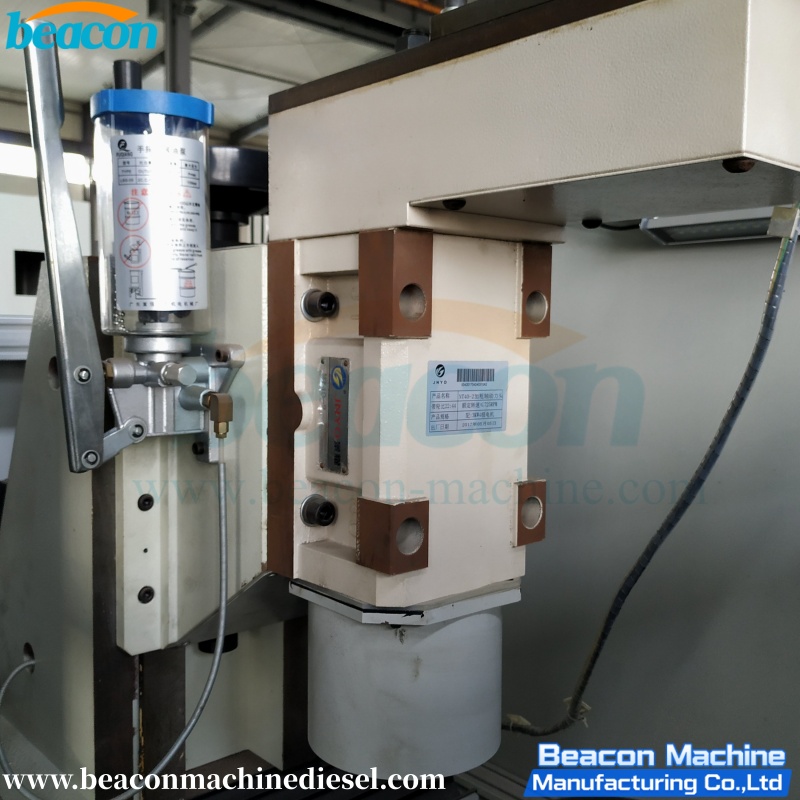

Beacon ABML-50CX Brake Disc Automatic Correction Balance and Deweighting Machine
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details

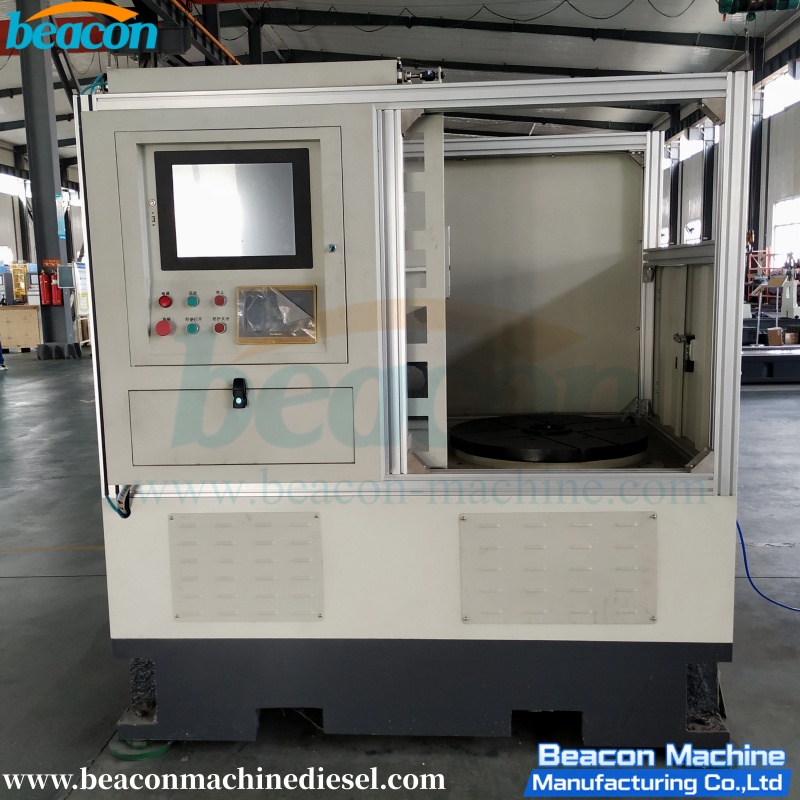

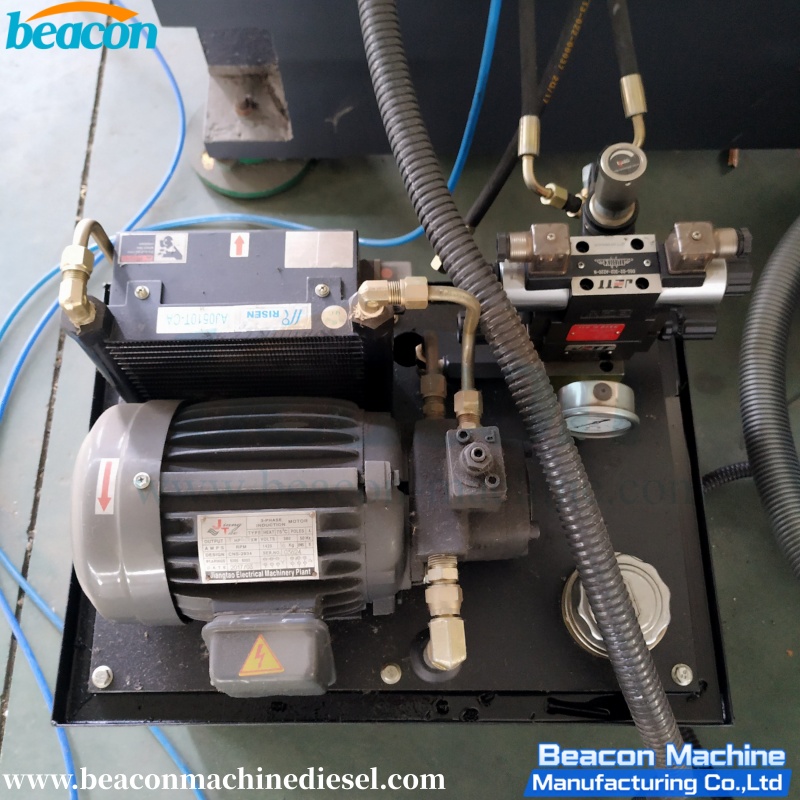

Beacon ABML-50CX Brake Disc Automatic Correction Balance and Deweighting Machine
This automatic balancing machine is mainly used for continuous dynamic balance measurement of various brake discs, milling to remove weight, and dynamic balance retest. It has strong applicability, which can be used for mass production or single-piece inspection.
Beacon ABML-50CX Brake Disc Automatic Correction Balance and Deweighting Machine Advantage
Balance machine spindle: Servo motor + V-ribbed belt drive
Output
balance speed is about: 200-1500 rpm stepless speed regulation
The smallest achievable residual unbalance (emar): 3 gmm/kg
Balanced clamping method: rotary cylinder + tie rod + automatic centering fixture.
Unbalance display: LCD touch screen display. Display content: the size and position of the imbalance.
The display unit is g or g.cm Correction method Residual imbalance display and qualified display Measurement status prompt Eccentricity compensation: any angle or 180° fixture compensation is available. Power head milling: Servo motor drive
balance speed is about: 200-1500 rpm stepless speed regulation
The smallest achievable residual unbalance (emar): 3 gmm/kg
Balanced clamping method: rotary cylinder + tie rod + automatic centering fixture.
Unbalance display: LCD touch screen display. Display content: the size and position of the imbalance.
The display unit is g or g.cm Correction method Residual imbalance display and qualified display Measurement status prompt Eccentricity compensation: any angle or 180° fixture compensation is available. Power head milling: Servo motor drive
parameter
The mass range of the balance workpiece: 1-50kg, the maximum initial unbalanced amount is 2400g.cm
2. Maximum diameter of balance correction workpiece: Φ500mm
3. Diameter of milling workpiece: Ф200-Φ500mm
4. Workpiece positioning hole diameter: Ф80-Ф250mm
5. The maximum height of the workpiece: 180mm
6. Balance speed: 200-1500rpm (servo control)
7. Main motor power: 3kW (servo motor)
8. The power of milling motor is 2.2kW.
9. The maximum stroke of milling radial feed: 300mm
10. Height adjustment range of milling power head: 0-120mm;
11. Specification of milling power head: BT40
12. Weight-removing method: continuous arc high-speed dry milling with three-sided edge disc milling cutter;
13. Maximum diameter of milling cutter: 120mm
14. Unbalance reduction rate: ≥95%; (standard rotor)
15. Weight-removal efficiency: 3000-6000gcm/min; (when the workpiece has a weight-removal diameter of 470mm);
16. Milling cutter form: machine-clamped carbide disc milling cutter;
17. Maximum milling depth: 12mm
18. Milling width: 8-32mm;
19. The maximum angle of milling: 100°
20. Measuring fixture accuracy: upper and lower cone positioning: ±10um;
21. Repeat accuracy: one-time clamping repeat accuracy ≤10g.cm, repeated clamping accuracy: ≤±50g.cm
22. Phase error of unbalance: ≤±2°
23. Working speed of milling cutter head: 150-500 rpm (frequency conversion speed regulation)
24. Measuring beat: 6S-12S
25. Measurement + milling beat: ≤70S-120S/piece
26. Balance accuracy: 3gmm/kg
2. Maximum diameter of balance correction workpiece: Φ500mm
3. Diameter of milling workpiece: Ф200-Φ500mm
4. Workpiece positioning hole diameter: Ф80-Ф250mm
5. The maximum height of the workpiece: 180mm
6. Balance speed: 200-1500rpm (servo control)
7. Main motor power: 3kW (servo motor)
8. The power of milling motor is 2.2kW.
9. The maximum stroke of milling radial feed: 300mm
10. Height adjustment range of milling power head: 0-120mm;
11. Specification of milling power head: BT40
12. Weight-removing method: continuous arc high-speed dry milling with three-sided edge disc milling cutter;
13. Maximum diameter of milling cutter: 120mm
14. Unbalance reduction rate: ≥95%; (standard rotor)
15. Weight-removal efficiency: 3000-6000gcm/min; (when the workpiece has a weight-removal diameter of 470mm);
16. Milling cutter form: machine-clamped carbide disc milling cutter;
17. Maximum milling depth: 12mm
18. Milling width: 8-32mm;
19. The maximum angle of milling: 100°
20. Measuring fixture accuracy: upper and lower cone positioning: ±10um;
21. Repeat accuracy: one-time clamping repeat accuracy ≤10g.cm, repeated clamping accuracy: ≤±50g.cm
22. Phase error of unbalance: ≤±2°
23. Working speed of milling cutter head: 150-500 rpm (frequency conversion speed regulation)
24. Measuring beat: 6S-12S
25. Measurement + milling beat: ≤70S-120S/piece
26. Balance accuracy: 3gmm/kg
