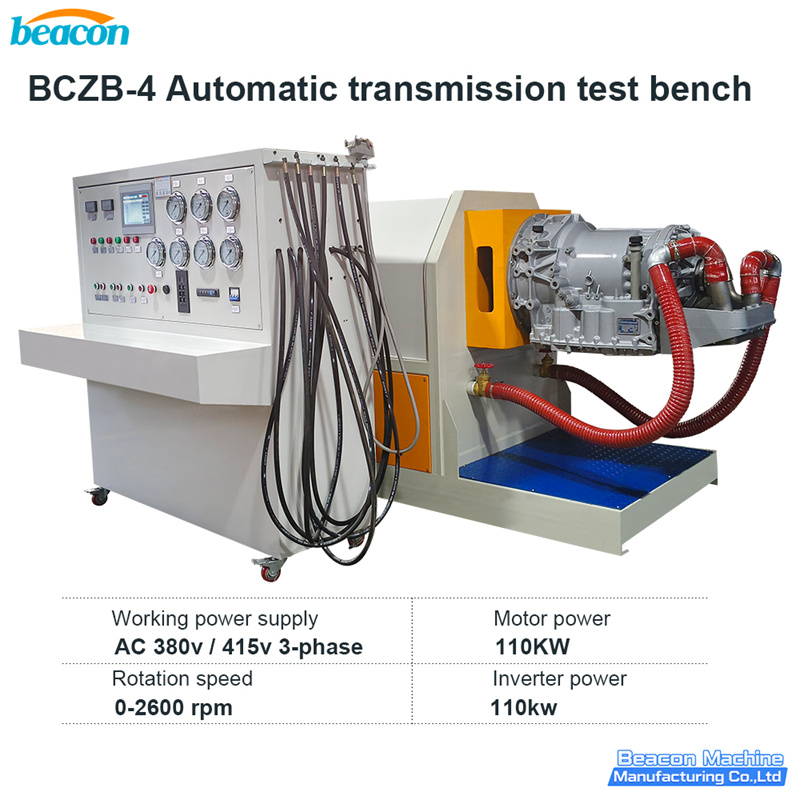

BCZB-4 Industrial Grade Automatic Gearbox Testing Machine

BCZB-4 Industrial Grade Automatic Gearbox Testing Machine
BCZB-4 Industrial Grade Automatic Gearbox Test Bench

High Power Performance: Equipped with a 110KW motor and matching inverter for stable, high-torque testing.

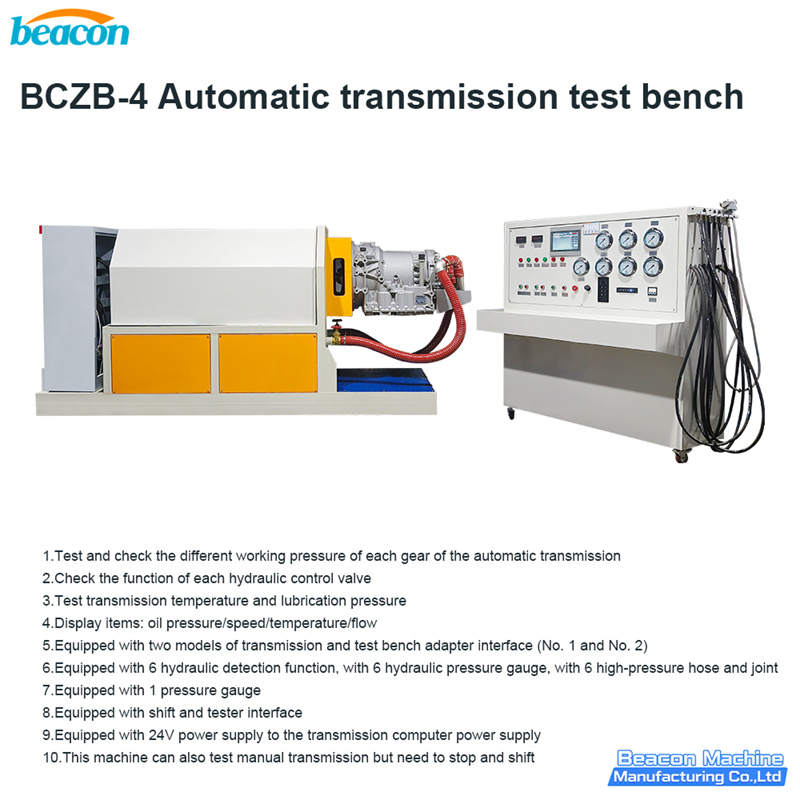

Comprehensive Testing: Evaluates hydraulic control valve functions, gear-specific pressures, and lubrication systems in one setup.

Multi-Channel Monitoring: Features 6 hydraulic detection channels with dedicated gauges, high-pressure hoses, and joints for detailed diagnostics.

Versatile Compatibility: Includes two sets of adapter interfaces (No. 1 and No. 2) to accommodate various transmission models.

Real-Time Data Display: Provides clear monitoring of critical metrics including oil pressure, rotation speed, temperature, and flow rate.

Integrated Power Supply: Built-in 24V power source to support the transmission's onboard computer during testing.

Support Customize: We can Customize function/coupling/and all details based on your gearbox
