BCQZ-2A 7.5KW Hydraulic Starter and Alternator Test Bench

 BCQZ-2A 7.5KW Hydraulic Starter and Alternator Test Bench

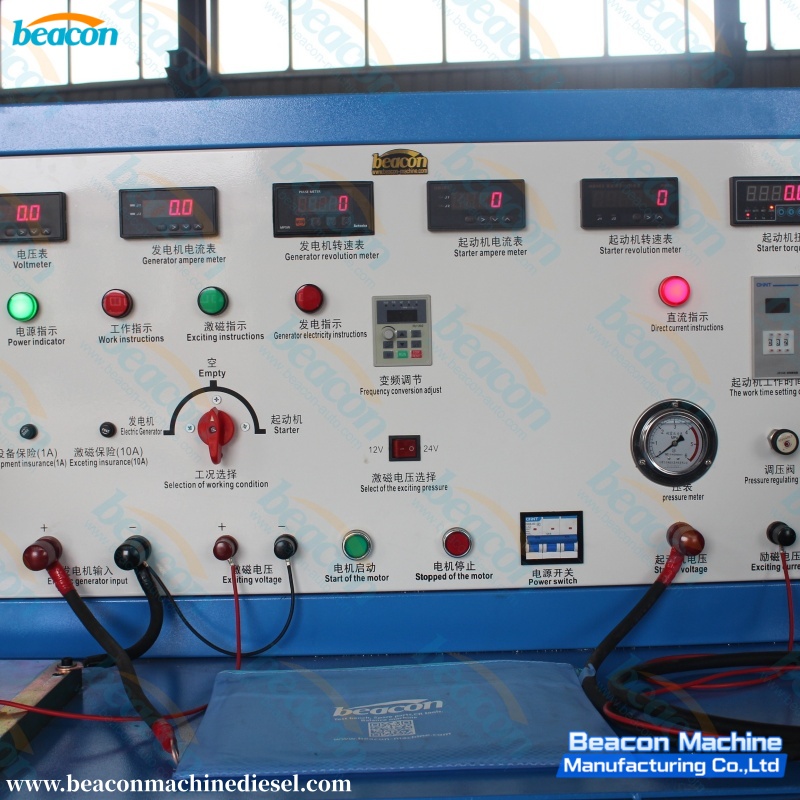

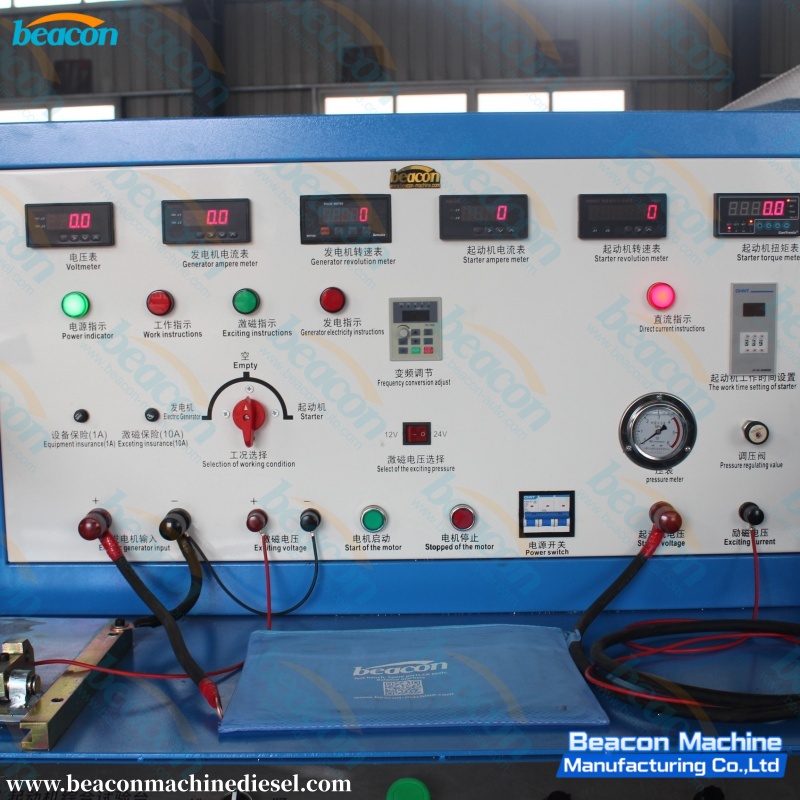

    BCQZ-2A is a heavy-duty Automotive Starter and Alternator Test Bench designed for professional workshops. It is engineered to test the performance of 12V and 24V generators and starters under varying load conditions. Unlike basic models, the BCQZ-2A features a hydraulic loading system to accurately measure starter torque (up to 200N.m) and braking performance. It uses a high-power electronic load for alternator testing, ensuring stable and precise readings displayed on clear digital meters.

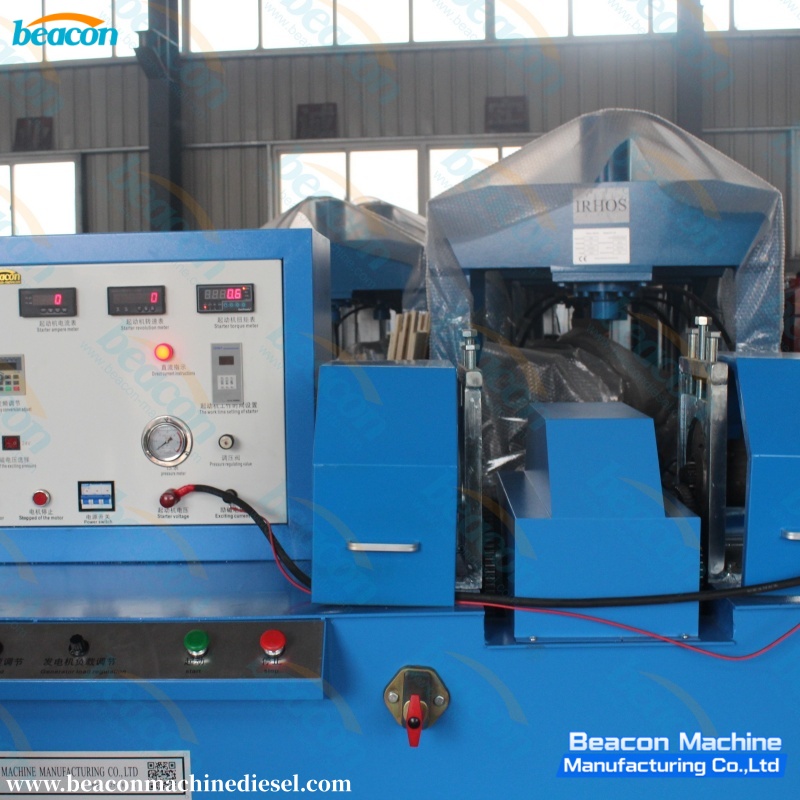

   Comprehensive Torque Testing: Equipped with a hydraulic loading device to test starter braking torque, essential for diagnosing heavy-duty starter motors. High Power Capacity: Features a 7.5KW motor and matching inverter, capable of handling high-current testing (up to 2000A for starters). Dual Loading Systems: Combines electronic loading for alternators and hydraulic loading for starters for maximum versatility. Precision Control: Variable speed control (0-8000 RPM) allows for simulating various engine operating conditions.
