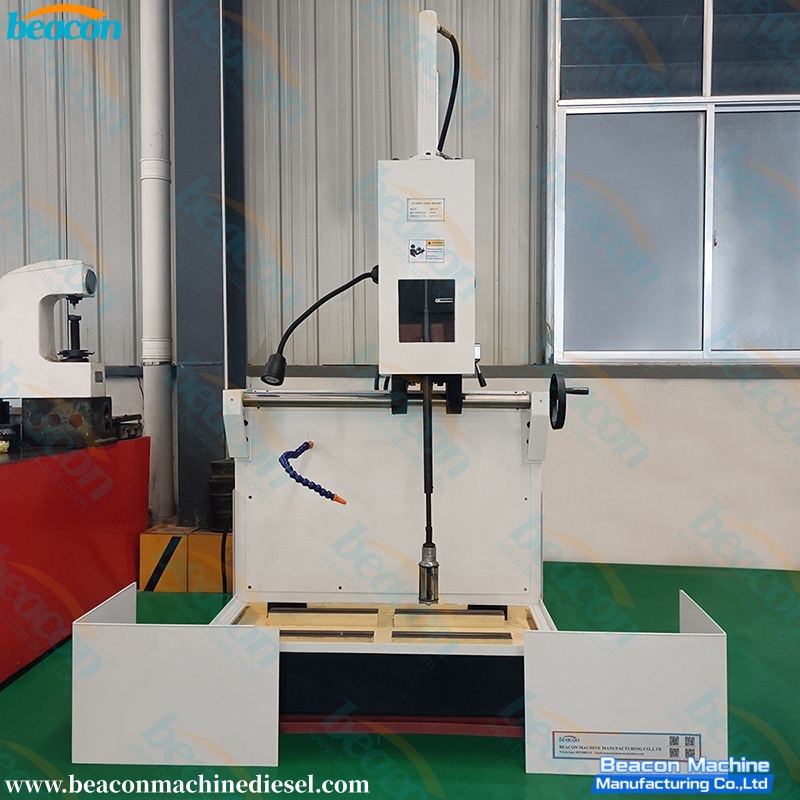

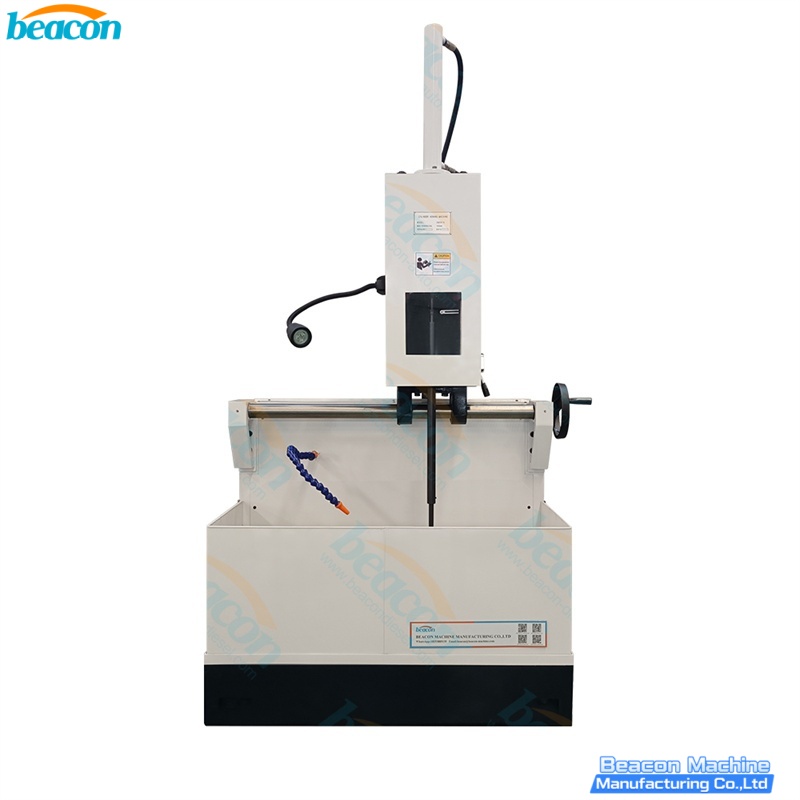

3M9816 Engine Steel Vertical Cylinder Boring and Honing Machine

3M9816 Engine Steel Vertical Cylinder Boring and Honing Machine

Product Introduction
The 3M9816 Engine Cylinder Honing Machine is a specialized vertical honing machine designed for the precision reconditioning of internal combustion engines. It is primarily used for honing cylinder holes and cylinder liner inner holes in engines of various vehicles and tractors. Beyond automotive applications, the 3M9816 is also capable of performing fine honing on the inner holes of other mechanical parts, ensuring superior surface finish and accurate geometric parameters.

3M9816 Engine Cylinder Honing Machine Advantage

Hydraulic Control: Features a hydraulic-driven reciprocating mechanism (up/down movement) with infinitely variable speed control, allowing operators to achieve the perfect cross-hatch pattern for oil retention.
Reliable Transmission: The spindle rotation utilizes a mechanical transmission system that is safe, reliable, and provides consistent torque during the honing process.
Versatile Processing Range: Capable of handling honing diameters from 45mm to 160mm with a depth of up to 320mm, covering a wide range of passenger car and agricultural machinery engines.
Precision Finishing: Designed to correct taper and ovality in worn cylinders, restoring them to factory specifications.
Robust Construction: With a net weight of 940kg, the machine offers high stability and vibration dampening, which is crucial for achieving high-precision results.
