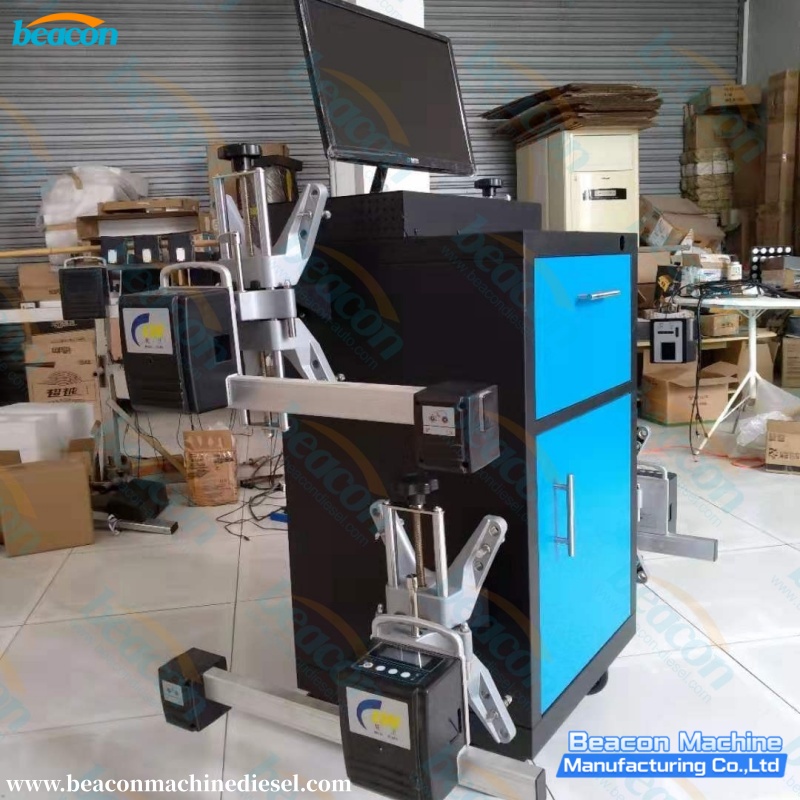

3D Four Wheels Alignment Machine for Auto Repair Garage

3D Four Wheels Alignment Machine for Auto Repair

Garage Principles
The corresponding datum plane and driving central line for calculating are constructed by the centre of four wheels got by the four target disks. Then according to the position of each disk in the plane and central line, the parameters of wheel alignment can be figured out. Therefore, measurement deviation due to the non-horizontal vehicle plane and lifting platform during the measurement can be avoided.

Product Features
1 Classical Structure Design
Brand new camera beam design makes the entire structure of the alignment system rational and grand. Versatile structures are optional. Wheel Alignment Machine Corghi
2 Golden Eyes
Superior lens can adapt to strict outside environment and filtrate the stray light with wider angle to capture and read the target disks appropriately. Wheel Alignment Machine Corghi
3 High-resolution
Camera With two imported high-resolution cameras and the fast and stable central computer system, transmission of the picture can reach 15 frames per second to make the measuring result be displayed continually. Wheel Alignment Machine Corghi
4 Target Disk
Target disks are made of special materials which will not be broken even falling from 10 meters high. The reflection materials with superior engineering film can last longer working life.
5 Voice-over System:
Advanced automotive voice-over will guide every step of wheel aligning operation.
6 Body Dimension:
Unique 3D alignment body measurement system can measure chassis parameters, such as wheelbase, track width and axle offset.
7 Caster/ S.A.I. Measurement:
Simultaneous measurement of caster, S.A.I. and inclusive angle can diagnose the acceleration off-tracking, the weight of steering wheel boosting and other factors.
8 Four Wheels Toe/Camber Display:
The data of toe and camber for four wheels can be displayed simultaneous on the screen to provide effective reference.
9 Drive-on Camera:
Special mirror function of the PC camera can guide the best parking position on the platform effectively.
10 Controllable Lifting Pole:
In the process of operating, the pole can be adjusted up to 2.1 meters according to the height of vehicle at any time with a remote.
