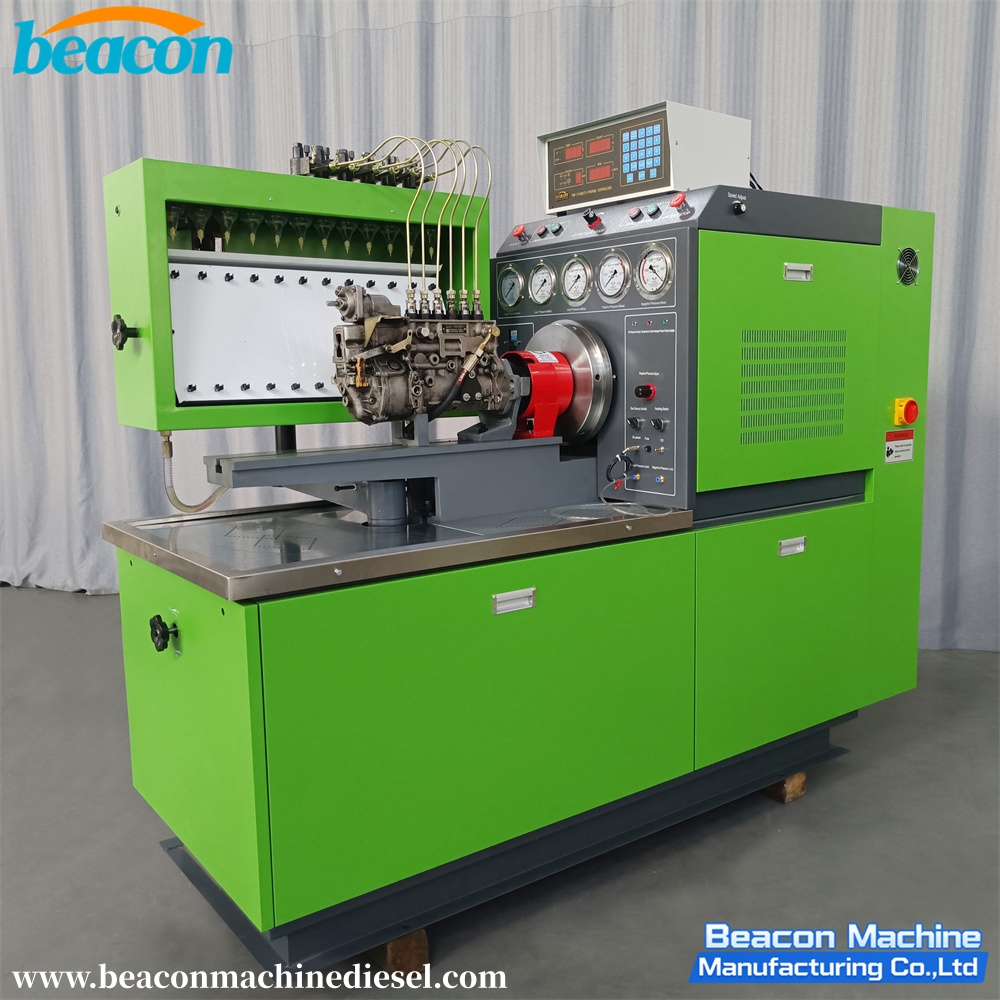

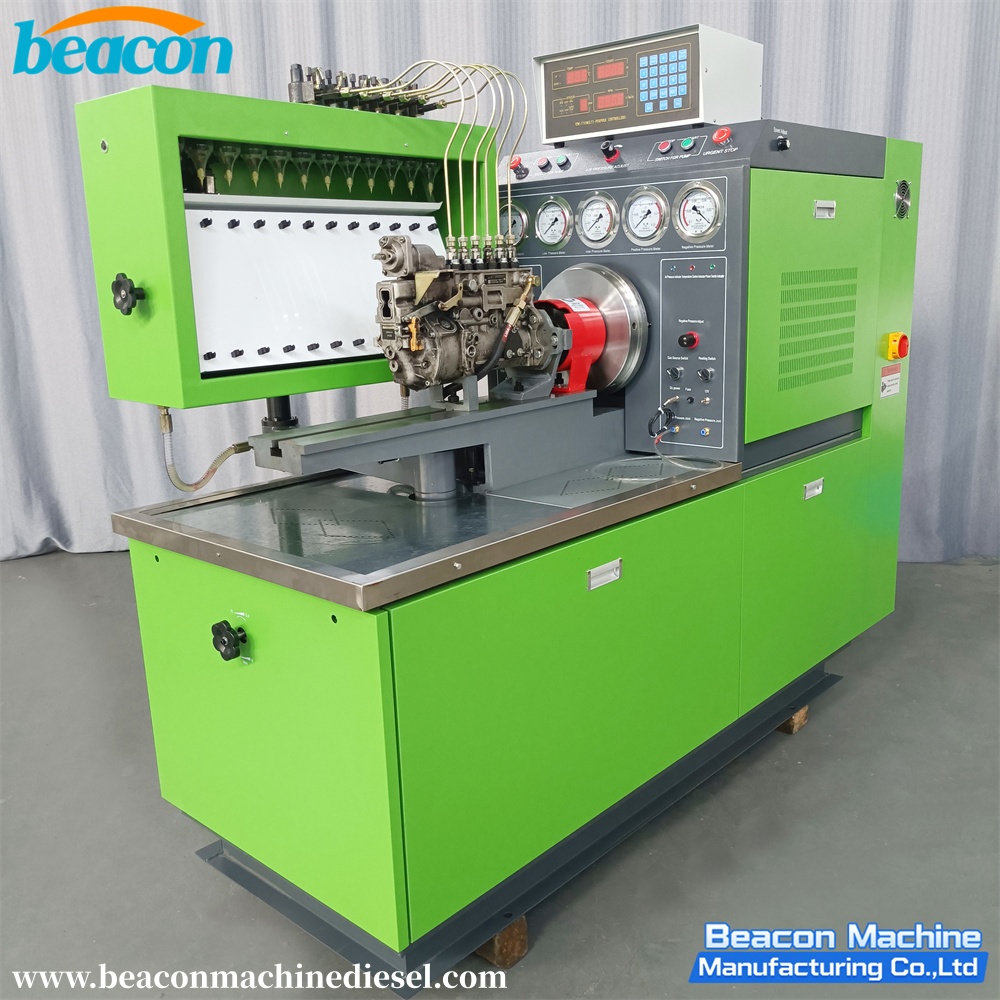

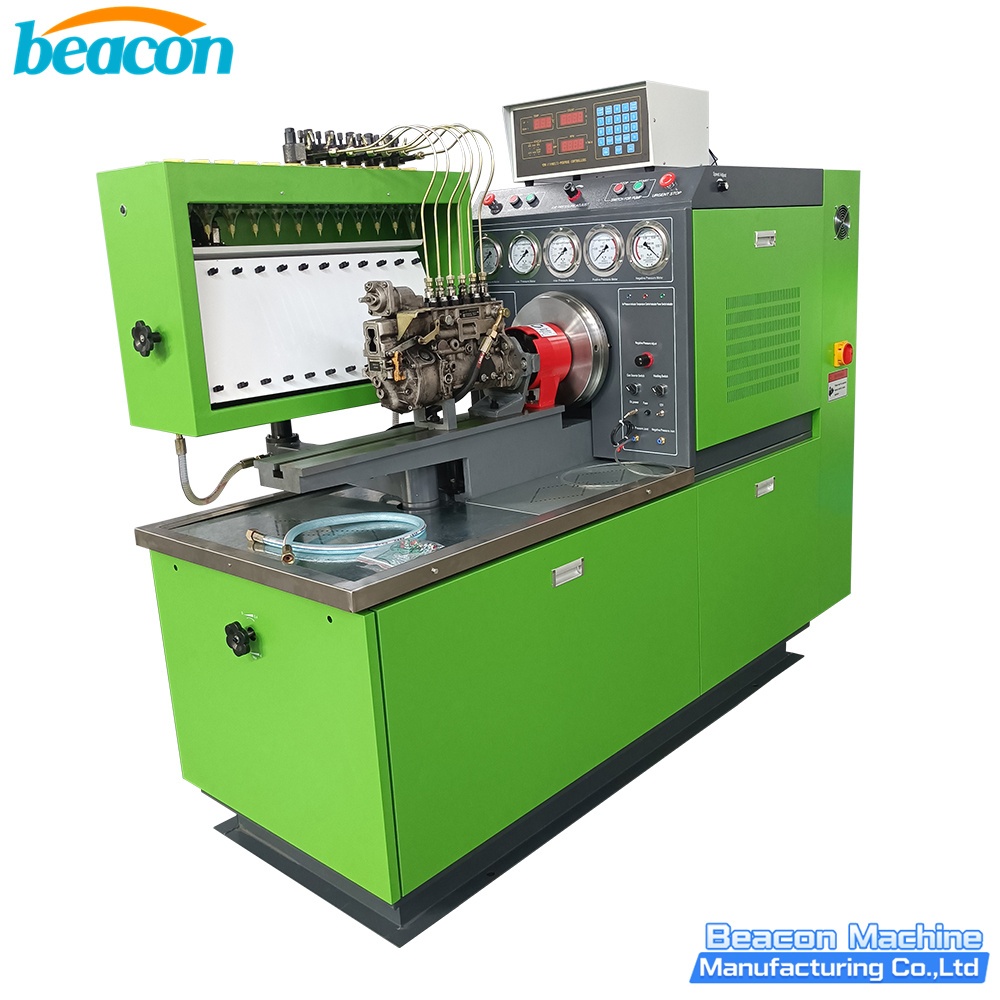

12PSB-S EURO II 12 Cylinders Manual Fuel Injection Pump test Machine

• The 12PSB-S Diesel Fuel Injection Pump Test Bench is a professional calibration device designed for Euro II mechanical pumps. Engineered for precision and durability, this test bench adopts a variable frequency speed regulation system, ensuring stable performance during high-intensity testing.

  Key Functions:

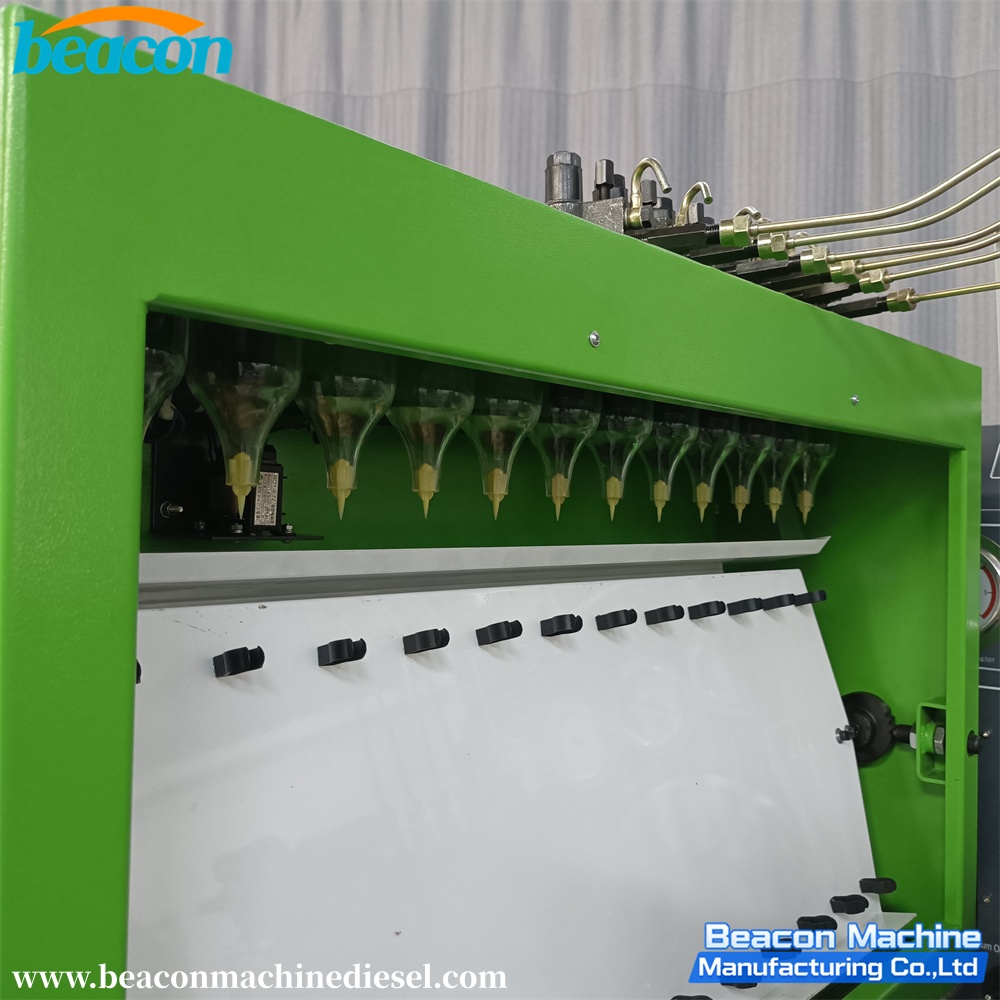

1. Precise Measurement: Measures each cylinder's delivery at any speed, including test points and interval angles of oil supply.

2. Governor & Pump Testing: Expertly checks and adjusts mechanical governors and distributor pumps.

3. VE Pump Specialization: capable of testing electromagnetic valves (12V/24V), measuring internal pressure, and checking oil return flow (equipped with specialized flow meter).

4. Performance Tuning: Experiment and adjustment of supercharging and compensatory behaviors.

5. Sealing & Integrity: Performs rigorous sealing tests on the injection pump body.

6. Advanced Capabilities: Includes auto-sucking oil supply for self-priming verification, stroke travel checking (optional), and advance angle verification (optional).

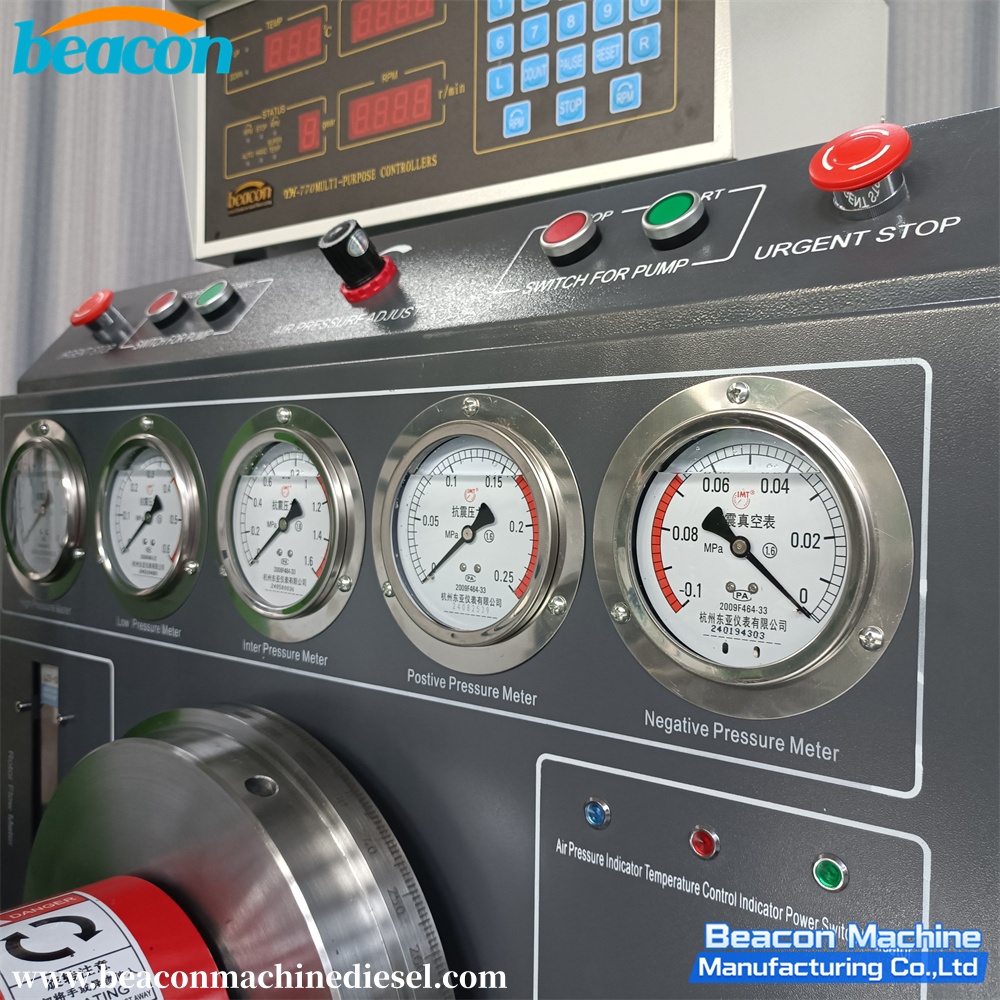

rgonomic Design: Features a Slope Control Panel , providing the operator with a better viewing angle and easier control compared to flat panels. Enhanced Cooling System: Equipped with Forced Cooling (Refrigerant: R22) to maintain optimal oil temperature during long operation hours, ensuring measurement accuracy. Convenient Storage: Designed with a built-in Tool Drawer , allowing technicians to organize and access calibration tools efficiently. Advanced VE Pump Testing: Comes with an added VE pump return oil flow meter (Yellow Box) for precise distributor pump diagnostics. Durability: Features a robust Oil Lubrication system and a gas pump with gas storage function to ensure the longevity of the machine and the pumps being tested. Versatility: Capable of handling complex adjustments like Gear Rod Travel and Advance Angle device testing.
