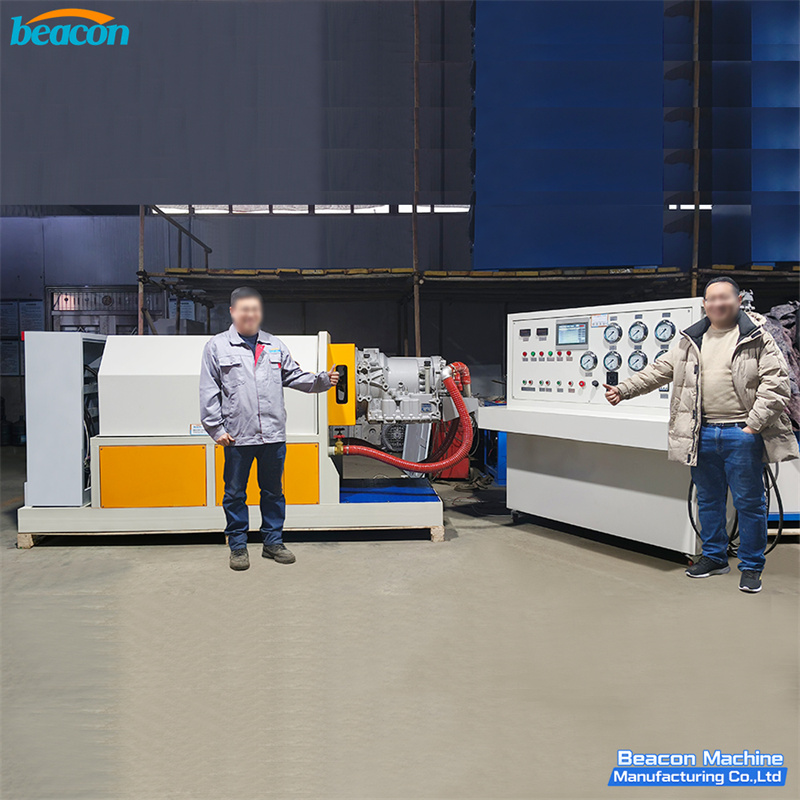

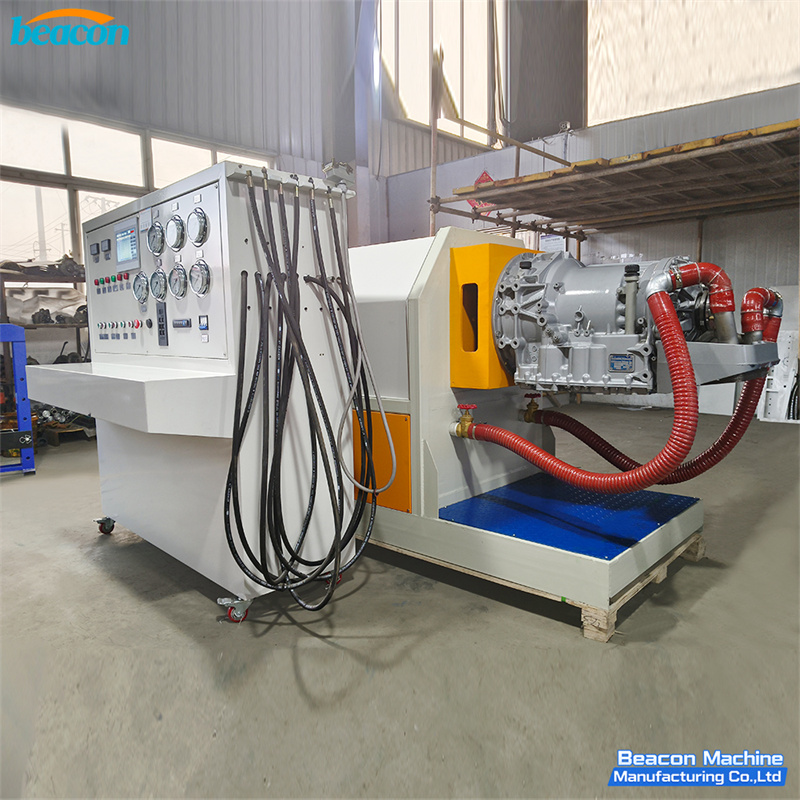

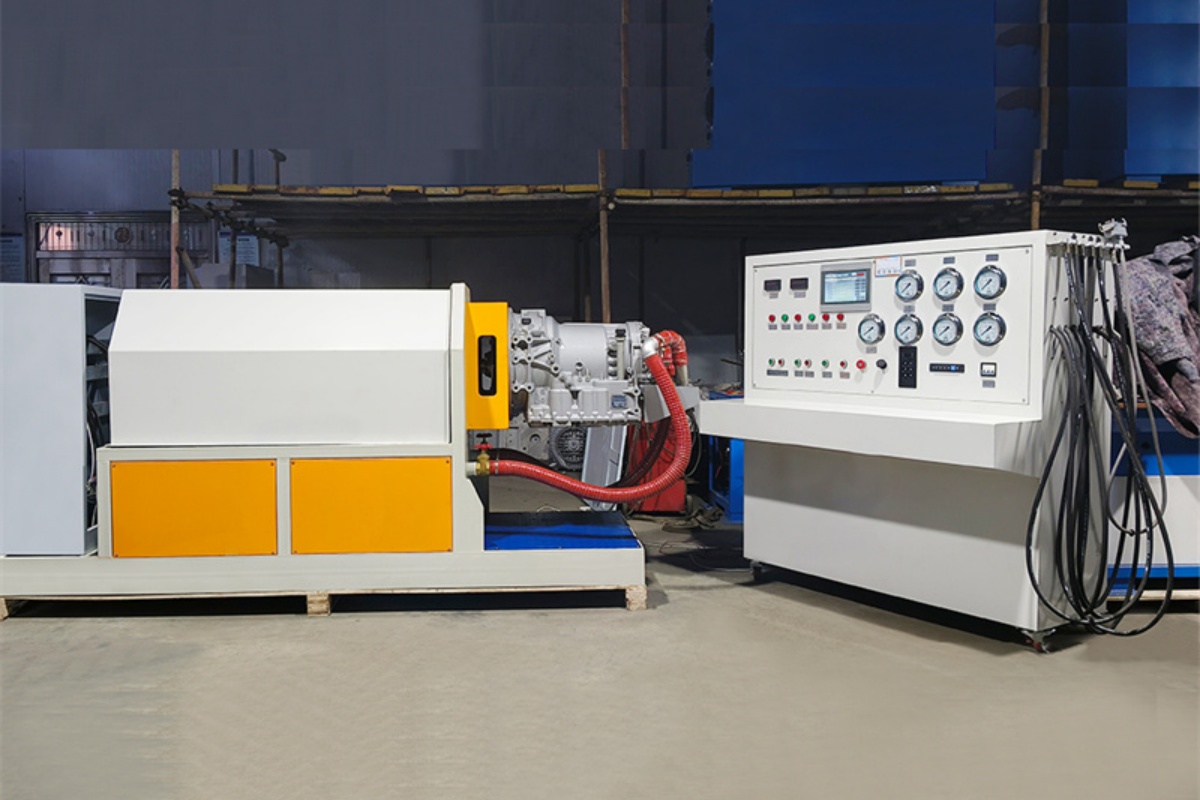

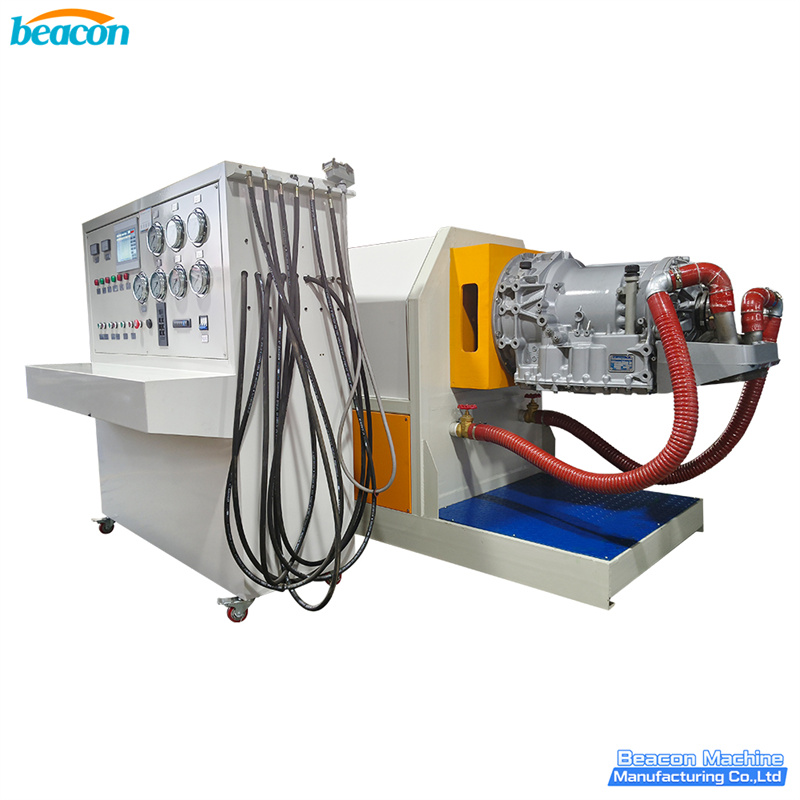

BCZB-4 Automatic Transmission Test Bench Technical Specification

BCZB-4 Automatic Transmission Test Bench Technical Specification

1. Equipment Overview

Model: BCZB-4 Automatic Transmission Test BenchManufacturer: Beacon Machine Manufacturing Co.,LtdCertifications: ISO, CE, EPR, SGS, complying with international industrial equipment safety and quality standards.Core Application: Full-automatic inspection for all types of automotive automatic transmissions. It also supports manual transmission testing, widely used for performance verification in transmission repair shops and remanufacturing factories.

2. Core Test Functions

1. Measure and inspect the operating pressure of each gear of automatic transmissions.

2. Verify the working performance of each hydraulic control valve inside transmissions.

3. Test transmission operating temperature and internal lubrication pressure.

4. Real-time display of key parameters: oil pressure, rotating speed, oil temperature, and oil flow rate.

5. Equipped with two sets of transmission adapter interfaces (No.1 & No.2), compatible with multiple passenger and commercial vehicle automatic transmissions.

6. 6 independent hydraulic detection channels, including 6 precision hydraulic pressure gauges, 6 high-pressure hoses and quick connectors for simultaneous multi-channel pressure testing.

7. Extra general auxiliary pressure gauge for non-standard transmission models.

8. Dedicated shifting and tester communication interface.

9. Built-in 24V power supply for powering transmission ECU (on-board computer).

10. Compatible with manual transmission testing; manual stop-and-shift operation is required when testing manual gearboxes.

3. Technical Parameters

• Working Power Supply: AC 380V / 415V 3-phase

• Motor Power: 110KW

• Rotating Speed Range: 0–2600 rpm

• Inverter Power: 110KW
